Transfer Case Control Component Views
WARNING: This page is about a different variant/trim than selected.

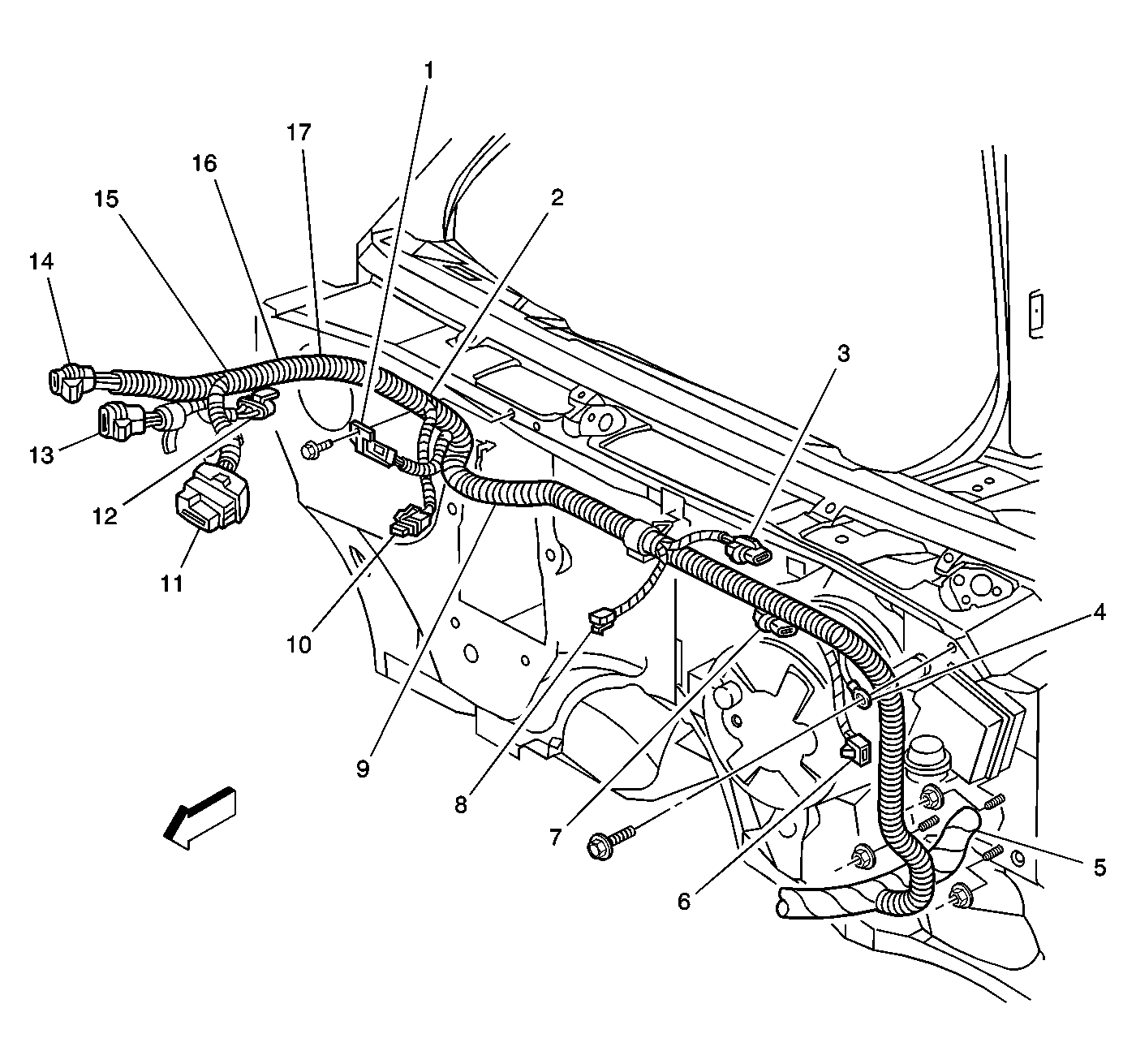

| Callout | Component Name |
|---|---|
| 1 | Blower Motor Relay Connector |
| 2 | Body Harness |
| 3 | Windshield Wiper Motor Connector |
| 4 | G117 |
| 5 | P100 |
| 6 | Cruise Control Module (CCM) Connector |
| 7 | Underhood Lamp Connector |
| 8 | Front Axle Vacuum Solenoid Connector |
| 9 | S138 |
| 10 | Blower Motor Resistor Connector |
| 11 | Not Used |
| 12 | Blower Motor Connector (C42/C60), Blower Motor Control Module (C68) |
| 13 | C101 (2.2 L) |
| 14 | C101 (4.3 L) |
| 15 | S121 |
| 16 | S113 |
| 17 | S118 |

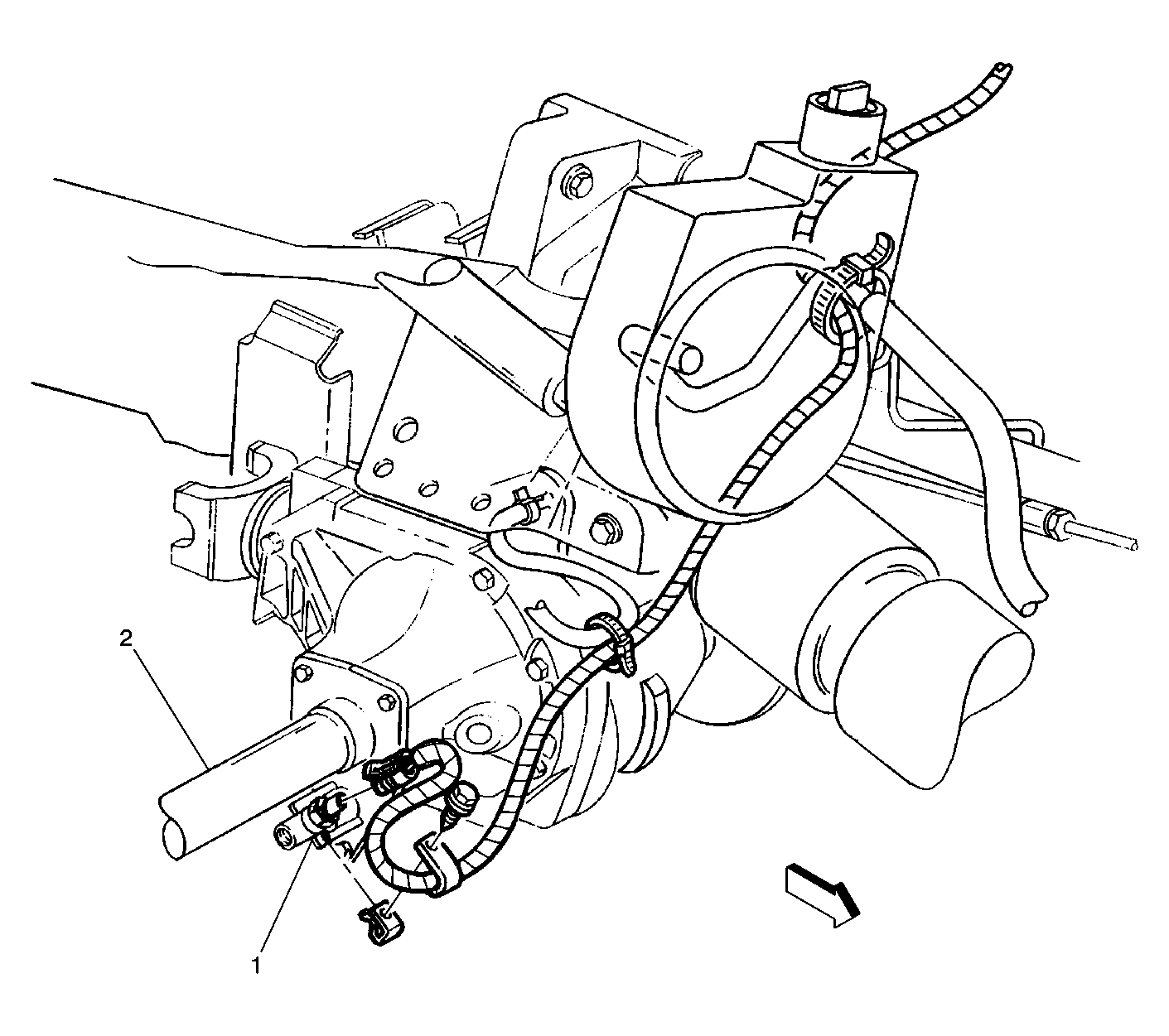

| Callout | Component Name |
|---|---|
| 1 | Front Axle Indicator Switch |
| 2 | Front Axle |

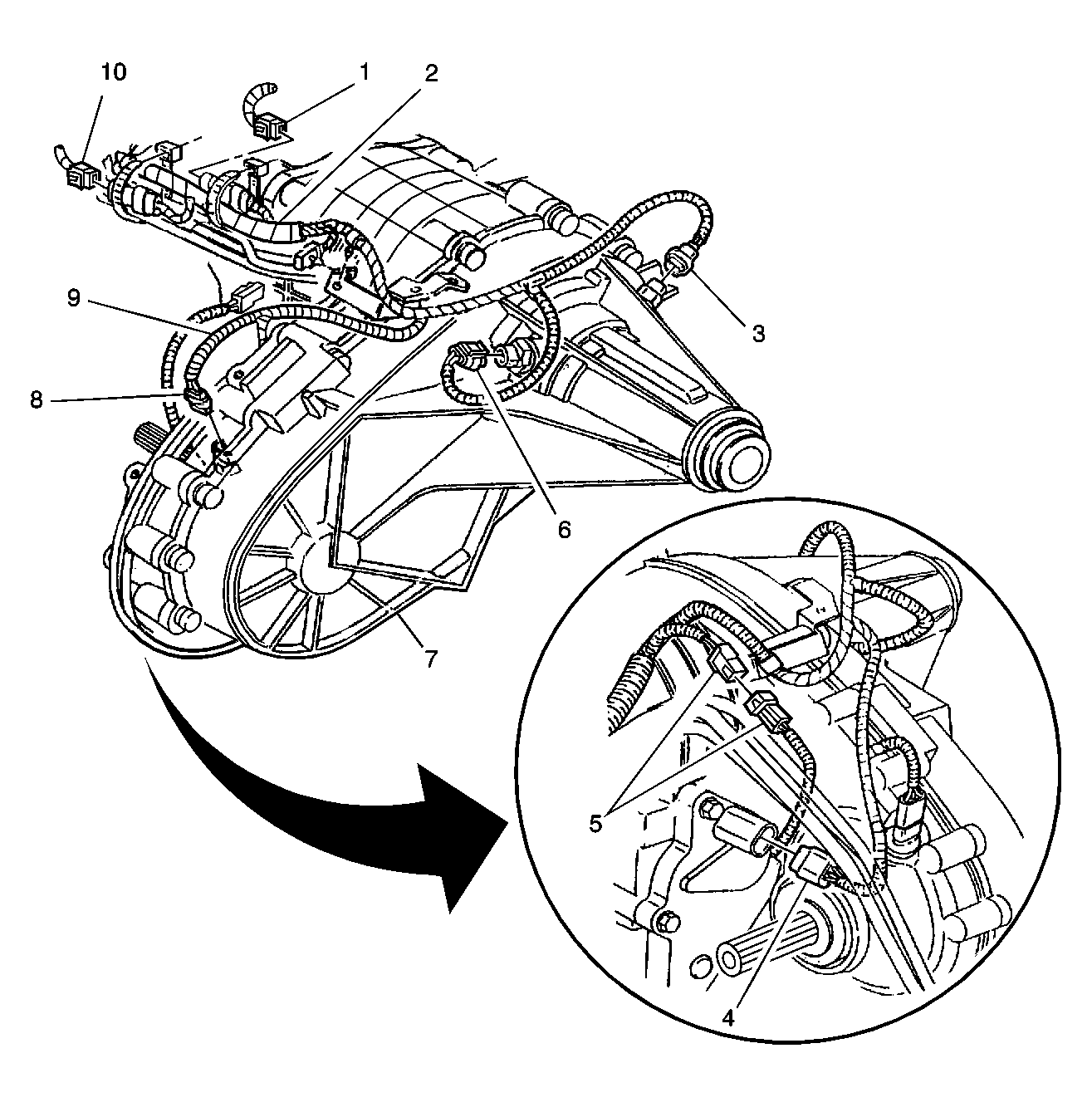

| Callout | Component Name |
|---|---|
| 1 | C116, C2 (M50 Only) |
| 2 | Active Transfer Case Harness |
| 3 | Vehicle Speed Sensor (VSS) |
| 4 | Transfer Case Encoder Motor, C2 |
| 5 | Transfer Case Encoder Motor, C1 |
| 6 | Propshaft Speed Sensor - Rear |
| 7 | Transfer Case (NP8) |
| 8 | Propshaft Speed Sensor - Front |
| 9 | S134 |
| 10 | C116, C2 (M30 Only) |

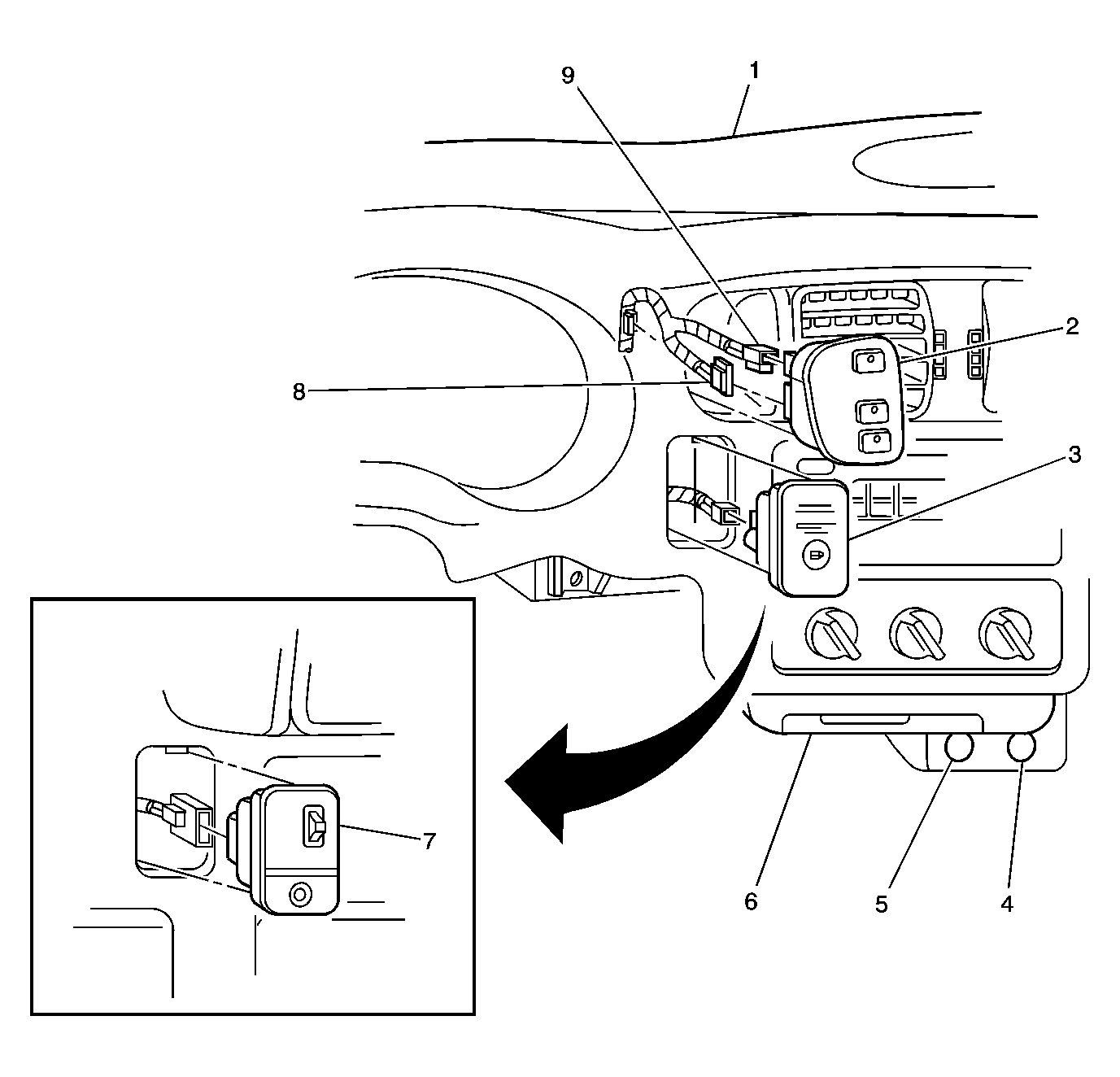

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel (I/P) |
| 2 | Transfer Case Shift Control Switch |
| 3 | Inflatable Restraint I/P Module Switch (Pickup Only) |
| 4 | Auxiliary Power Outlet - Right |
| 5 | Auxiliary Power Outlet - Left |
| 6 | I/P Tray, Ashtray and Cigar Lighter |
| 7 | Rear Wiper/Washer Switch and Endgate/Liftglass Window Release Switch (Utility) |
| 8 | Transfer Case Shift Control Switch C2 |
| 9 | Transfer Case Shift Control Switch C1 |

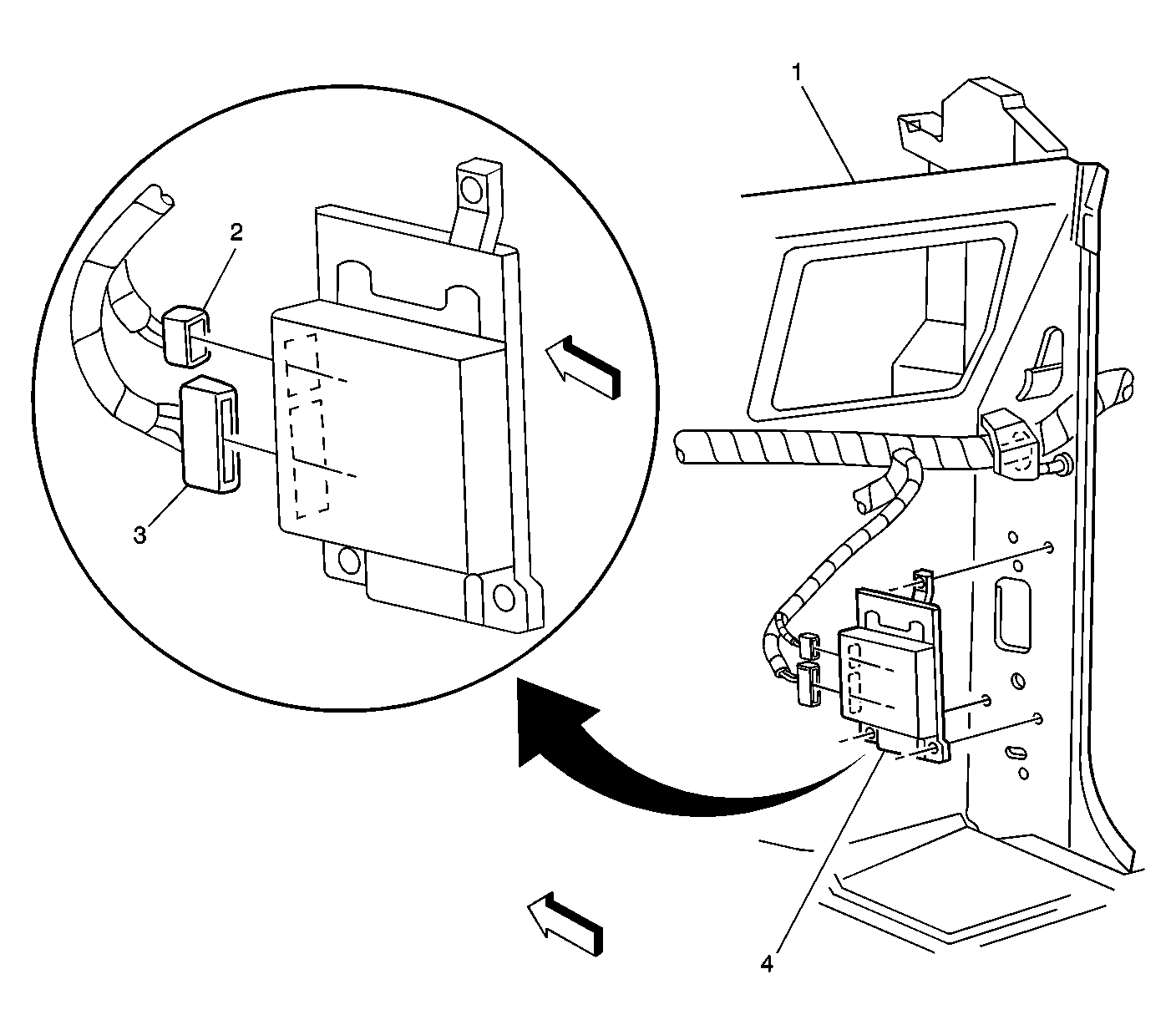

| Callout | Component Name |
|---|---|
| 1 | Right Side Cowl Panel |
| 2 | Transfer Case Shift Control Module Connector (Not Used on Selectable) |
| 3 | Transfer Case Shift Control Module Connector |
| 4 | Transfer Case Shift Control Module |
