Special Tools

Special Tools and Equipment

Illustration	Tool Number/Description

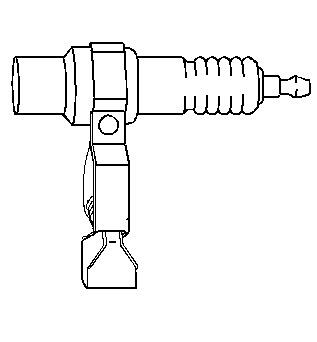

Courtesy of GENERAL MOTORS CORP.	J 26792 Spark Plug Tester

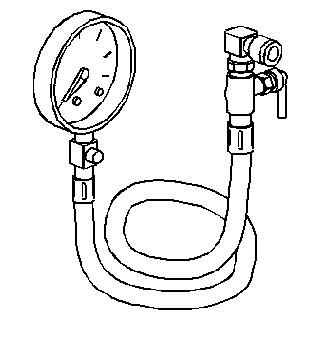

Courtesy of GENERAL MOTORS CORP.	J 34730-1A Fuel Pressure Gage
Courtesy of GENERAL MOTORS CORP.	J 34730-375 Harness Test Lamp

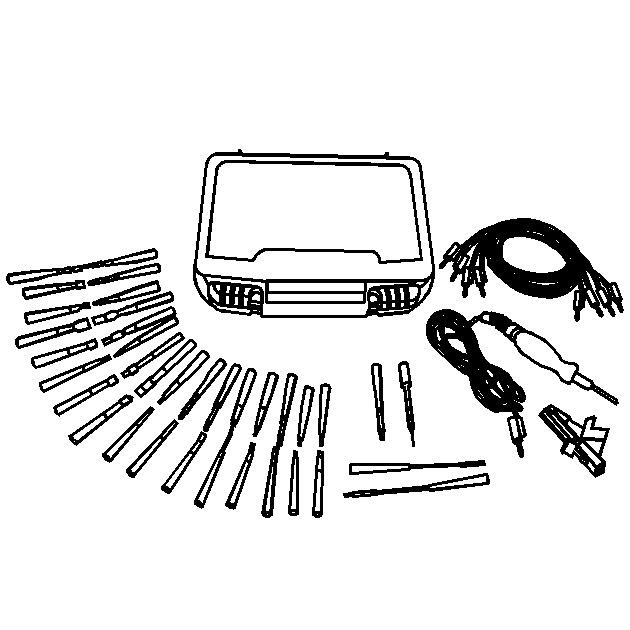

Courtesy of GENERAL MOTORS CORP.	J 35616-A Connector Test Adapter Kit
Courtesy of GENERAL MOTORS CORP.	J 37027-1A IAC Motor Driver
Courtesy of GENERAL MOTORS CORP.	You may also use an IAC Motor Driver from one of the approved manufacturers listed below: OTC Thexton CTI Snap On MAC Tools NAPA/Balkamp

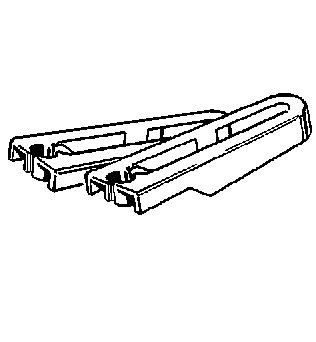

Courtesy of GENERAL MOTORS CORP.	J 37088-A Fuel Line Disconnect Tool Set

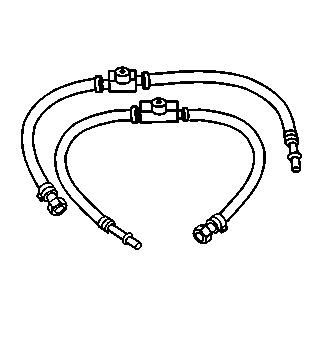

Courtesy of GENERAL MOTORS CORP.	J 37287 Fuel Line Shut-off Adapters
Courtesy of GENERAL MOTORS CORP.	J 39021 Fuel Injector Coil and Balance Tester
Courtesy of GENERAL MOTORS CORP.	J 39021-210 Injector Tester Adapter Box
Courtesy of GENERAL MOTORS CORP.	J 39021-301 Injector Harness Connector

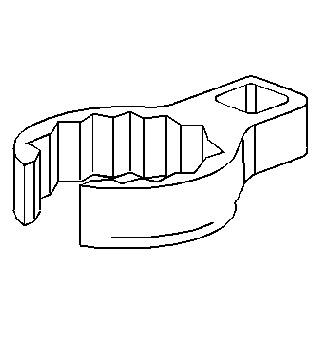

Courtesy of GENERAL MOTORS CORP.	J 39194 Oxygen Sensor Wrench

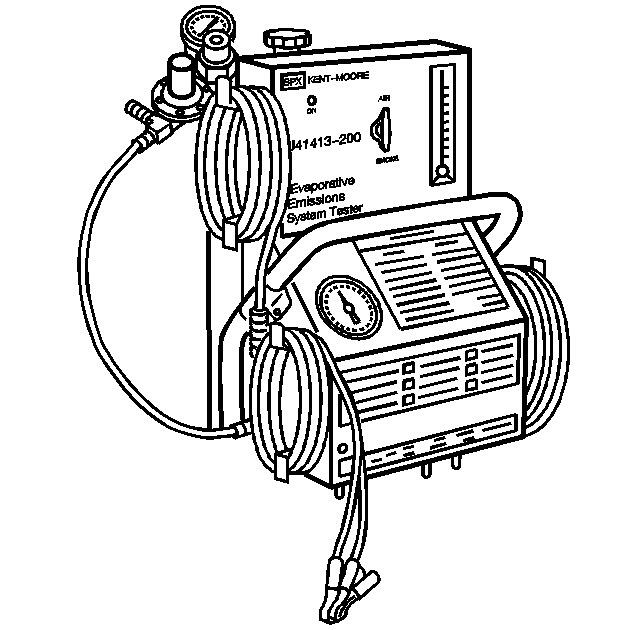

Courtesy of GENERAL MOTORS CORP.	J 41413-200 Evaporative Emissions System Tester (EEST)

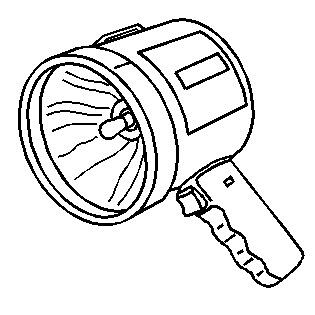

Courtesy of GENERAL MOTORS CORP.	J 41413-SPT High Intensity White Light
Courtesy of GENERAL MOTORS CORP.	J 41413-VLV EVAP Service Port Vent Fitting
Courtesy of GENERAL MOTORS CORP.	J 41415-40 Fuel Tank Cap Adapter

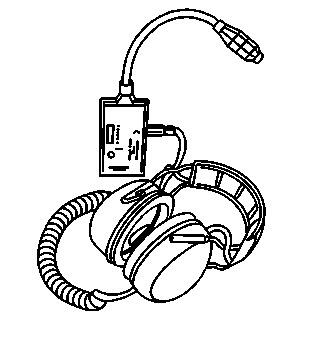

Courtesy of GENERAL MOTORS CORP.	J 41416 Ultrasonic Leak Detector

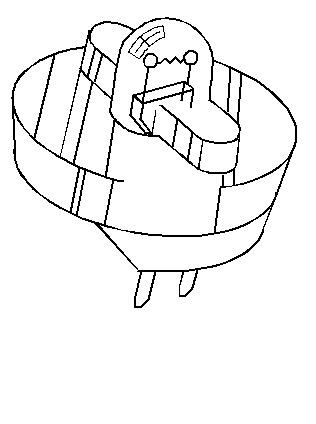

Courtesy of GENERAL MOTORS CORP.	J 44175 Fuel Composition Test

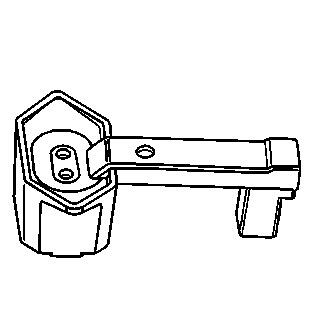

Courtesy of GENERAL MOTORS CORP.	J 44402 Fuel Tank Sending Unit Wrench
