Fuel Hose/Pipes Routing Diagram (Pickup)

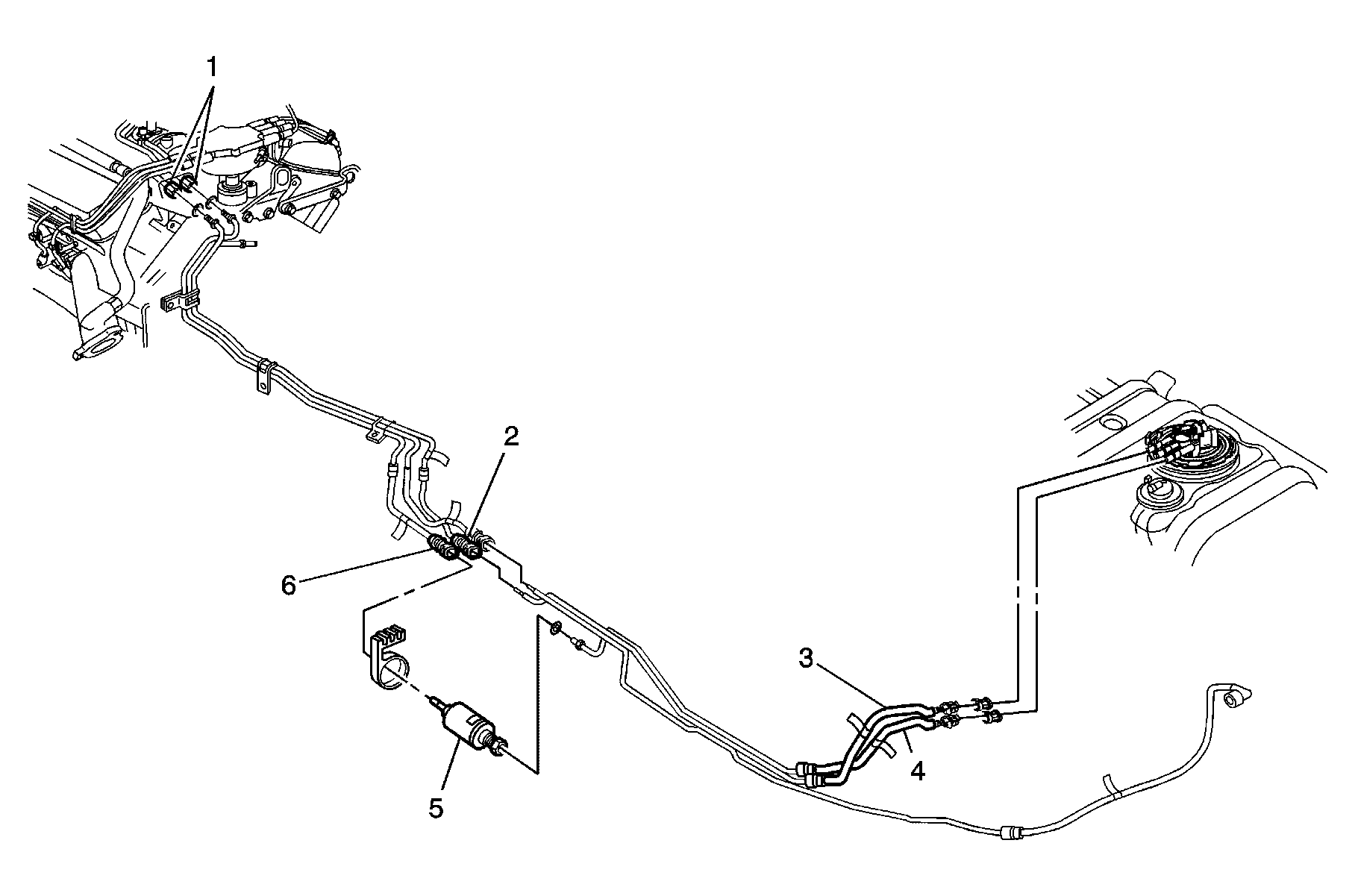

Fig 1: Fuel Hose/Pipes Routing (Pickup)
GM870406Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Compartment Fuel Pipes
2 Fuel Return Front Pipe
3 Fuel Return Rear Pipe
4 Fuel Feed Rear Pipe
5 Fuel Filter
6 Fuel Feed Front Pipe
