Installation Procedure

  1. Install the new MAP sensor grommet on the MAP sensor.

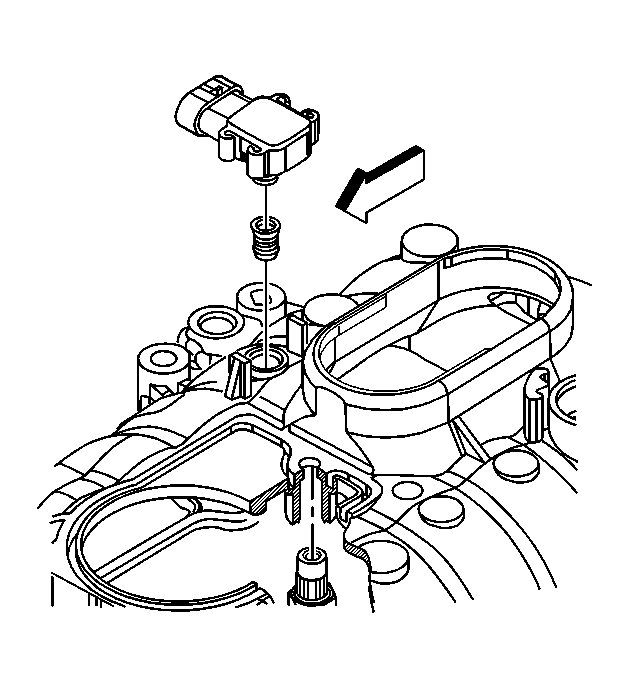

    2. Fig 1: View Of MAP Sensor
    GM10933Courtesy of GENERAL MOTORS CORP.
  2. Install the MAP sensor.

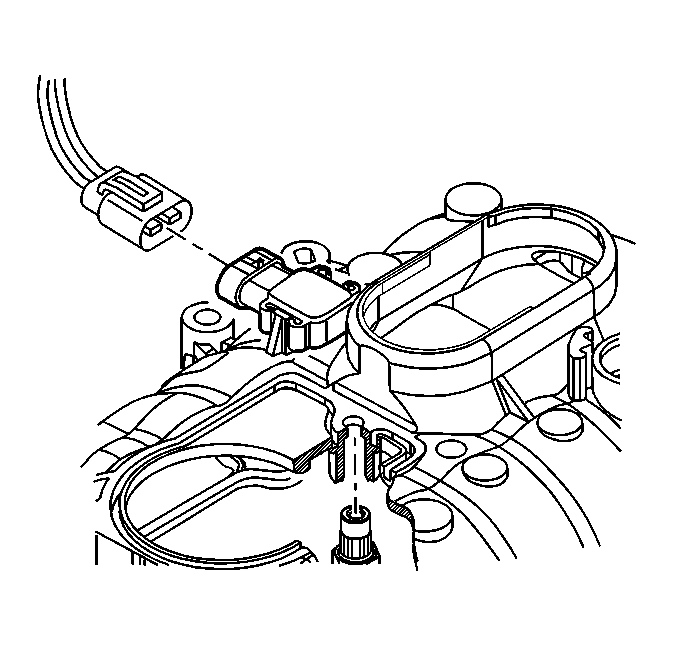

    3. Fig 2: View Of MAP Sensor Harness Connector
    GM12817Courtesy of GENERAL MOTORS CORP.
  3. Connect the MAP sensor harness connector.
