Starting and Charging Schematics

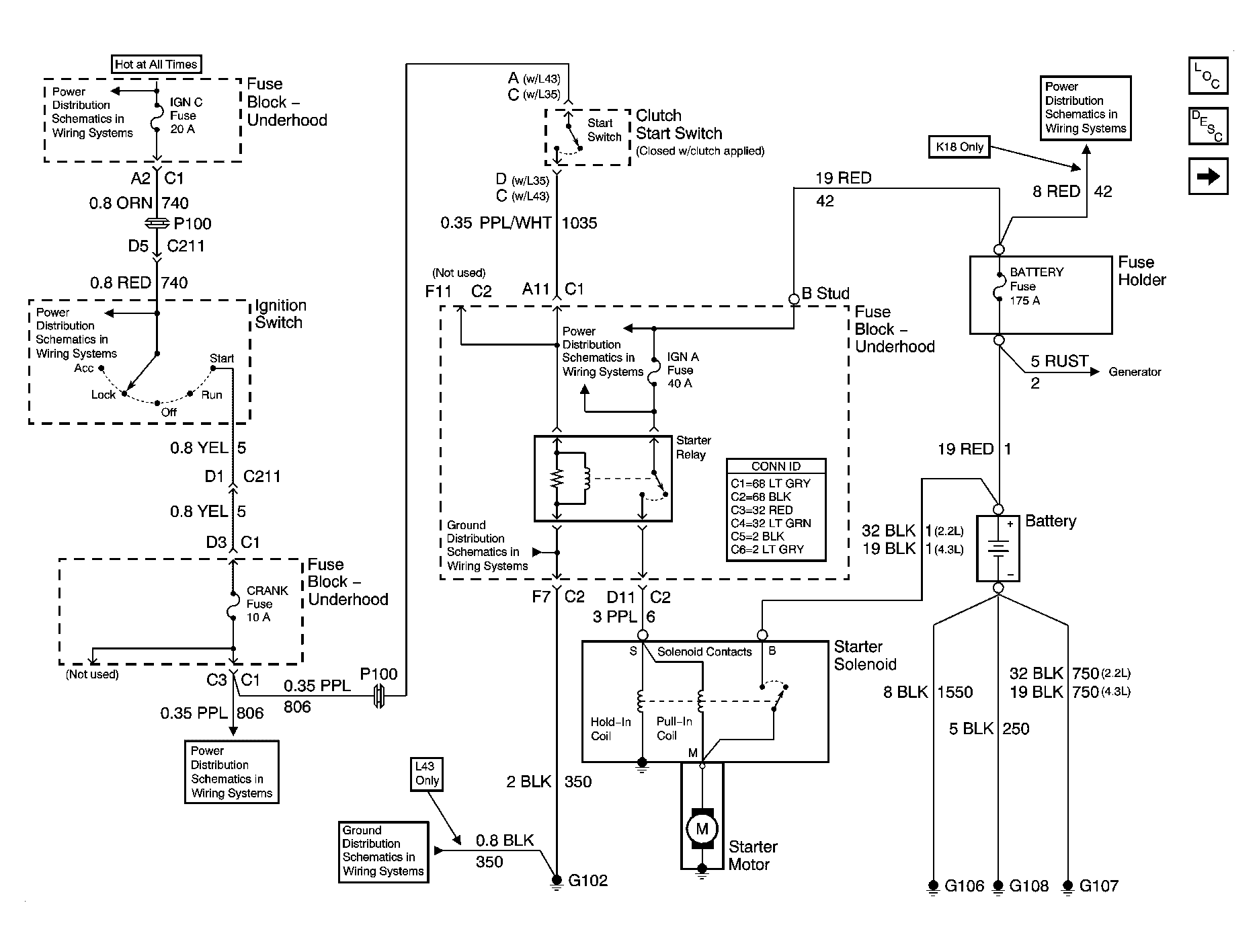

Fig 1: Manual Transmission Starting
GM887451Courtesy of GENERAL MOTORS CORP.

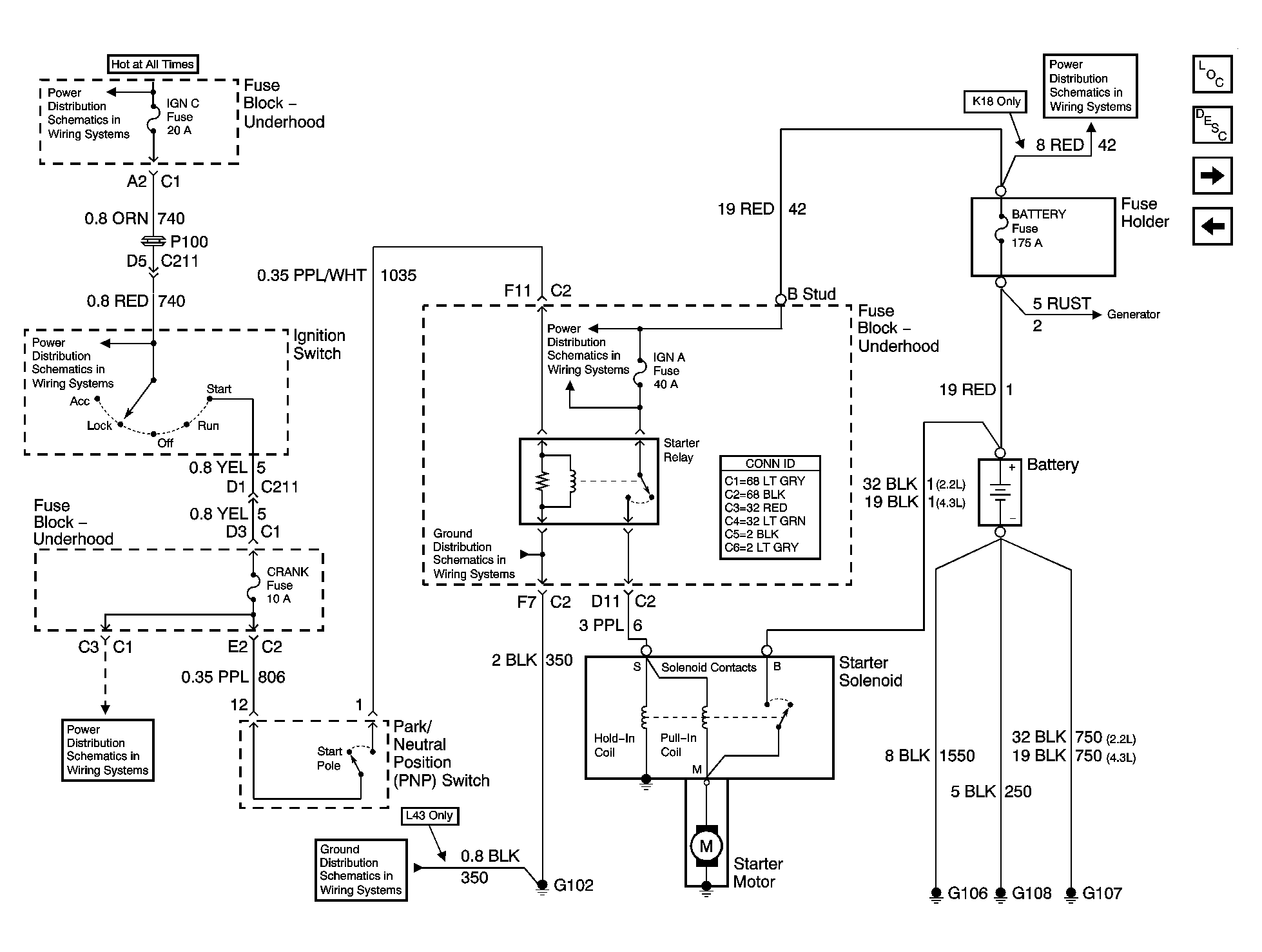

Fig 2: Automatic Transmission Starting
GM1542164Courtesy of GENERAL MOTORS CORP.

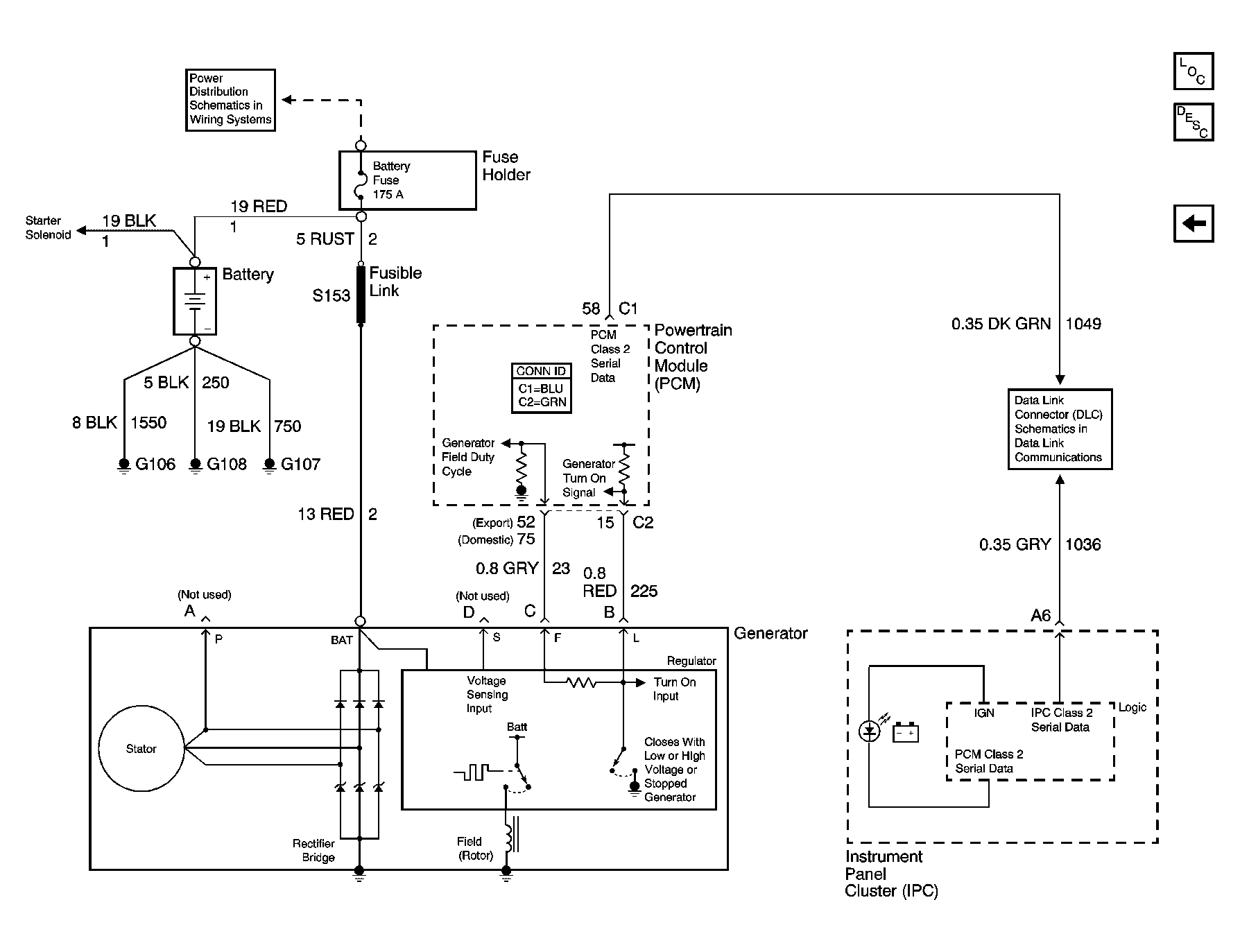

Fig 3: Engine Charging - 4.3L
GM857456Courtesy of GENERAL MOTORS CORP.
