Installation Procedure

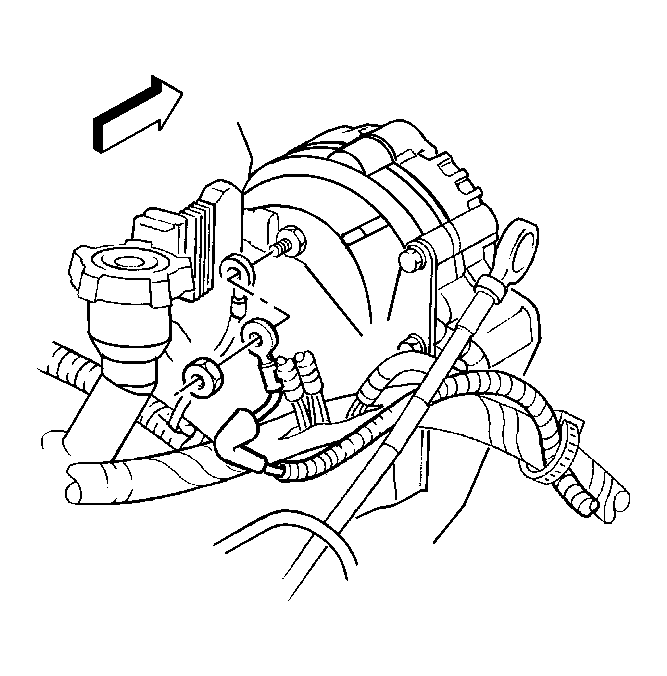

    Fig 1: Locating Generator Output Terminal Retaining Nut
    GM43019Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Connect the generator output (BAT) terminal wire.

    Ensure the insulating boot is covering the terminal nut.

    Tighten:  Tighten the generator output (BAT) terminal nut to 17 N.m (12 lb ft).

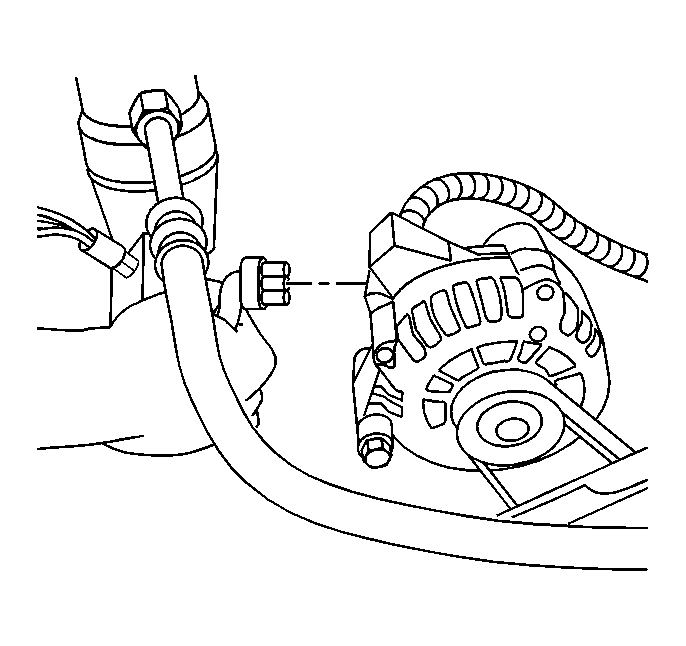

    2. Fig 2: View Of Generator Electrical Connector
    GM395687Courtesy of GENERAL MOTORS CORP.
  2. Connect the generator electrical connector.

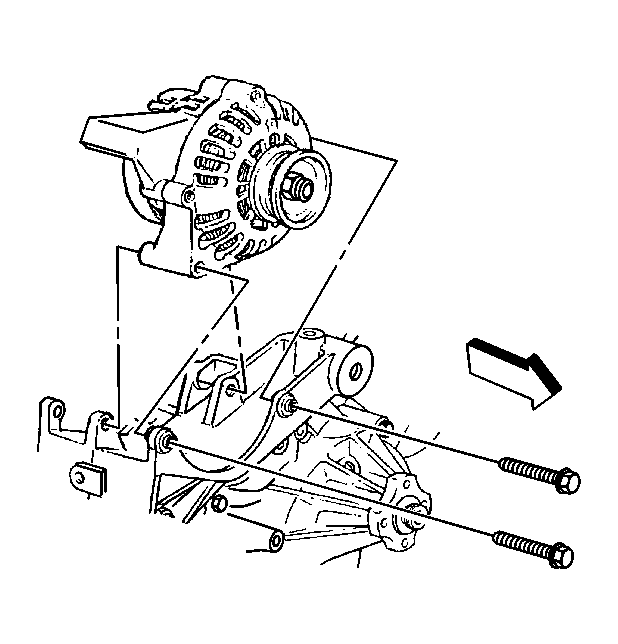

    3. Fig 3: Locating Generator Mounting Bolts
    GM332407Courtesy of GENERAL MOTORS CORP.
  3. Install the generator to the generator mounting bracket.
  4. Install the generator mounting bolts.

    Tighten:  Tighten the generator mounting bolts to 50 N.m (37 lb ft).

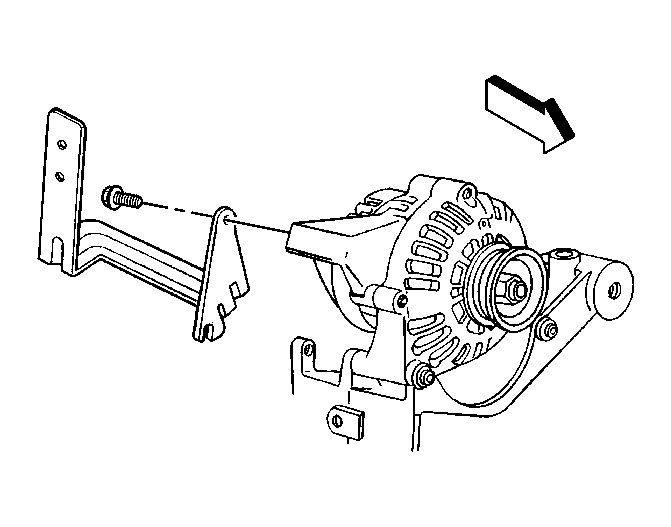

    5. Fig 4: Locating Heater Hose Brace Bolt
    GM395682Courtesy of GENERAL MOTORS CORP.
  5. Install the heater hose bracket bolt to the generator.

    Tighten:  Tighten the heater hose bracket to the generator bolt to 25 N.m (18 lb ft).

  6. Install the drive belt. Refer to Drive Belt Replacement in Engine Mechanical - 4.3L.
  7. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
