Power Door Systems Connectors

Door Lock Actuator - Driver

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Series, Sealed (BLK)
Pin Wire Color Circuit No. Function
A TAN 694 Driver Door Lock Actuator Unlock Control
B GRY 295 Door Lock Actuator Lock Control
Door Lock Actuator - Front Passenger, RR, LR

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Series, Sealed (BLK)
Pin Wire Color Circuit No. Function
A TAN 294 Door Lock Actuator Unlock Control
B GRY 295 Door Lock Actuator Lock Control
Door Lock Cylinder Switch - Driver/Front Passenger (Except LH Utility w/Content Theft)

GM684793Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052642
  • 2-Way F Metri-Pack 150 Series, Sealed (LT GRN)
Pin Wire Color Circuit No. Function
A BLK 1050 Ground - RH
BLK 1850 Ground - LH Pickup
WHT/BLK 1221 End gate Release Switch Signal - LH Utility w/o Content Theft
B LT GRN 262 Driver Door Key Switch Signal - RH, LH on Blazer LT
BLK/WHT 56 Trunk Release Motor Supply Voltage - LH Utility
Door Lock Cylinder Switch - Driver (Utility w/Content Theft)

GM280765Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162834
  • 4-Way F Metri-Pack 150.2 Series, Pull-to-Seat (MD GRY)
Pin Wire Color Circuit No. Function
A BLK/WHT 56 Trunk Release Motor
B BLK 1850 Ground
C WHT/BLK 1221 End Gate Release Switch Signal
D LT GRN 262 Driver Door Key Switch Signal
Door Lock and Window Switch - Driver C1

GM39764Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12084617
  • 11-Way F Metri-Pack 150, 280, 480 Series (BLK)
Pin Wire Color Circuit No. Function
A-B - - Not Used
C LT BLU 195 Door Lock Control
D ORN 840 Battery Positive Voltage
E WHT 194 Door Unlock Control
F BLK 1850 Ground
G - - Not Used
H PPL 171 Power Window Master Switch Right Rear Down Signal 4-Door
J BRN 2409 Interior Park Lamps Supply Voltage
K PPL 169 Power Window Master Switch Left Rear Down 4-Door
L DK GRN 1001 RAP Fuse Supply Voltage
DK GRN 1001 RAP Fuse Supply Voltage 4-Door
Door Lock and Window Switch - Driver C2

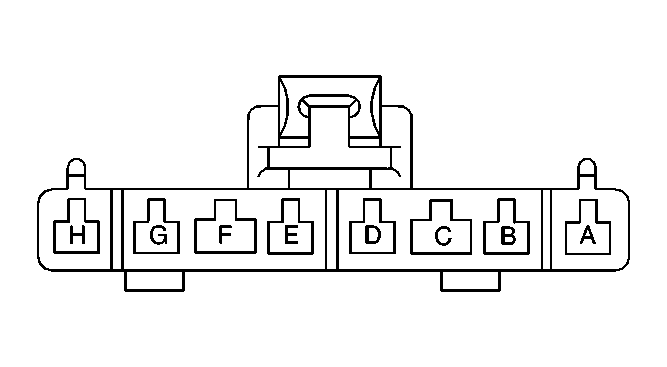

GM39751Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12084603
  • 8-Way F Metri-Pack 200, 480 Series (MD GRY)
Pin Wire Color Circuit No. Function
A DK BLU 164 Power Window Motor Left Front Up
B LT BLU 166 Power Window Master Switch Right Front Up Signal
C BLK 1850 Ground
D TAN 167 Power Window Master Switch Right Front Down Signal
E BRN 165 Power Window Motor Left Front Down
F - - Not Used
G DK GRN 168 Power Window Master Switch Left Rear Up Signal 4-Door
H LT GRN 170 Power Window Master Switch Right Rear Up Signal 4-Door
Door Lock and Window Switch - Front Passenger C1

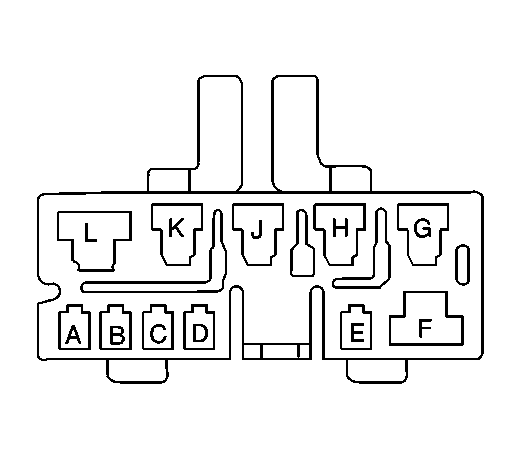

GM39764Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12084617
  • 11-Way F Metri-Pack 150, 280, 480 Series (BLK)
Pin Wire Color Circuit No. Function
A-B - - Not Used
C WHT 194 Door Unlock Control
D ORN 840 Battery Positive Voltage
E LT BLU 195 Door Lock Control
F DK GRN 1001 RAP Fuse Supply Voltage
G DK BLU 666 Power Window Motor Right Front Up Control
H - - Not Used
J LT BLU 166 Power Window Master Switch Right Front Up Signal
K BRN 667 Power Window Motor Right Front Down Control
L TAN 167 Power Window Master Switch Right Front Down Signal
Door Lock and Window Switch - Front Passenger C2

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F 150 Series (BLK)
Pin Wire Color Circuit No. Function
A - - Not Used
B BLK 1050 Ground
C BRN 2409 Interior Park Lamps Supply Voltage
Liftglass/End Gate Lock Cylinder Switch

GM39667Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129136
  • 4-Way F Metri-Pack 280 Series, Flex Lock (BLK)
Pin Wire Color Circuit No. Function
A LT BLU 195 Door Lock Control
B WHT 194 Door Unlock Control
C WHT/BLK 1221 End Gate Release Switch Signal
D ORN 840 Battery Positive Voltage
Outside Rearview Mirror Switch

GM62464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064769
  • 10-Way F Metri-Pack 150 Series (WHT)
Pin Wire Color Circuit No. Function
A BRN 2409 Interior Park Lamps Supply Voltage
B BLK 1850 Ground
C LT GRN 89 Driver Mirror Motor Down Control
D YEL 1496 Mirror Motor Left/Up Control
E YEL 1496 Mirror Motor Left/Up Control
F WHT 81 Driver Mirror Motor Right Control
G ORN 840 Battery Positive Voltage
H - - Not Used
J RED/WHT 881 Passenger Mirror Motor Right Control
K PPL/WHT 889 Passenger Mirror Motor Down Control
Outside Rearview Mirror - Driver

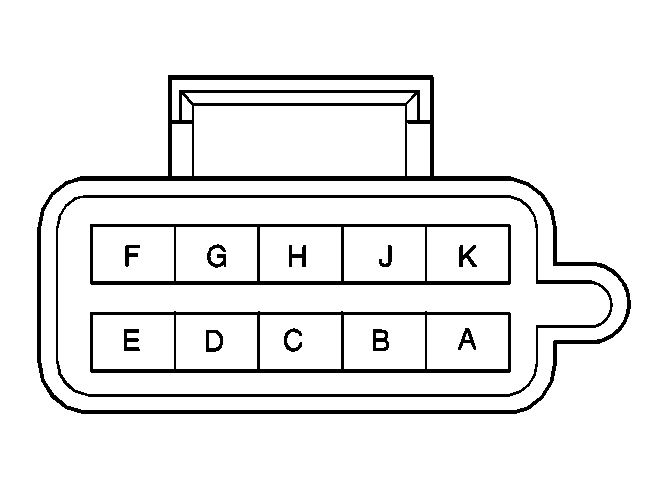

GM153651Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12065659
  • 10-Way M Metri-Pack Connector and Clip Assemblies (NAT)
Pin Wire Color Circuit No. Function
A ORN 2267 Mirror Heating Element Supply Voltage
B PNK 1691 Automatic Day/Night Mirror Low Reference - w/Automatic Day/Night Mirror
C YEL 1496 Mirror Motor Right/Up Control
D LT GRN 89 Driver Mirror Motor Down Control
E WHT 81 Driver Mirror Motor Right Control
F - - Not Used
G GRY 1690 Automatic Day/Night Mirror Signal - w/Automatic Day/Night Mirror
H BLK 1850 Ground
J YEL 190 Driver Folding Mirror Motor Extend Control - w/Power Folding Mirrors
K LT BLU 191 Driver Folding Mirror Motor Retract Control - w/Power Folding Mirrors
Outside Rearview Mirror - Front Passenger

GM153651Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12065659
  • 10-Way M Metri-Pack Connector and Clip Assemblies (NAT)
Pin Wire Color Circuit No. Function
A ORN 2267 Mirror Heating Element Supply Voltage
B - - Not Used
C YEL 1496 Mirror Motor Right/Up Control
D PPL/WHT 889 Passenger Mirror Motor Down Control
E RED/WHT 881 Passenger Mirror Motor Right Control
F-G - - Not Used
H BLK 1050 Ground
J YEL 190 Driver Folding Mirror Motor Extend Control
K LT BLU 191 Driver Folding Mirror Motor Retract Control
Outside Rearview Folding Mirror Switch (Export)

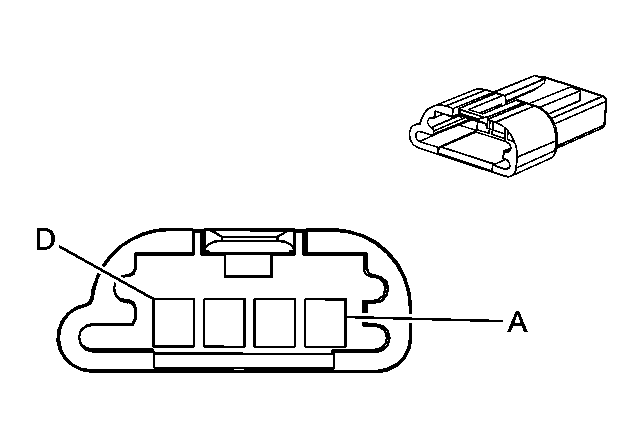

GM362751Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12103329
  • 4-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A DK GRN 1301 RAP Fuse Supply Voltage
B YEL 190 Driver Folding Mirror Motor Extend Control
C BLK 1850 Ground
D LT BLU 191 Driver Folding Mirror Motor Retract Control
Window Lockout Switch

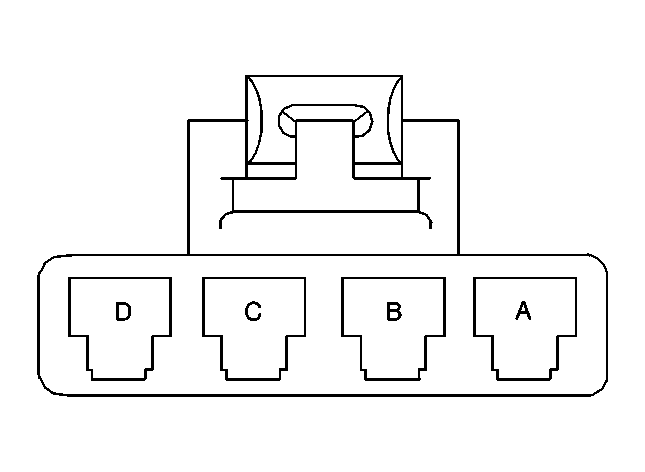

GM35435Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12066571
  • 4-Way F Metri-Pack 480 Series (BLK)
Pin Wire Color Circuit No. Function
A BLK 1850 Ground
B DK BLU 1307 Power Window Master Switch Lockout Signal
C BRN 2409 Interior Park Lamps Supply Voltage
D DK GRN 1001 RAP Fuse Supply Voltage
Window Motor - Driver

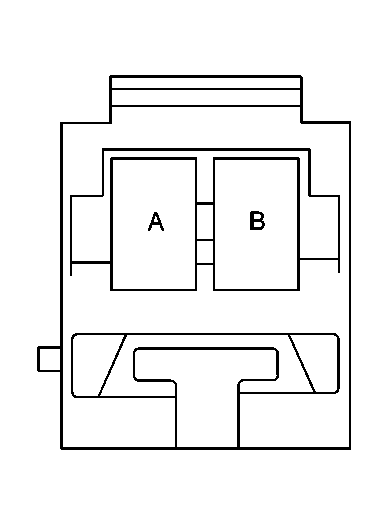

GM35433Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12033911
  • 2-Way F Pack - Con Series (NAT)
Pin Wire Color Circuit No. Function
A BRN 165 Power Window Motor Left Front Down Control
B DK BLU 164 Power Window Motor Left Front Up Control
Window Motor - Front Passenger

GM35433Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12033911
  • 2-Way F Pack - Con Series (NAT)
Pin Wire Color Circuit No. Function
A BRN 667 Power Window Motor Right Front Down Control
B DK BLU 666 Power Window Motor Right Front Up Control
Window Motor - LR

GM35433Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12033911
  • 2-Way F Pack - Con Series (NAT)
Pin Wire Color Circuit No. Function
A BRN 669 Power Window Motor Left Rear Down Control
B DK BLU 668 Power Window Motor Left Rear Up Control
Window Motor - RR

GM35433Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12033911
  • 2-Way F Pack - Con Series (NAT)
Pin Wire Color Circuit No. Function
A BRN 671 Power Window Motor Right Rear Down Control
B DK BLU 670 Power Window Motor Right Rear Up Control
Window Switch - LR

GM288397Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12015344
  • 6-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A DK GRN 168 Power Window Master Switch Left Rear Up Signal
B DK BLU 1307 Power Window Master Switch Lockout Control
C DK BLU 668 Power Window Motor Left Rear Up Control
D PPL 169 Power Window Master Switch Left Rear Down Signal
E - - Not Used
F BRN 669 Power Window Motor Left Rear Down Control
Window Switch - RR

GM288397Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12015344
  • 6-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A DK GRN 170 Power Window Master Switch Right Rear Up Signal
B DK BLU 1307 Power Window Master Switch Lockout Control
C DK BLU 670 Power Window Motor Right Rear Up
D PPL 171 Power Window Master Switch Right Rear Down Signal
E - - Not Used
F BRN 671 Power Window Motor Right Rear Down
