Power Seat Systems Component Views

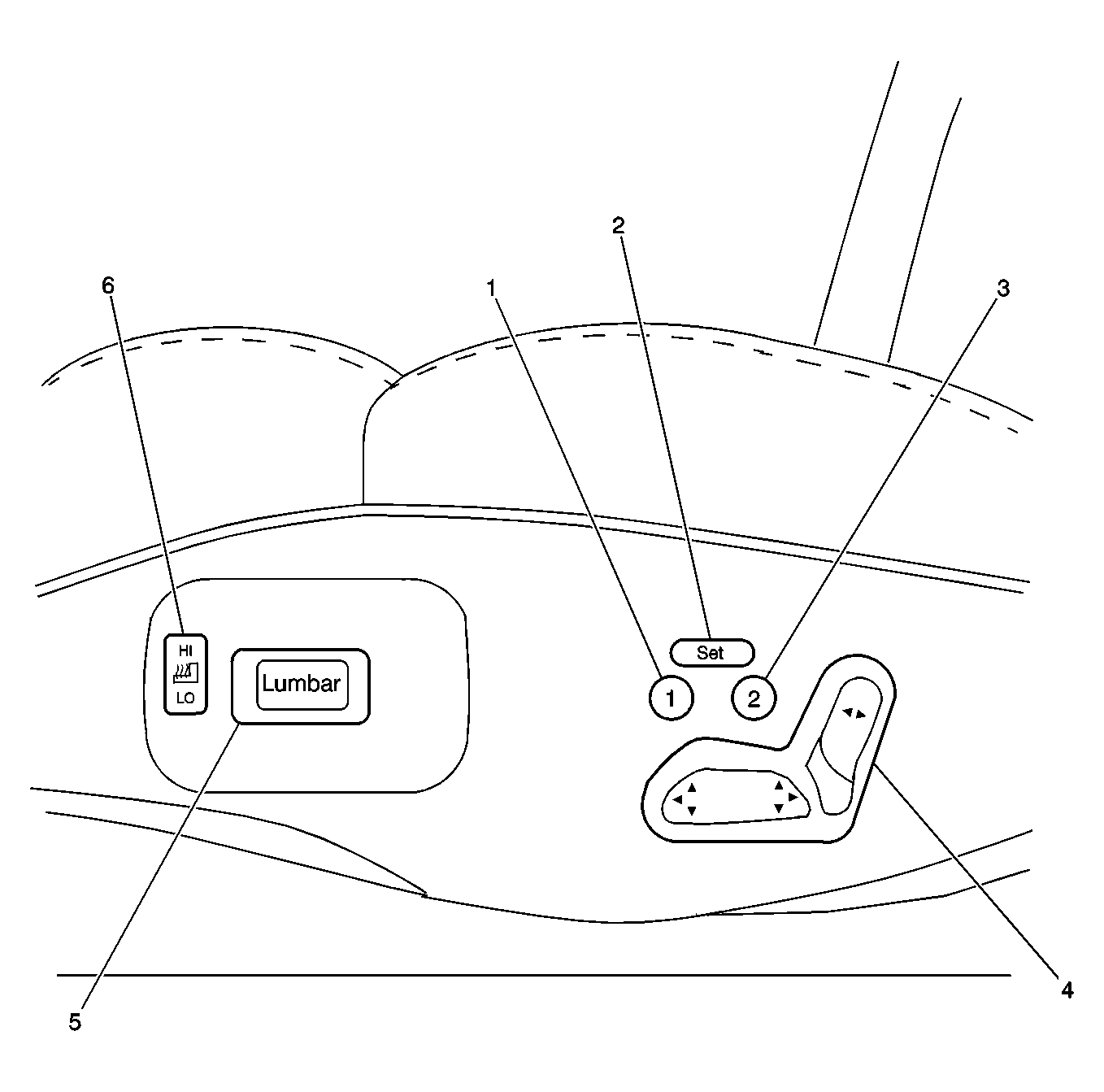

Fig 1: Seat Switches

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Memory Position 1 Switch (Part of the Driver Seat Adjuster Switch)
2	Memory Set Switch (Part of the Driver Seat Adjuster Switch)
3	Memory Position 2 Switch (Part of the Driver Seat Adjuster Switch)
4	Seat Adjuster Switch - Driver (Front Passenger Similar)
5	Seat Lumbar Switch - Driver (Front Passenger Similar)
6	Heated Seat Switch (Part of the Driver Seat Lumbar Switch)

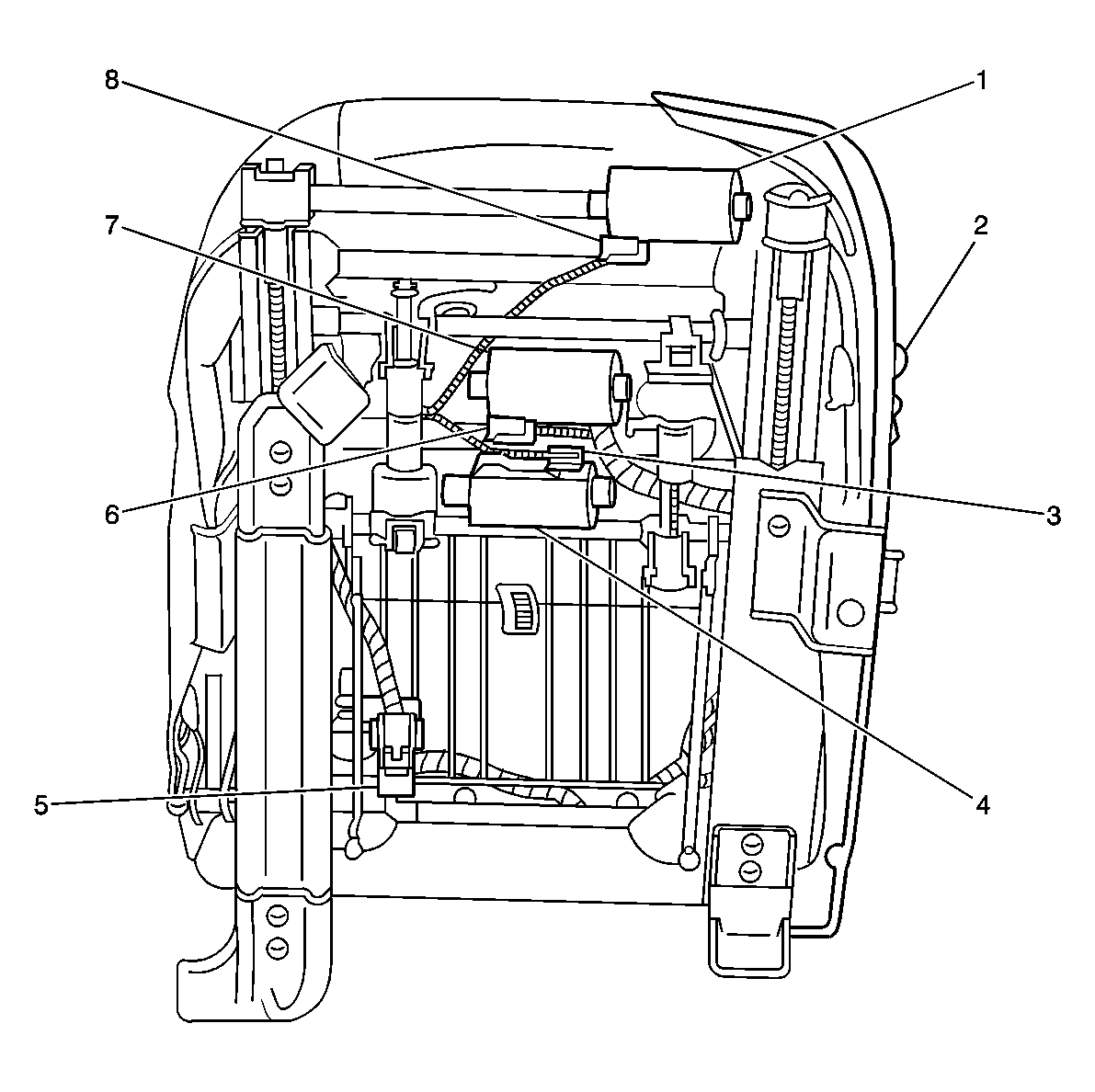

Fig 2: Seat Motors (8-Way w/o Memory)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Horizontal Motor - Driver - Front Passenger Similar
2	Seat Adjuster Switch - Driver - Front Passenger Similar
3	Seat Front Vertical Motor Connector - Driver - Front Passenger Similar
4	Seat Front Vertical Motor - Driver - Front Passenger Similar
5	C317 (LH), C315 (RH)
6	Seat Rear Vertical Motor Connector - Driver - Front Passenger Similar
7	Seat Rear Vertical Motor - Driver - Front Passenger Similar
8	Seat Horizontal Motor Connector - Driver - Front Passenger Similar

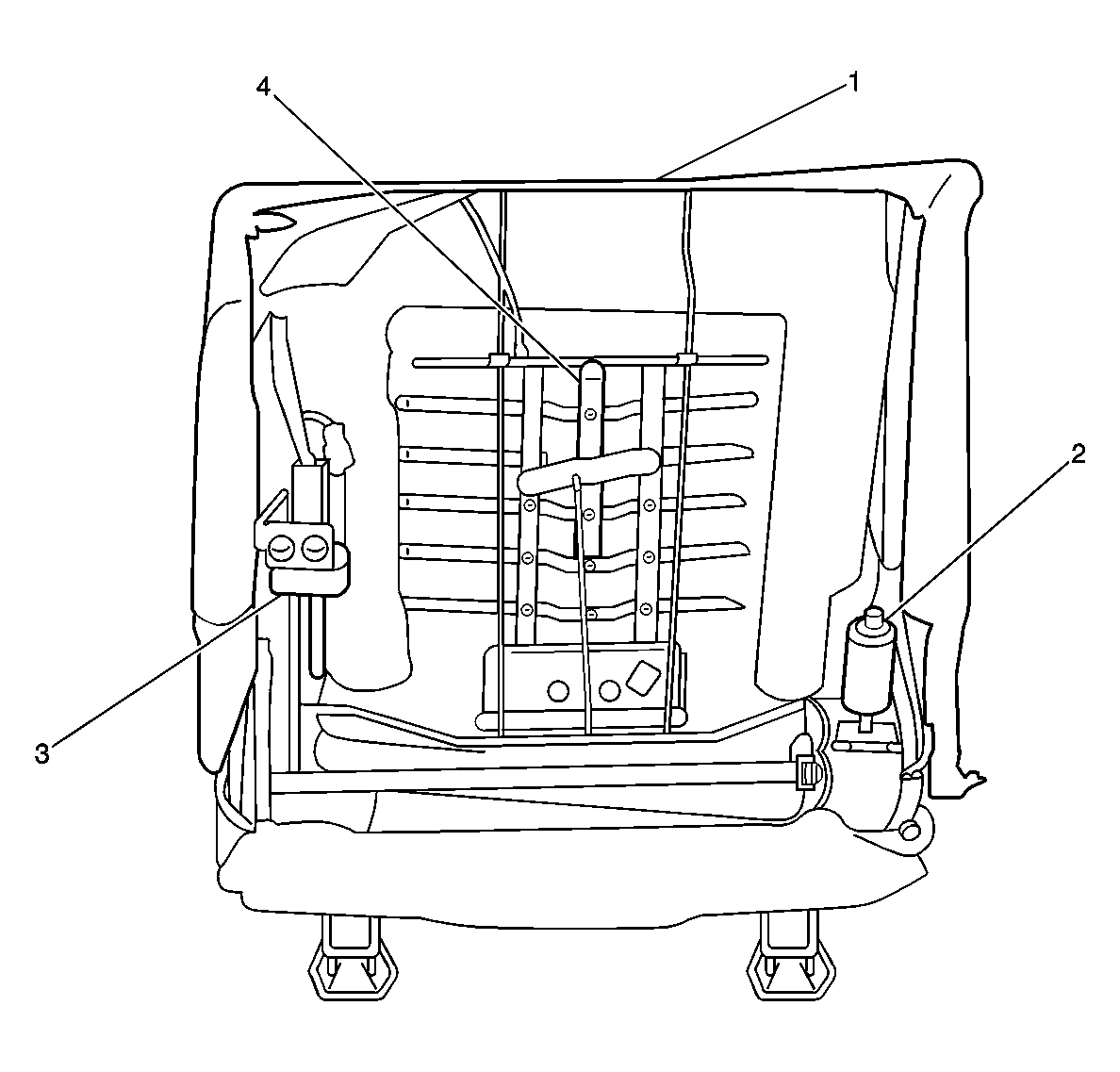

Fig 3: Seat Lumbar Motor and Seat Recliner Motor (8-Way w/o Memory)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Back Cushion, Top
2	Seat Recliner Motor - Driver - Passenger Similar
3	Seat Lumbar Motor - Driver - Passenger Similar
4	Lumbar Support Grid

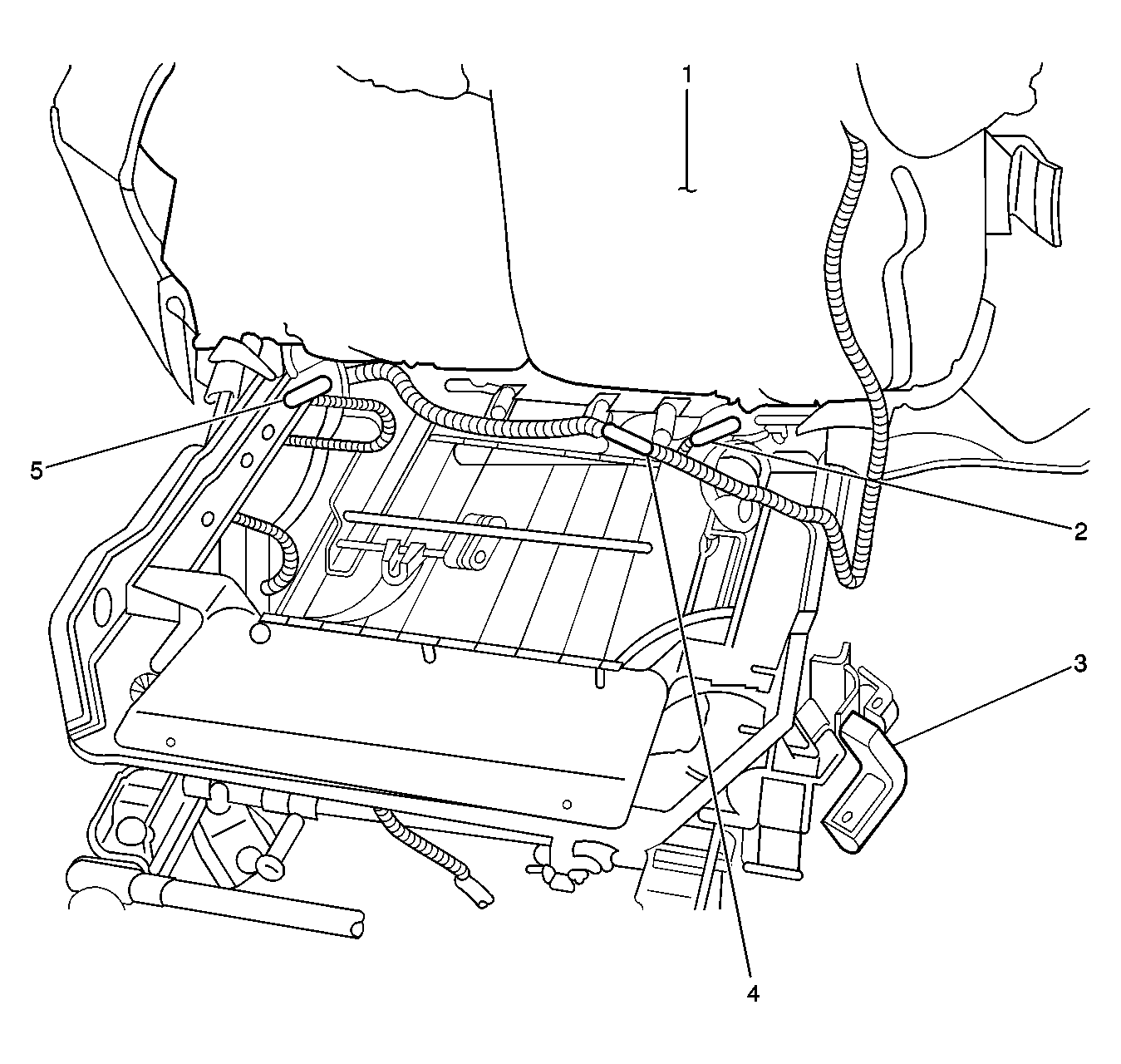

Fig 4: Seat Harness Routing (8-Way w/o Memory)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Cushion, Bottom
2	Seat Lumbar Motor Connector - Driver - Passenger Similar
3	Seat Adjuster Switch - Driver - Passenger Similar
4	Heated Seat Control Module - Driver - Passenger Similar
5	C302 - LH, C303 - RH
