Wiper/Washer System Connectors

Headlamp Washer Fluid Pump (Export)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12020599 2-Way F Metri-Pack 280 Series, Sealed (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	250	Ground
B	PPL	1197	Headlamp Washer Pump Control

Rear Window Wiper Cutout and Liftglass Ajar Jamb Switch (Utility)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12045813 4-Way F Metri-Pack 150 Series (NAT)
Pin	Wire Color	Circuit No.	Function
A	PNK/BLK	1303	Liftgate Ajar Switch Signal
B	BLK	1350	Ground
C	WHT	393	Rear Window Wiper Motor Control
D	GRY	391	Rear Window Wiper Switch Signal

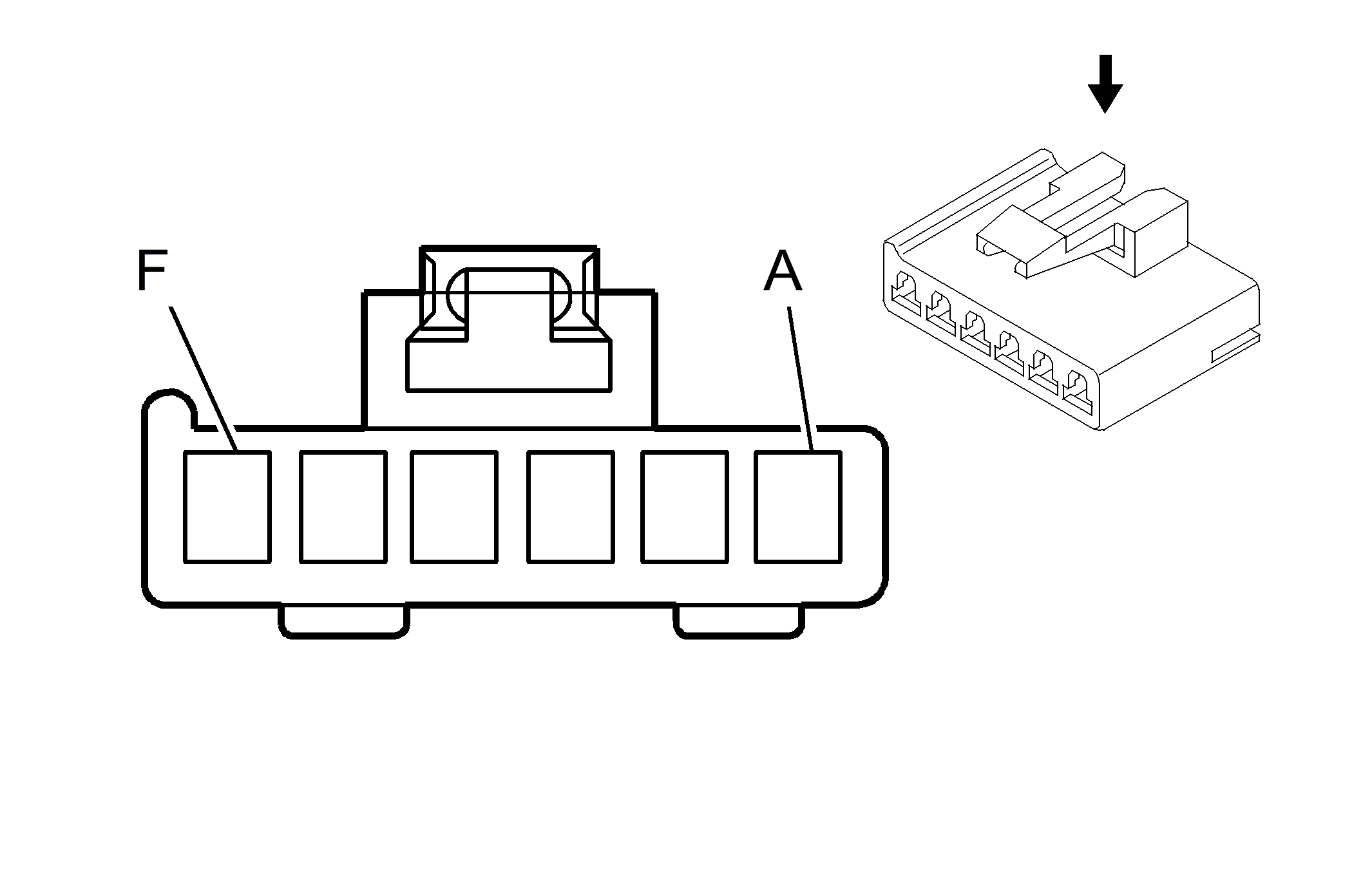

Rear Wiper/Washer and Endgate Window Release Switch

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12092254 6-Way F Metri-Pack 280 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	YEL	43	Accessory Voltage
B	DK GRN	392	Rear Window Washer Pump Control
C	GRY	391	Rear Window Wiper Switch Signal
D	BLK	1576	Trunk Release Switch Signal
E	BLK	1050	Ground
F	GRY	1220	Instrument Panel Lamp Fuse Supply Voltage - 2

Rear Window Washer Fluid Pump (Utility)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12020599 2-Way F Metri-Pack 280 Series, Sealed (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	350	Ground
B	DK GRN	392	Rear Window Washer Pump Control

Rear Window Wiper Motor Controller (Utility)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052856 4-Way F Metri-Pack 280 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	1350	Ground
B	WHT	393	Rear Window Wiper Motor Control
C	ORN	1240	Battery Positive Voltage
D	DK GRN	392	Rear Window Washer Pump Control

Windshield Washer Fluid Pump

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052641 2-Way F Metri-Pack 150 Series, Sealed (BLK)
Pin	Wire Color	Circuit No.	Function
A	RED	228	Windshield Washer Pump Control
B	BLK	350	Ground

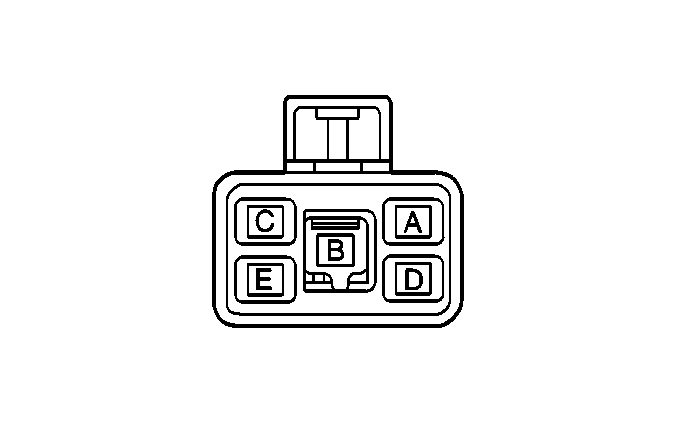

Windshield Wiper Motor

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12124634 5-Way F Metri-Pack 280 Series, Sealed (BLK)
Pin	Wire Color	Circuit No.	Function
A	DK GRN	113	Windshield Wiper Switch Signal 2
B	BLK	850	Ground
C	YEL	143	Accessory Voltage
D	PPL	92	Windshield Wiper Motor High Speed
E	GRY	112	Windshield Wiper Switch Signal 1
