Lighting Systems Component Views

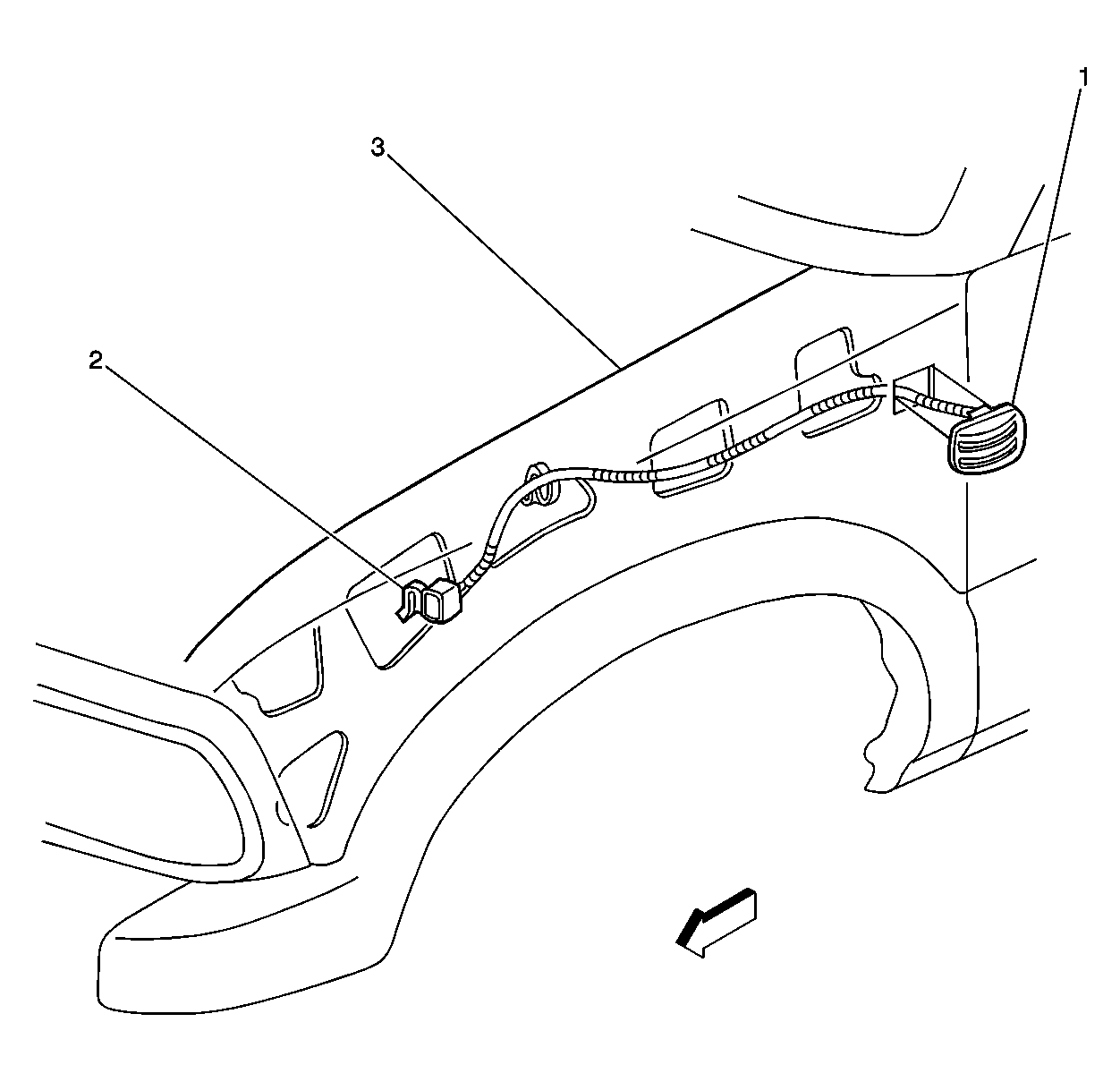

Fig 1: Repeater Lamp - Left (Export)
GM407904Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Repeater Lamp - Left
2 Repeater Lamp Extension Harness Connector
3 Fender - LF
Fig 2: Dome Lamp Harness w/o Driver Information Center (DIC) (Utility)
GM357174Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Dome Lamp
2 S300
3 S302
4 Dome Lamp Harness
5 C209
6 Vanity Mirror Lamp - Left
7 Inside Rear View Mirror
8 Vanity Mirror Lamp - Right

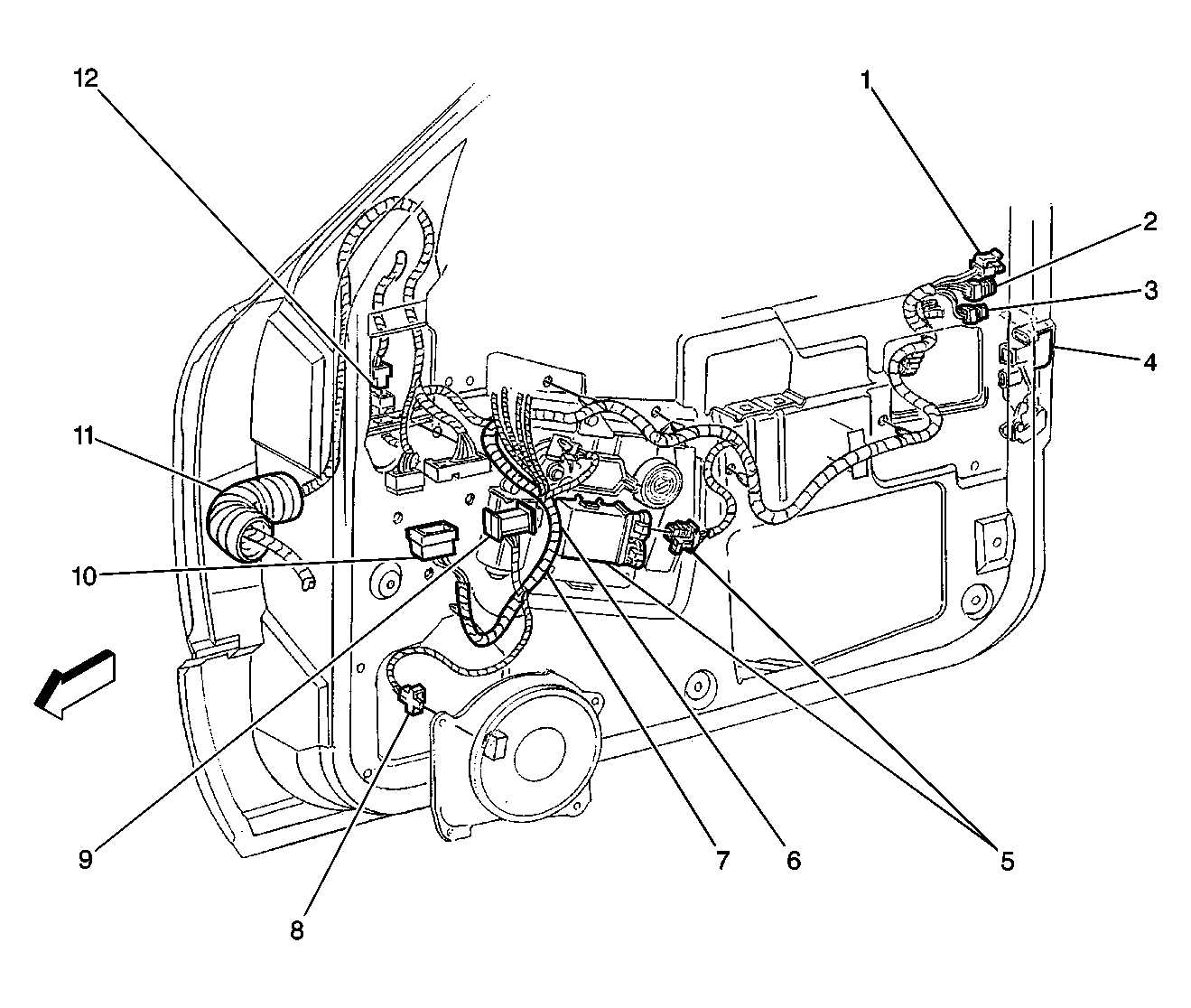

Fig 3: Front Passenger Door Shown, Driver Similar
GM416725Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Lock Cylinder Switch Connector - Front Passenger
2 Door Handle Switch Connector - Right
3 Door Lock Actuator Connector - Front Passenger
4 Door Lock Actuator - Front Passenger
5 Window Motor and Connector - Front Passenger
6 Splice S502-LH
7 Splice S601-RH, S501-LH
8 Speaker Connector - RF Door
9 C601-RH, C500-LH
10 C501-LH
11 P600-RH, P500-LH
12 Outside Rearview Mirror Connector - Passenger

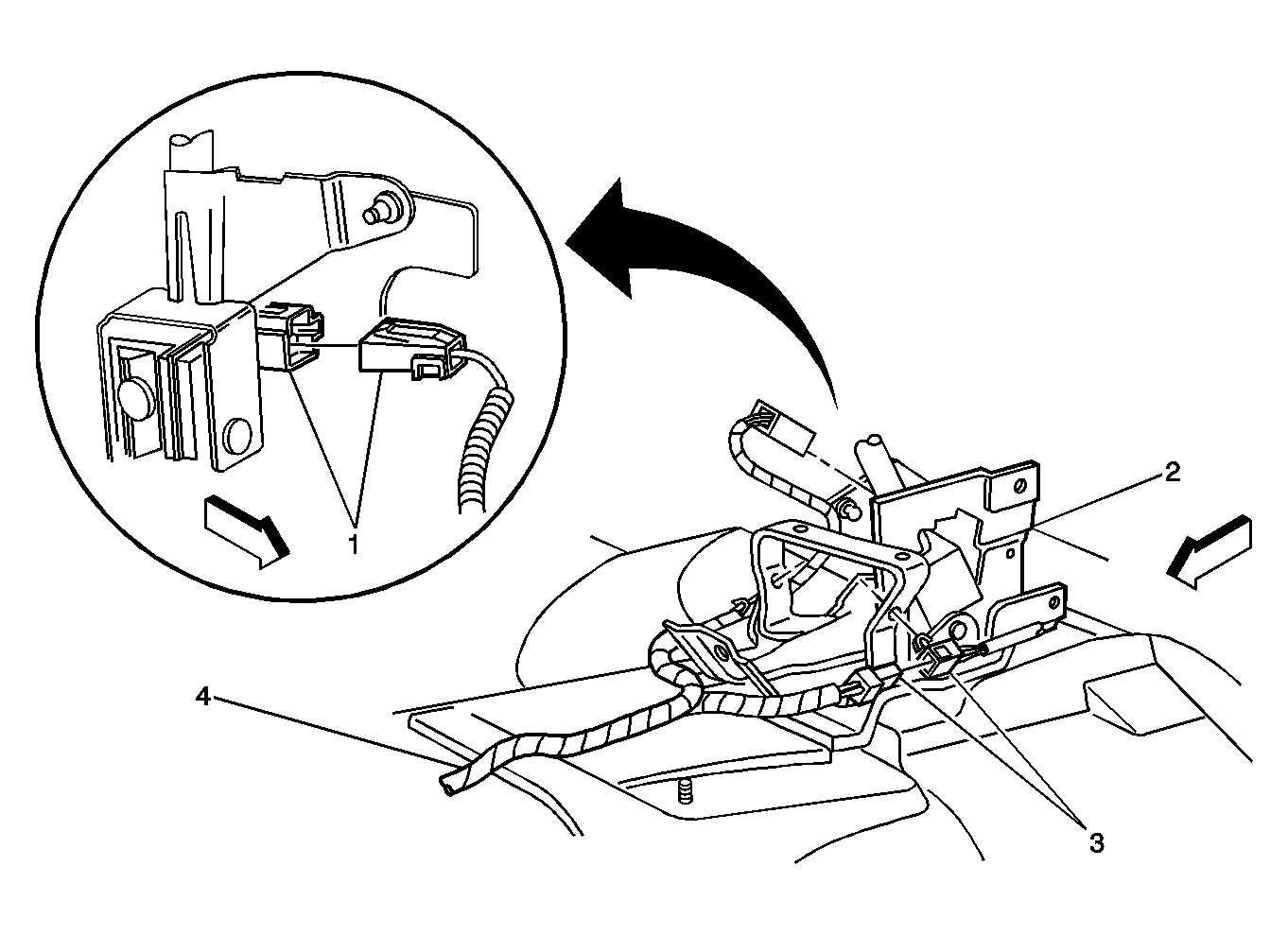

Fig 4: Floor Shifter Harness Connections
GM831148Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Automatic Transmission Control Module Connector
2 Floor Shifter
3 Automatic Transmission Shift Lever Position Indicator
4 S335
Fig 5: Floor Pedals
GM203295Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Dash Panel
2 Stop Lamp Switch
3 Brake Pedal
4 Clutch Pedal Position (CPP) Switch (Manual Transmission)
5 Clutch Pedal (Manual Transmission)

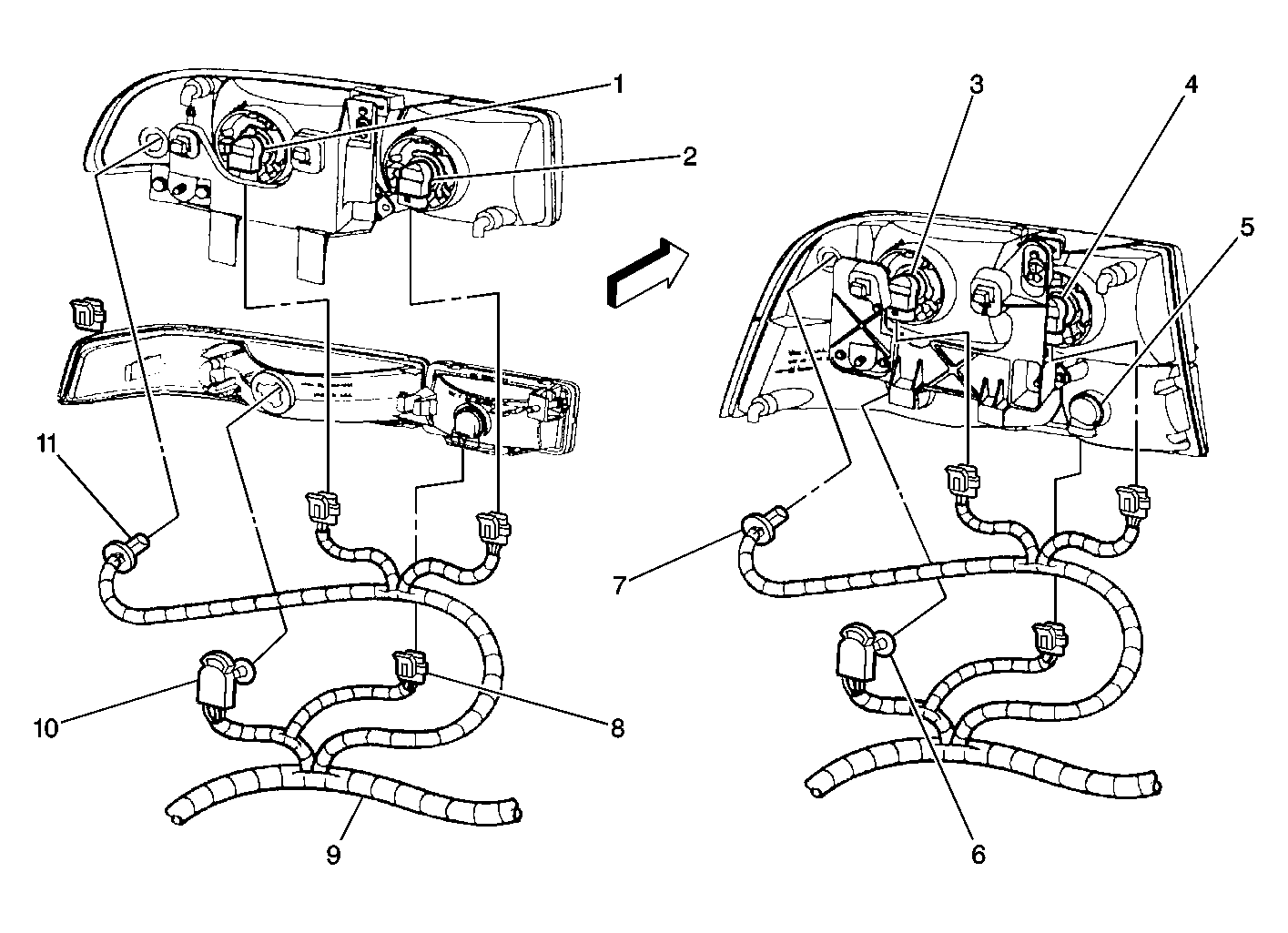

Fig 6: Forward Lamps Wiring Harness (Left Shown, Right Opposite)
GM354565Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp - Low Beam - Left (Chevrolet)
2 Headlamp - High Beam - Left (Chevrolet)
3 Headlamp - Low Beam - Left (GMC)
4 Headlamp - High Beam - Left (GMC)
5 Fog Lamp - LF (GMC)
6 Park/Turn Signal Lamp - LF (GMC)
7 Marker Lamp - LF (GMC)
8 Fog Lamp - LF (Chevrolet)
9 Forward Lamps Harness
10 Park/Turn Signal Lamp - LF (Chevrolet)
11 Marker Lamp - LF (Chevrolet)

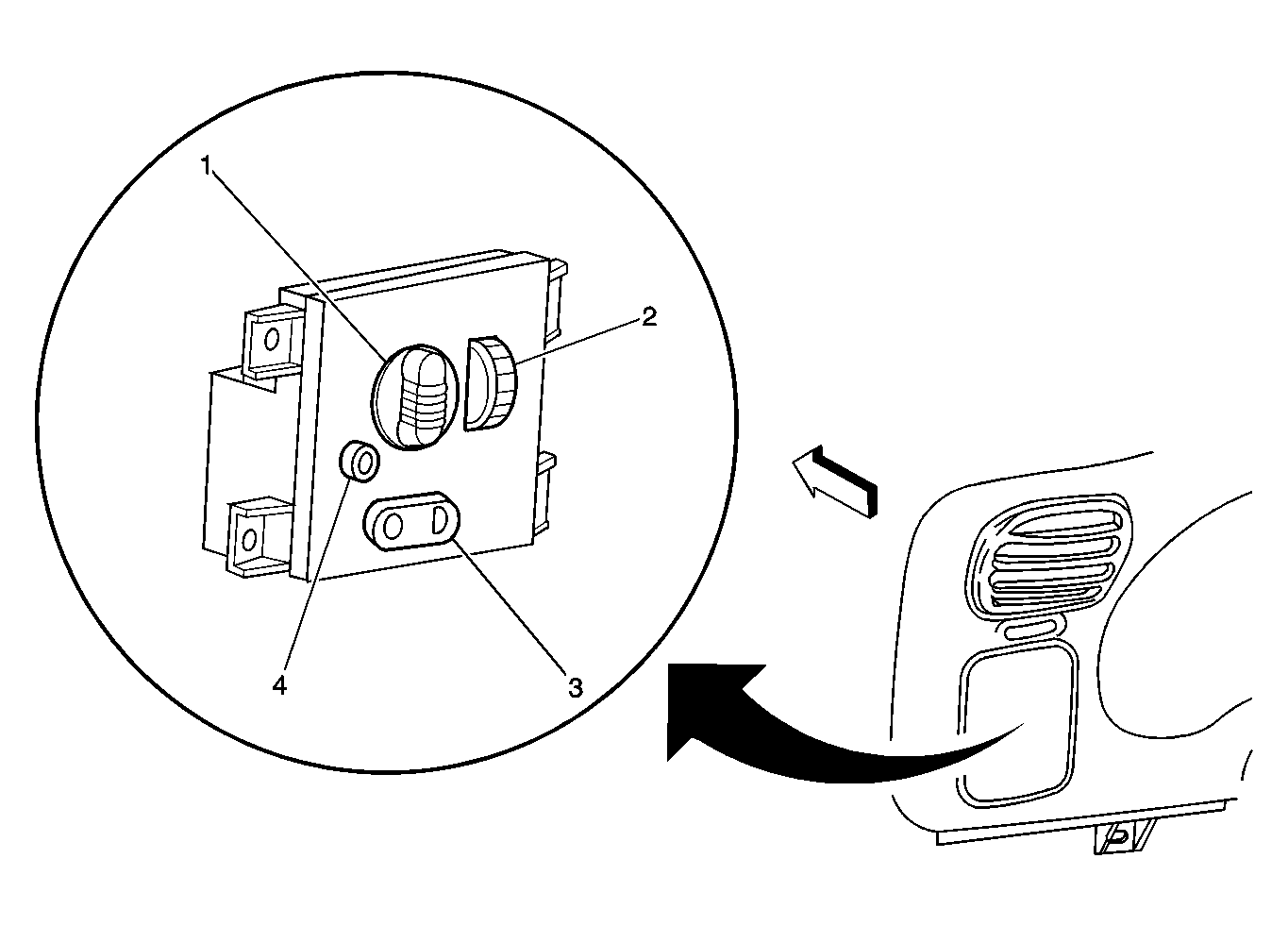

Fig 7: Headlamp Switch
GM357145Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp Switch
2 IP Dimmer Switch
3 Fog Lamp Switch
4 Dome Lamp Defeat Switch

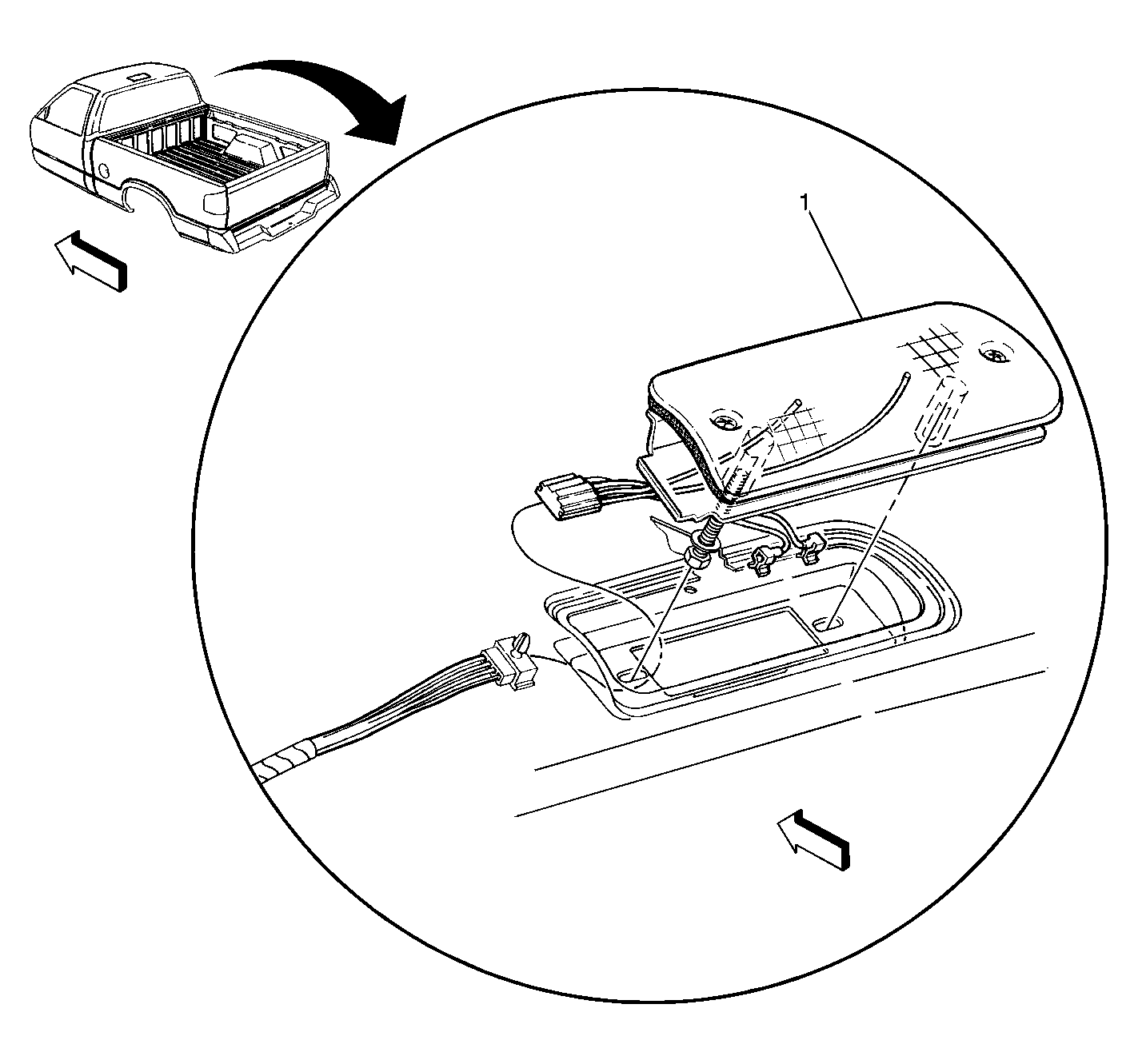

Fig 8: Center High Mounted Stop Lamp (CHMSL) (Pickup)
GM357177Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Center High Mounted Stop Lamp (CHMSL)

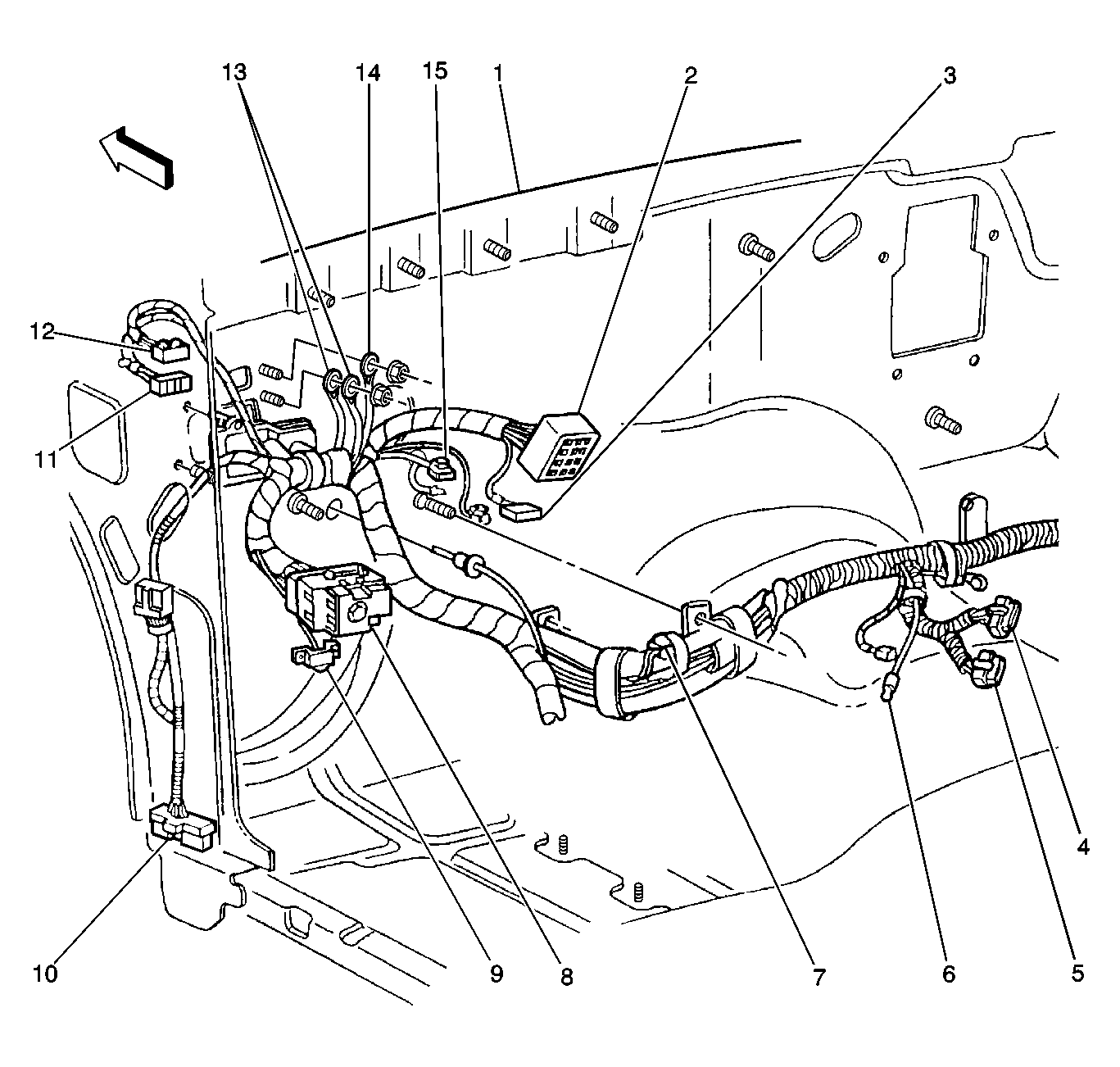

Fig 9: Instrument Panel, LF
GM357146Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 IP Bulkhead
2 C211
3 C214
4 Body Control Module (BCM) Connector C1
5 Body Control Module (BCM) Connector C2
6 IP Vacuum Harness Connector
7 Splice Pack SP202
8 Relay Block - Body
9 Data Link Connector (DLC)
10 C500
11 C209
12 C217
13 G200 and G202
14 G201
15 C214

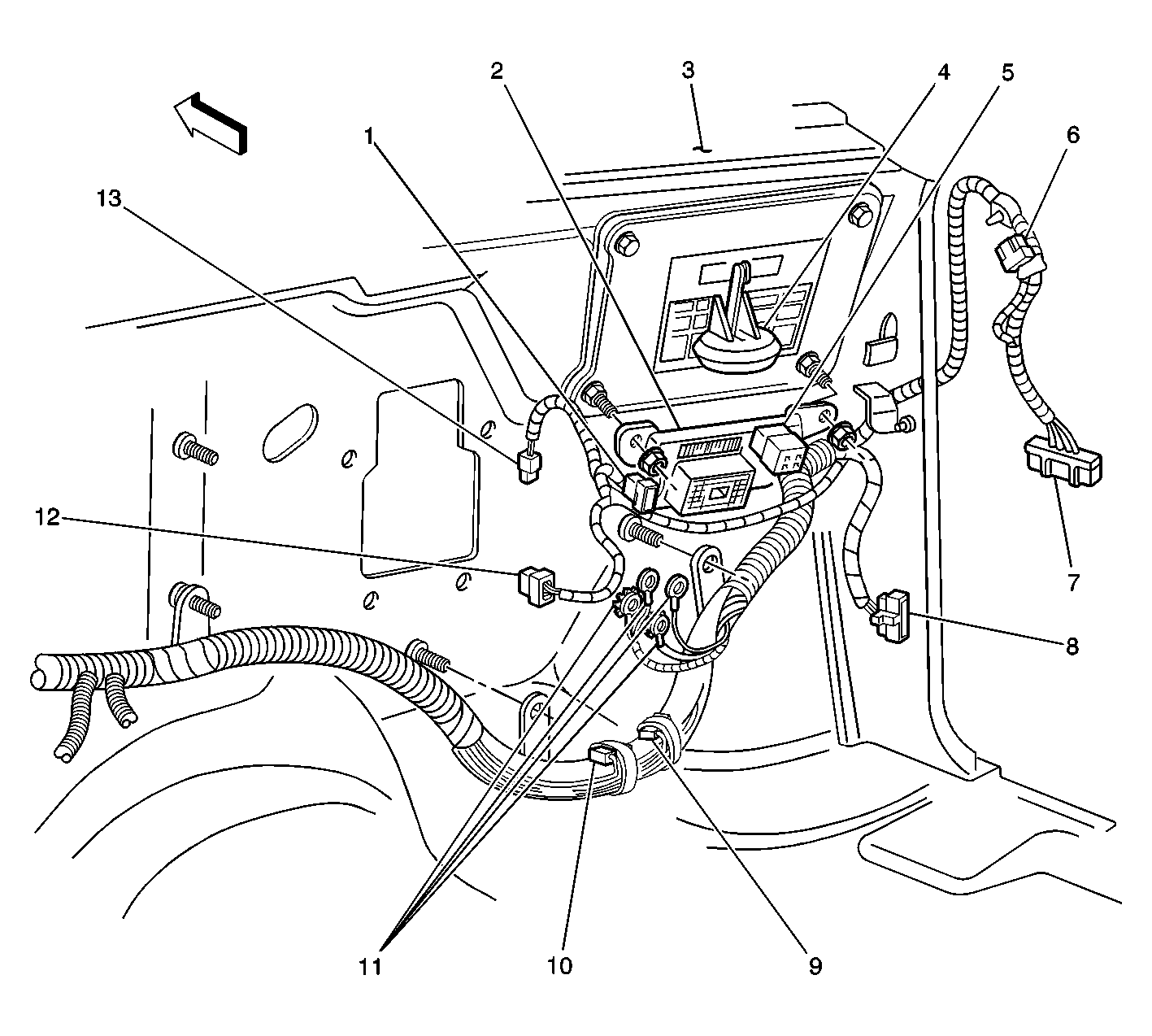

Fig 10: Instrument Panel, RF
GM738663Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C102
2 C203
3 Instrument Panel
4 Recirculation Door Motor
5 Turn Signal/Hazard Flasher Module
6 C601
7 C600
8 Transfer Case Shift Control Module Connector
9 Splice Pack SP200
10 Splice Pack SP204
11 G203, G204, G205, and G206
12 Vacuum Control Assembly (w/ Auto A/C)
13 Air Temperature Actuator Connector

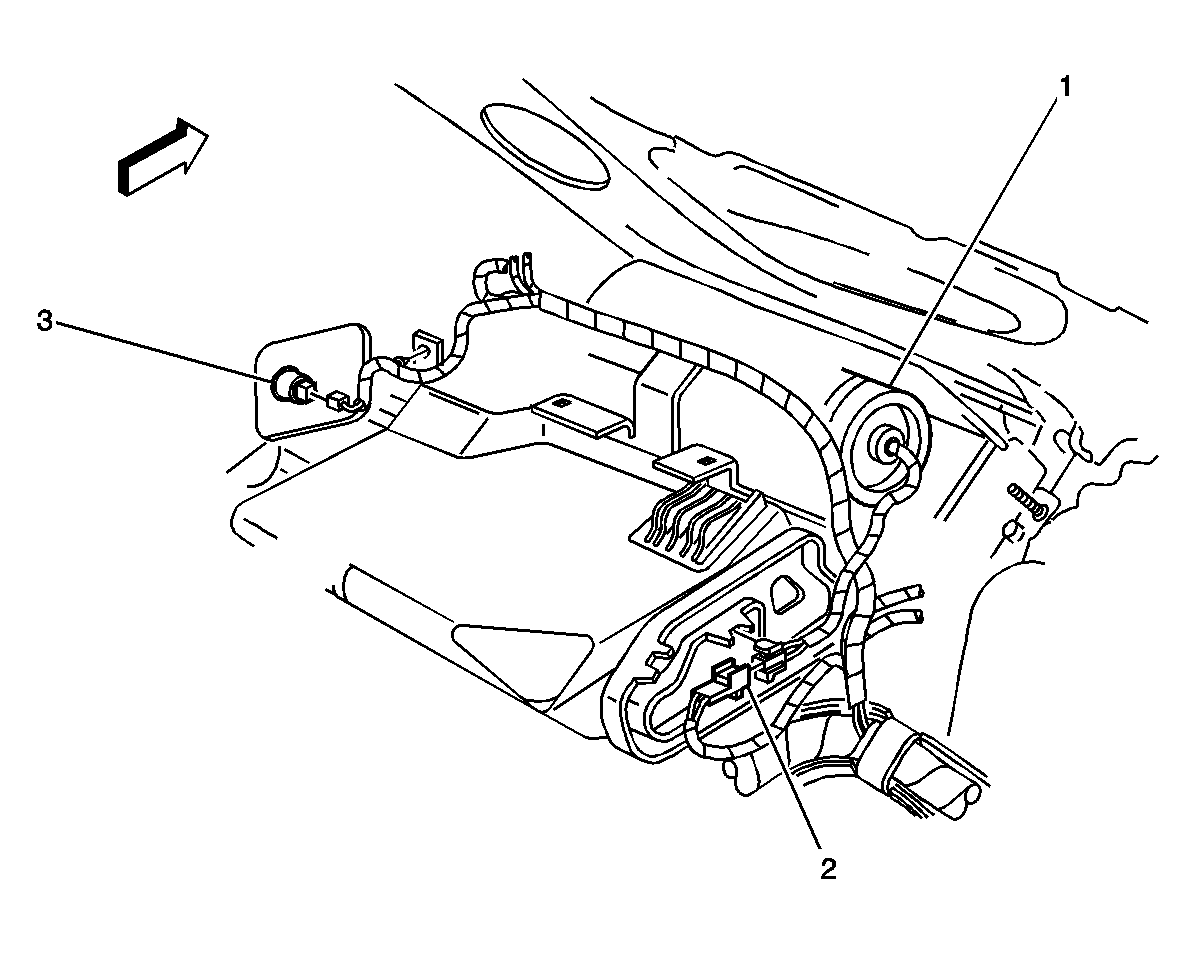

Fig 11: IP Wiring Harness
GM863431Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint IP Module
2 Inflatable Restraint IP Module Connector
3 Door Jamb Switch - Front Passenger

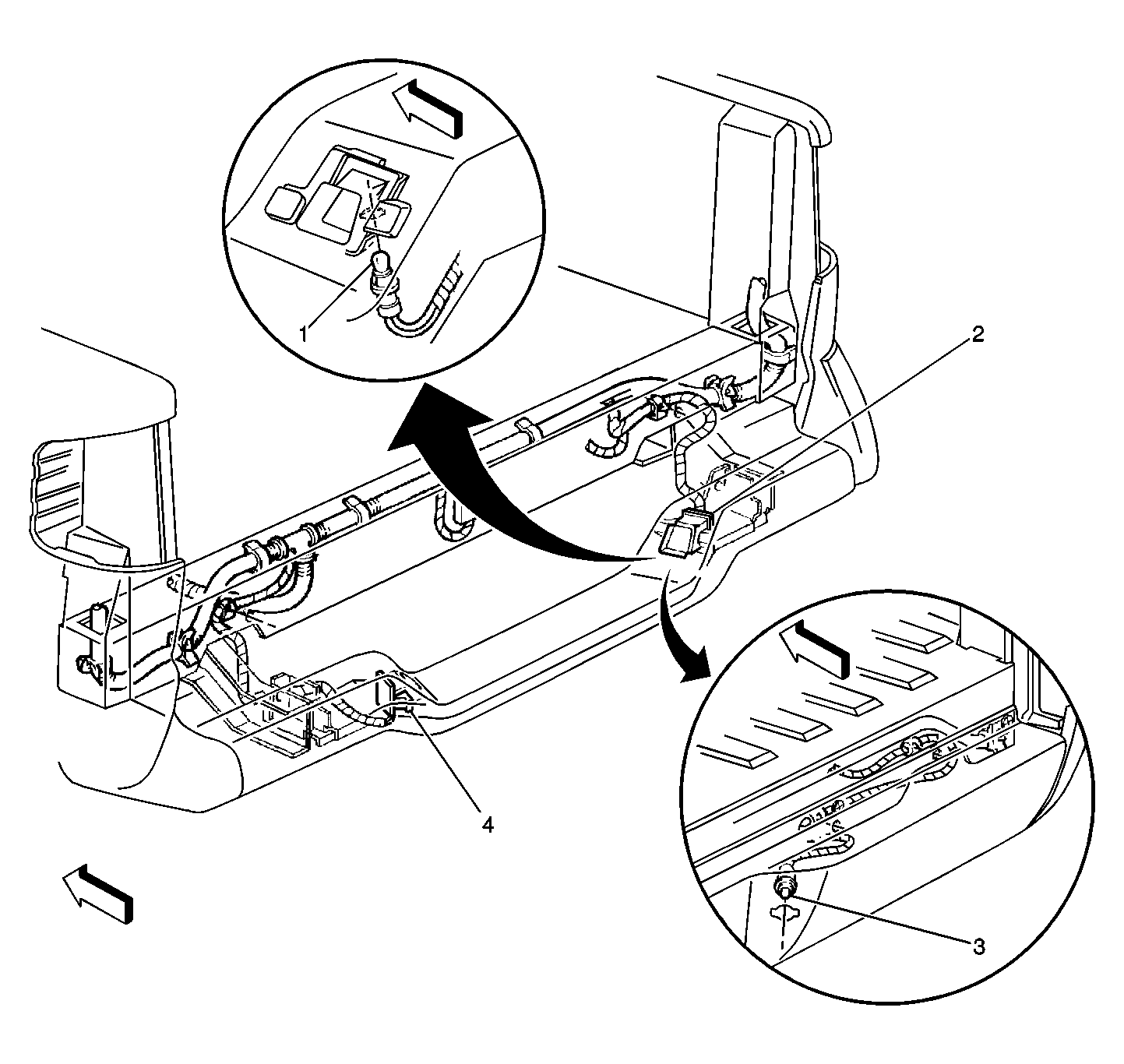

Fig 12: License Lamp Wiring (Fleetside Pickup)
GM357374Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 License Lamp Bulb
2 License Lamp
3 License Lamp Bulb
4 License Lamp

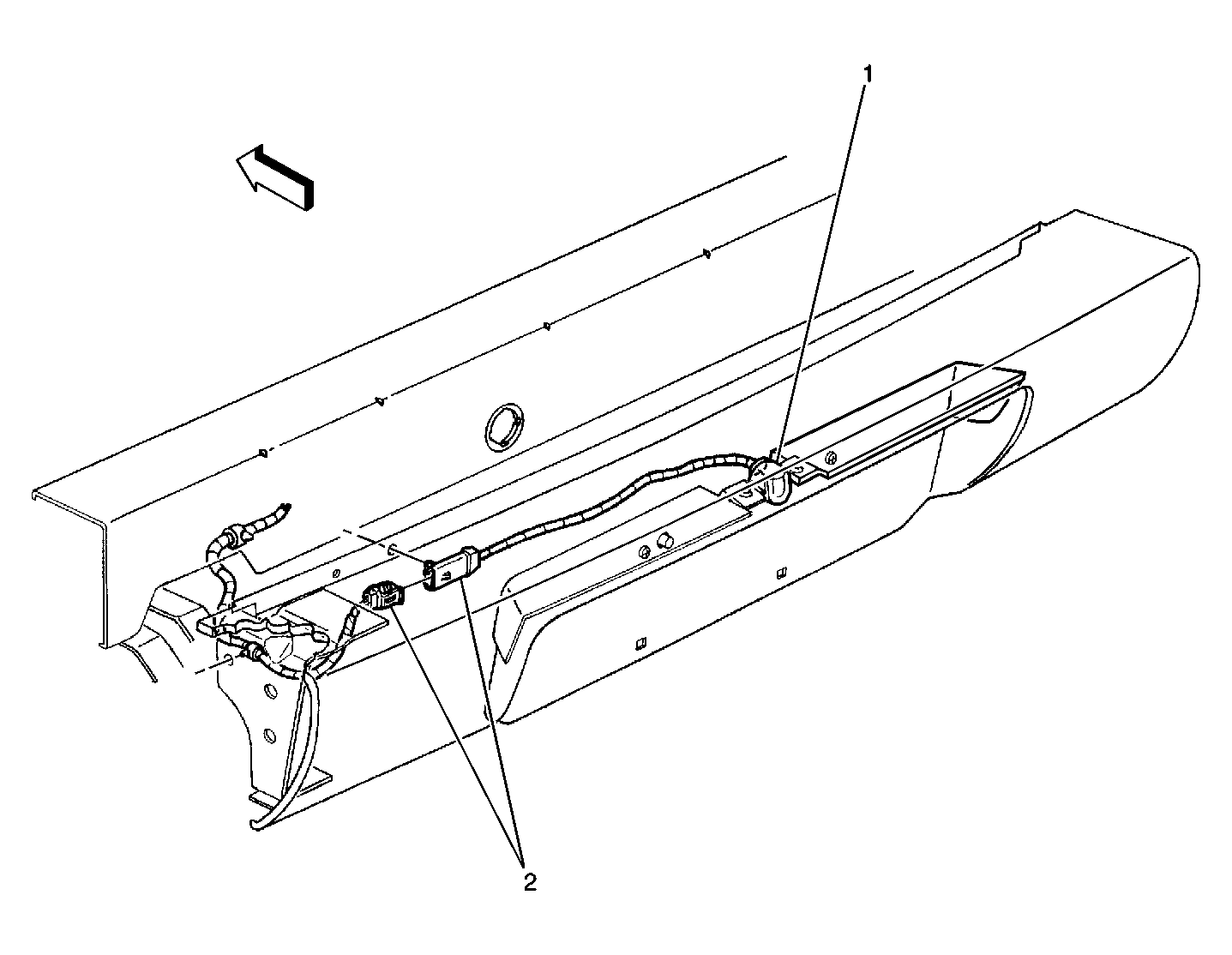

Fig 13: License Lamp Wiring (Sportside Pickup)
GM357377Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 License Plate - Center
2 C430
Fig 14: License Lamp Wiring (Utility)
GM357381Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 License Lamp
2 License Lamp
3 License Lamp Harness
4 Bumper - Rear
Fig 15: License Lamp Wiring (Sportside Pickup)
GM357377Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 License Plate - Center
2 C430

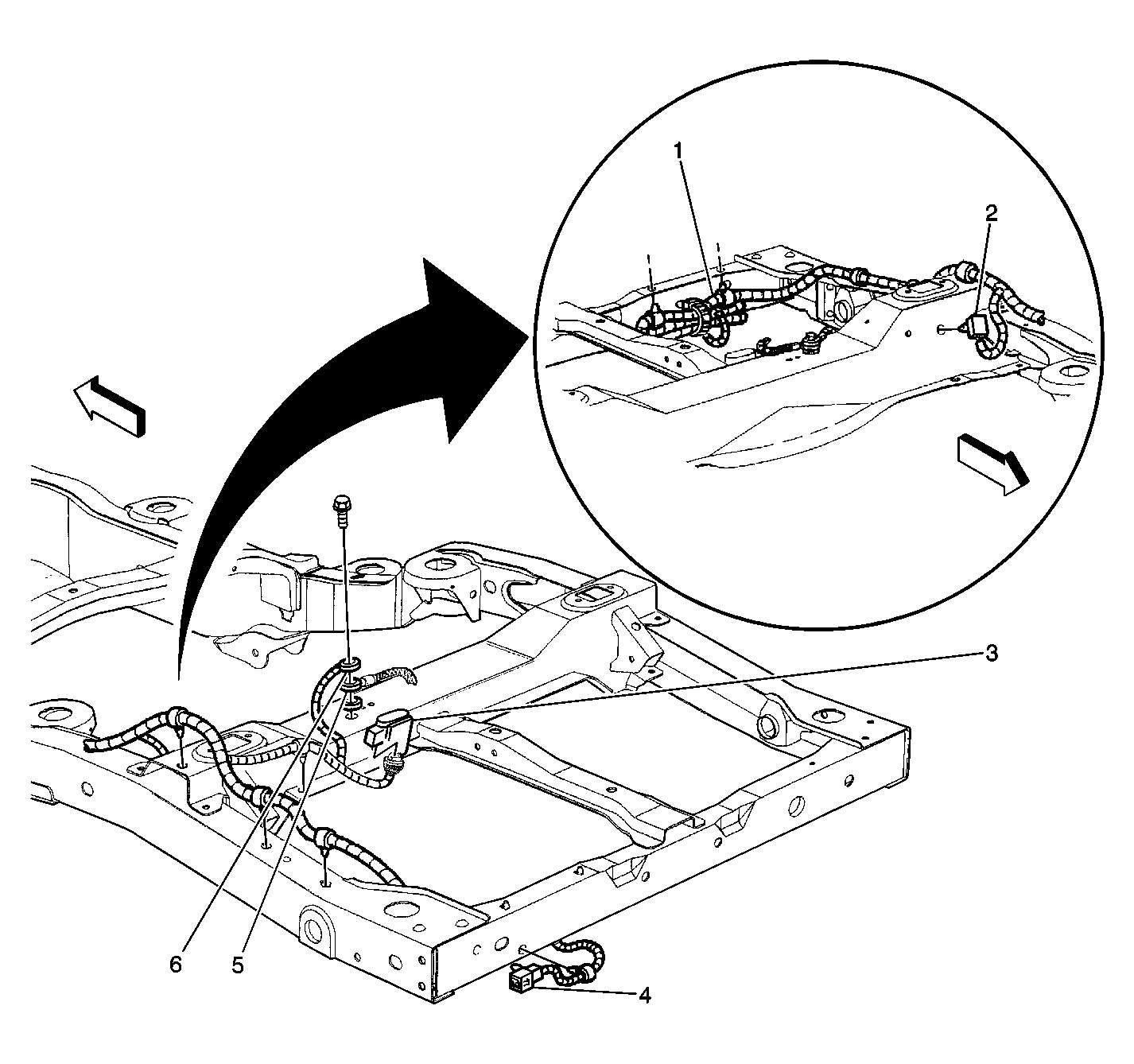

Fig 16: Rear Frame (4-Door Utility)
GM357334Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Trailer Wiring Provision
2 Splice Pack SP423
3 Evaporative Emissions (EVAP) Canister Vent Solenoid
4 C430
5 Fuel Filler Neck Ground Strap
6 G402

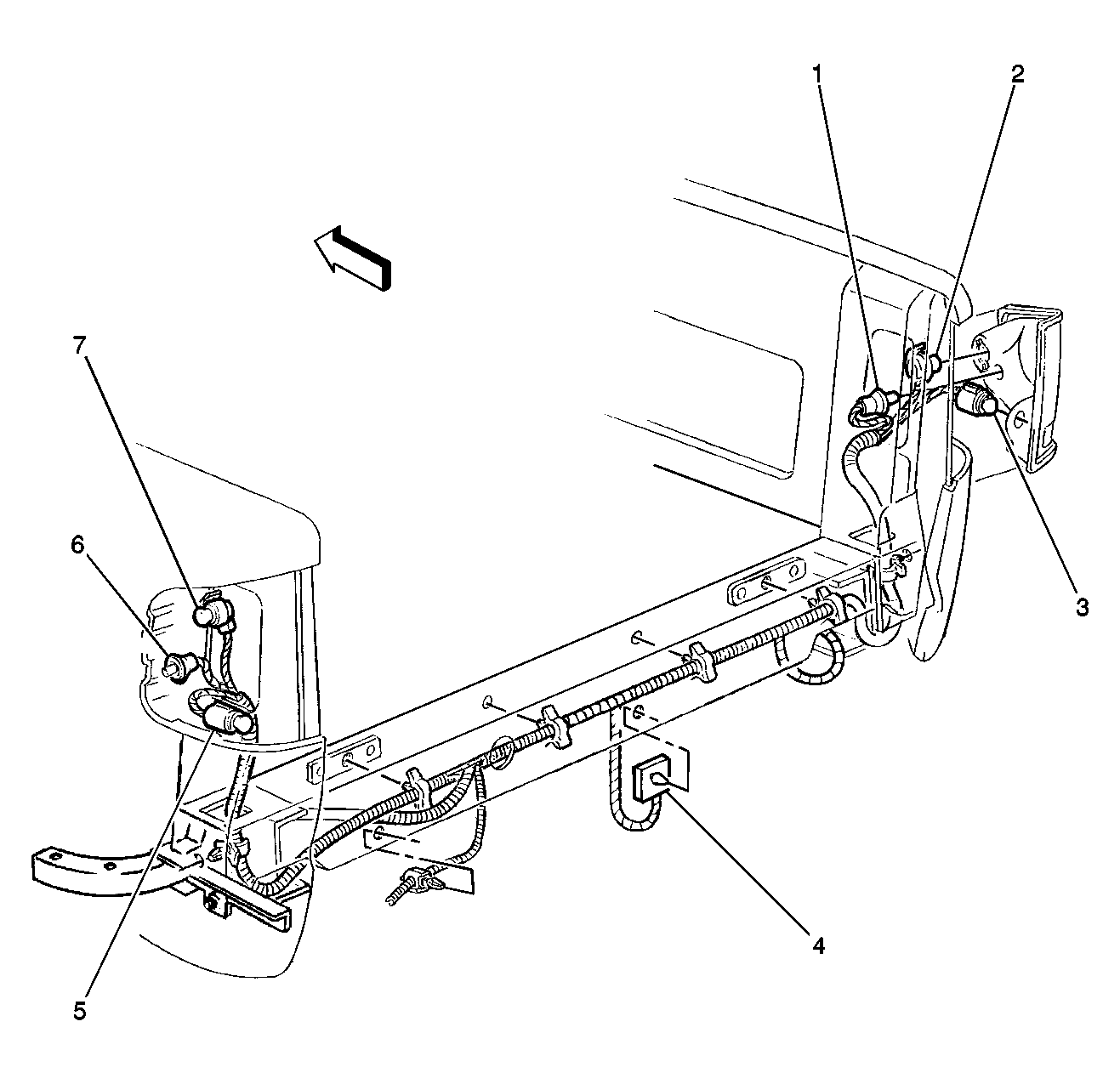

Fig 17: Rear Lamps (Pickup)
GM357373Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Marker Lamp - RR
2 Park/Turn Signal Lamp - RR
3 Backup Lamp - Right
4 Splice Pack SP400
5 Backup Lamp - Left
6 Marker Lamp - LR
7 Park/Turn Signal Lamp - LR

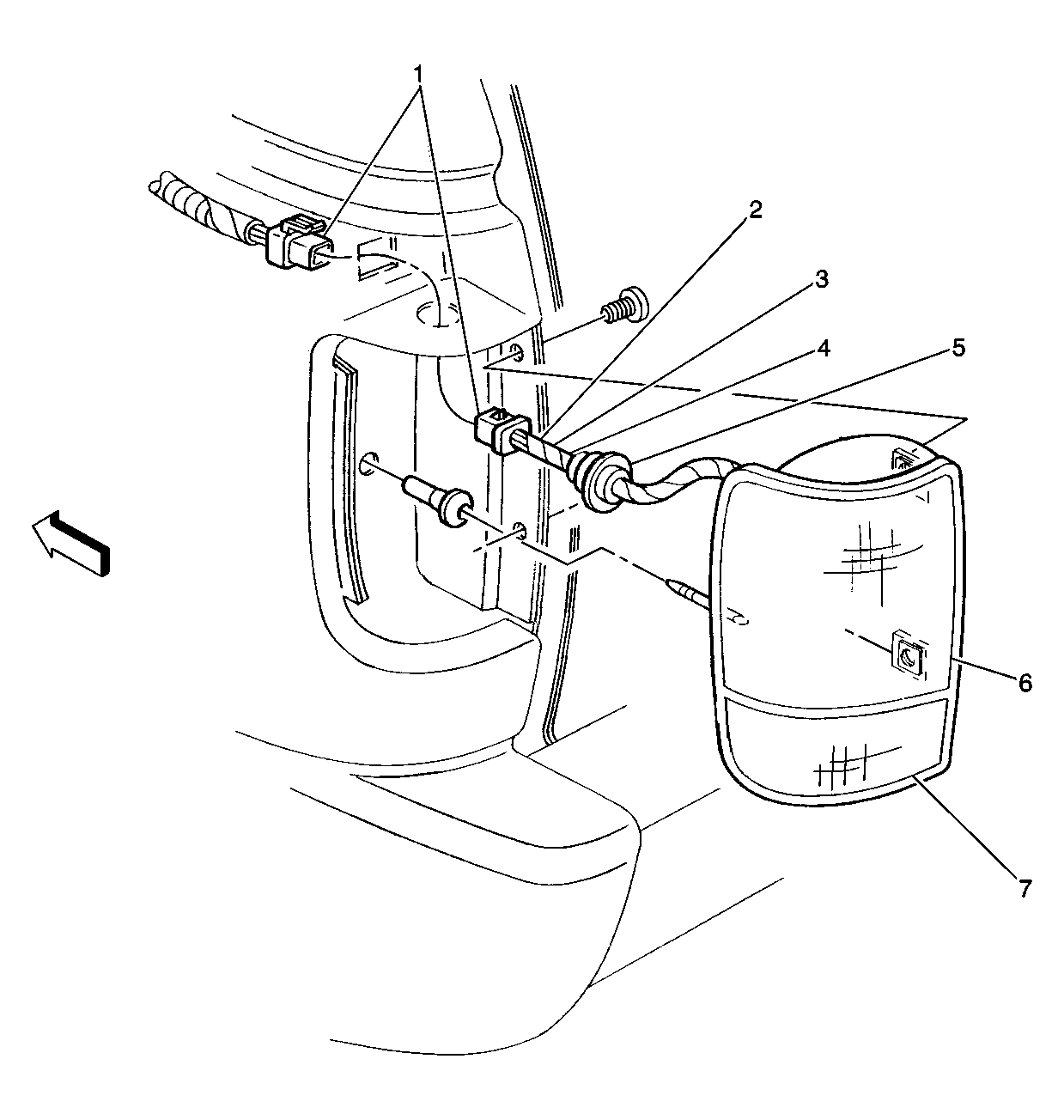

Fig 18: Rear Lamps Connection (Utility LH Side Shown, RH Side Similar)
GM357368Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C403 (LH) and C402 (RH)
2 S417 (LH) and S418 (RH)
3 S415 (LH) and S416 (RH)
4 S419 (LH) and S420 (RH)
5 P402 (LH) and P403 (RH)
6 Park/Turn Signal Lamps - LR (RR Similar) Upper and Lower
7 Backup Lamp - Left (Right Similar)

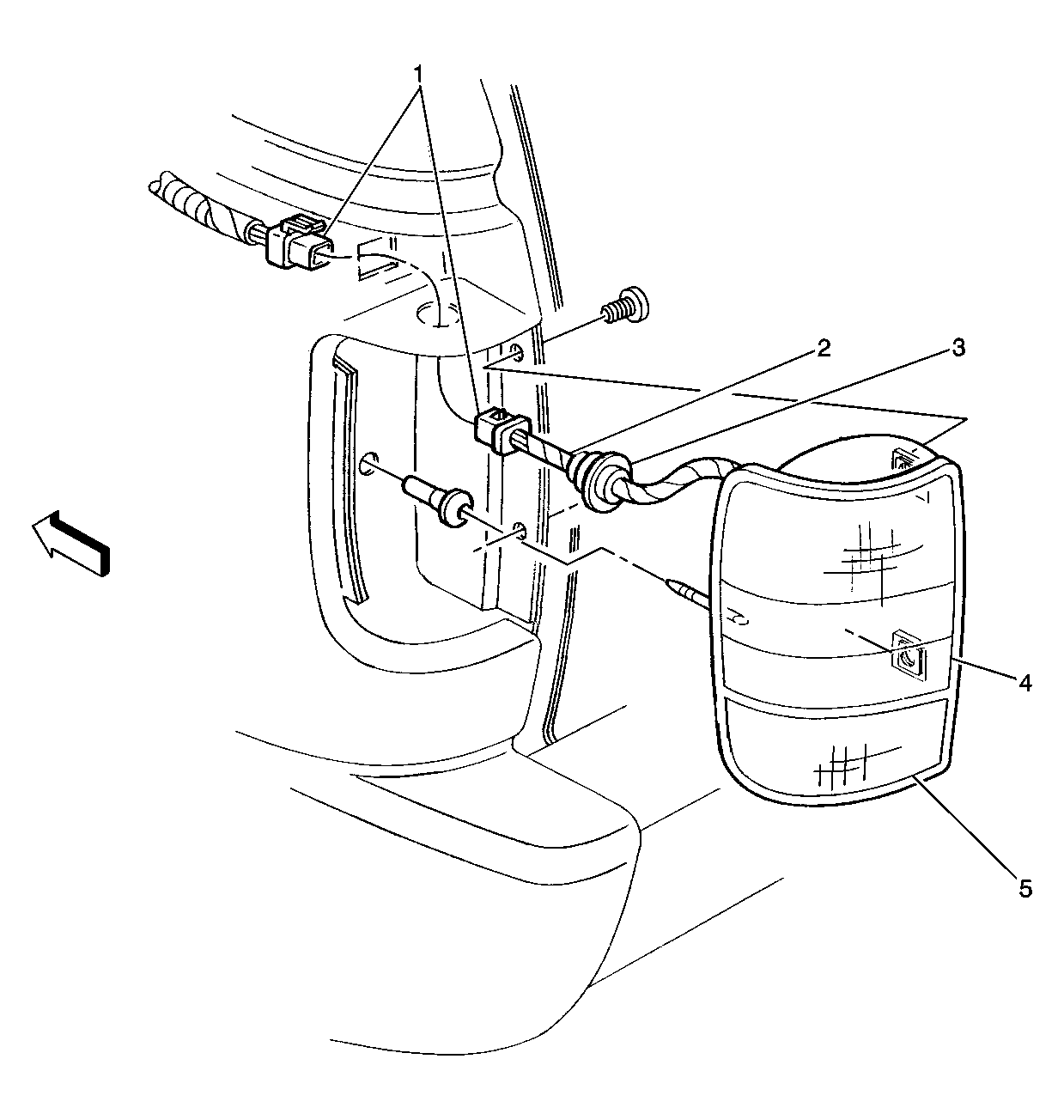

Fig 19: Rear Lamp Connections (Export)
GM406332Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C403 (LH) and C402 (RH)
2 S419 (LH) and S420 (RH)
3 P402 (RH) and P403 (LH)
4 Tail, Turn Signal, and Backup Lamps, LR (RR Opposite)
5 Fog Lamp - Rear

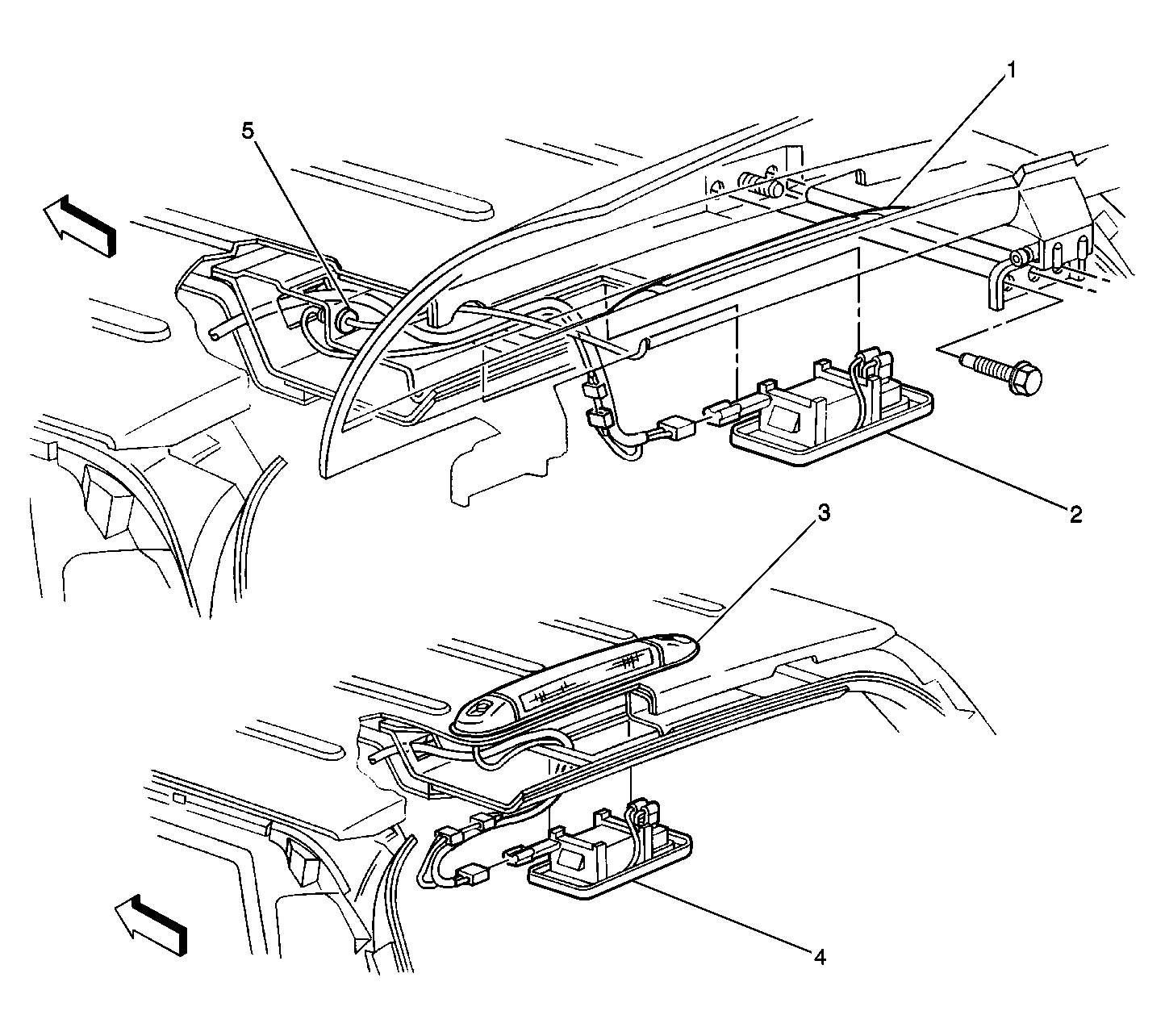

Fig 20: Rear Roof (Utility)
GM357361Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Center High Mounted Stop Lamp (CHMSL) (w/ Endgate)
2 Cargo Lamp (w/ Endgate)
3 Center High Mounted Stop Lamp (CHMSL) (w/ Liftgate)
4 Cargo Lamp (w/ Liftgate)
5 P904 (w/ Endgate)

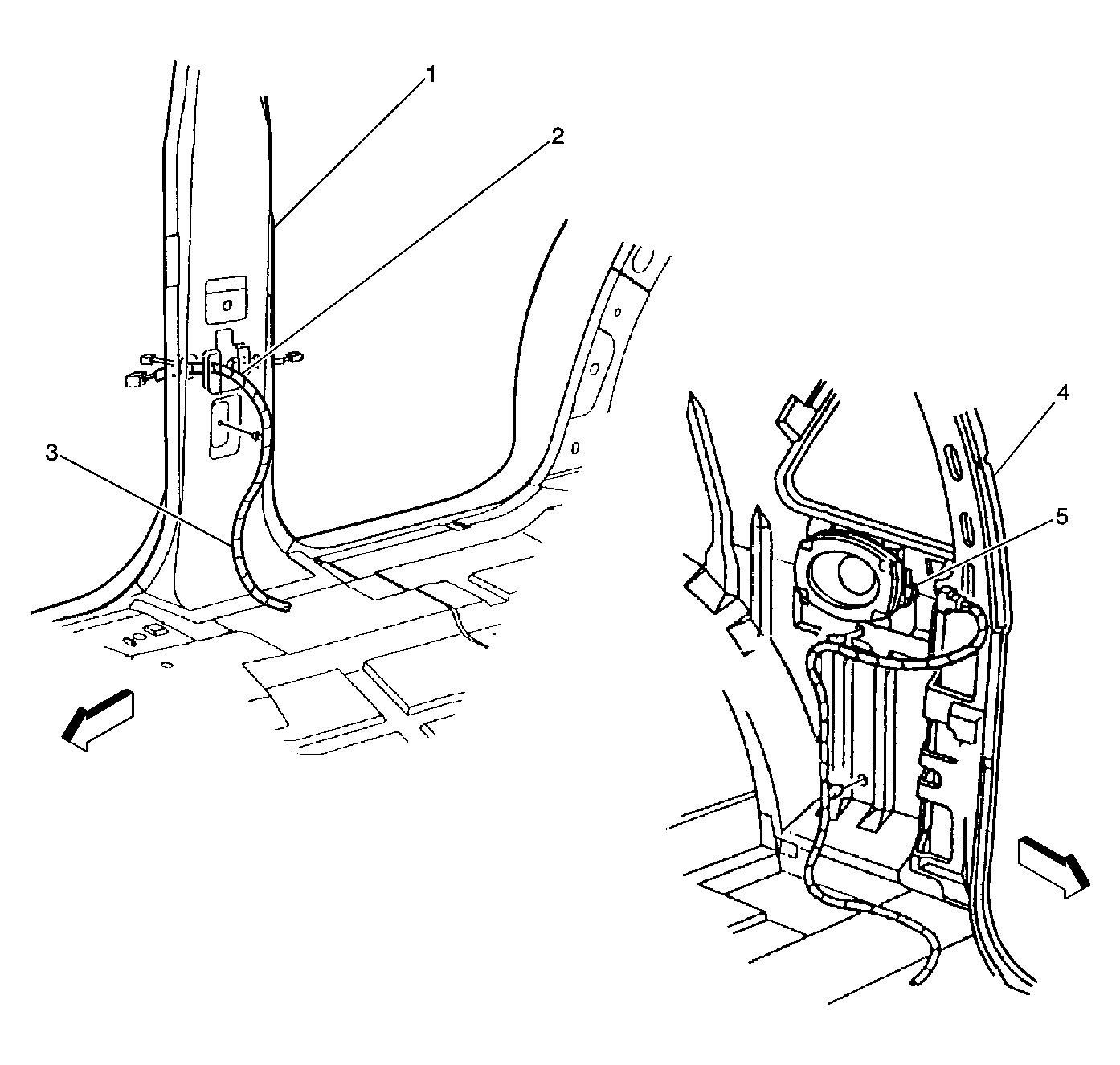

Fig 21: Door Jamb Switch Harness and Connector, RR (LR Similar)
GM357310Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Opening Frame (4-Door)
2 Door Jamb Switch Harness and Connector
3 S305 (Right) or S308 (Left) (4-Door)
4 Body Side Panel - Right (2-Door)
5 Speaker - RR (2-Door)
