Body Control System Schematics

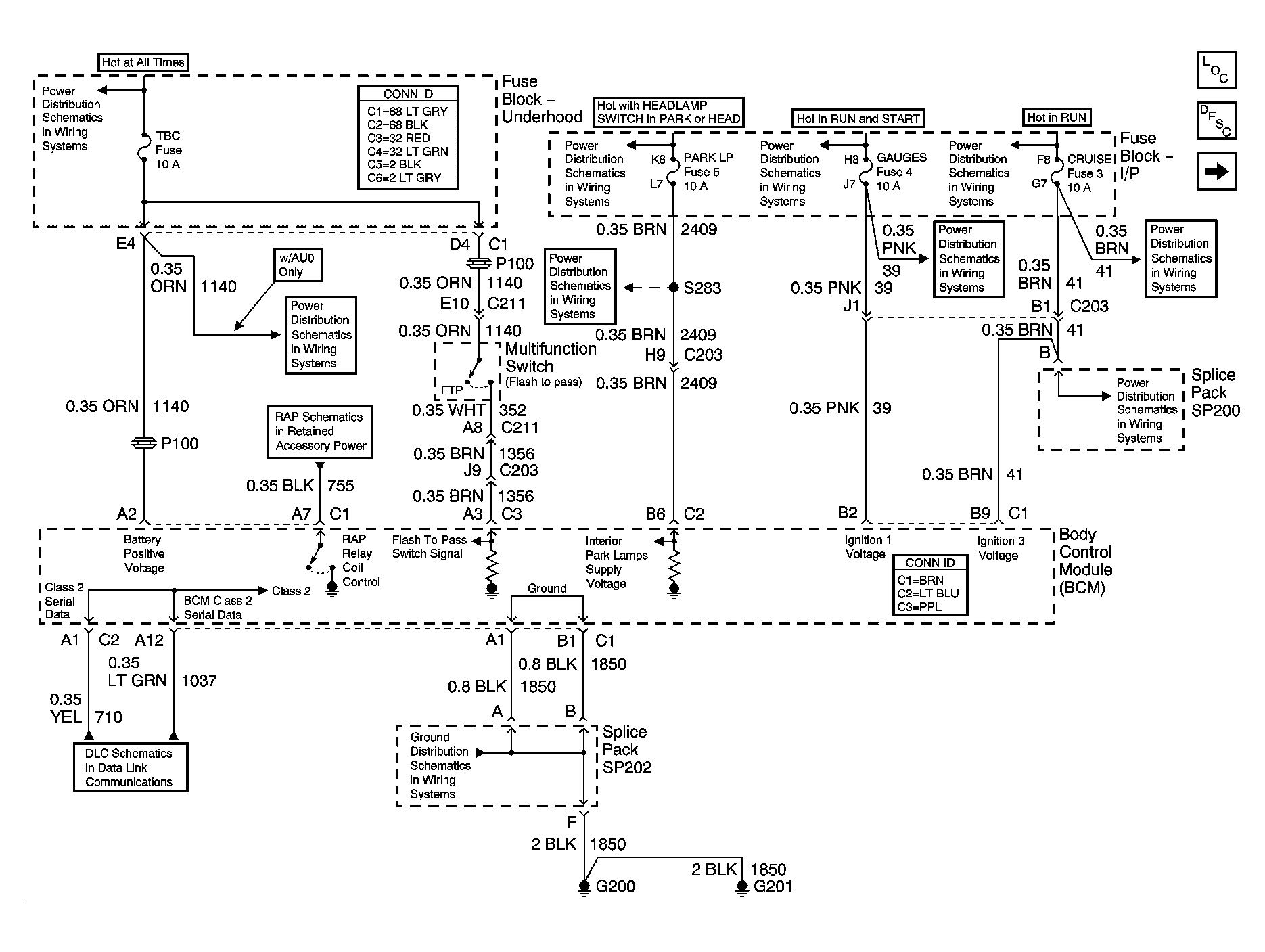

Fig 1: Power and Ground Schematic
GM755670Courtesy of GENERAL MOTORS CORP.
Fig 2: Controlled/Monitored Subsystem References Schematic
GM755675Courtesy of GENERAL MOTORS CORP.
Fig 3: Interior Lights References Schematic
GM755678Courtesy of GENERAL MOTORS CORP.

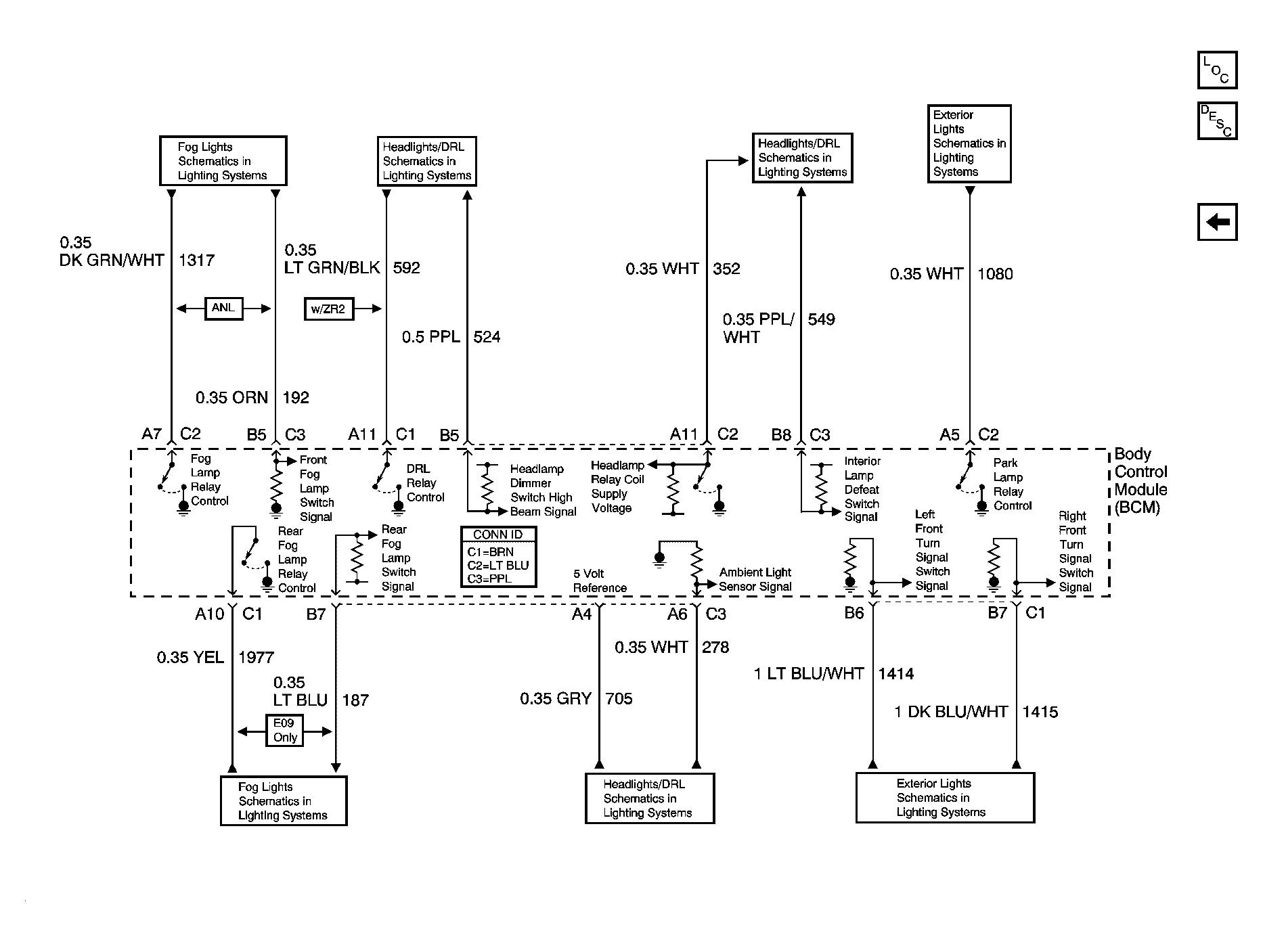

Fig 4: Exterior Lights References Schematic
GM755679Courtesy of GENERAL MOTORS CORP.
