Body Control System Component Views
Body Control System Component Views

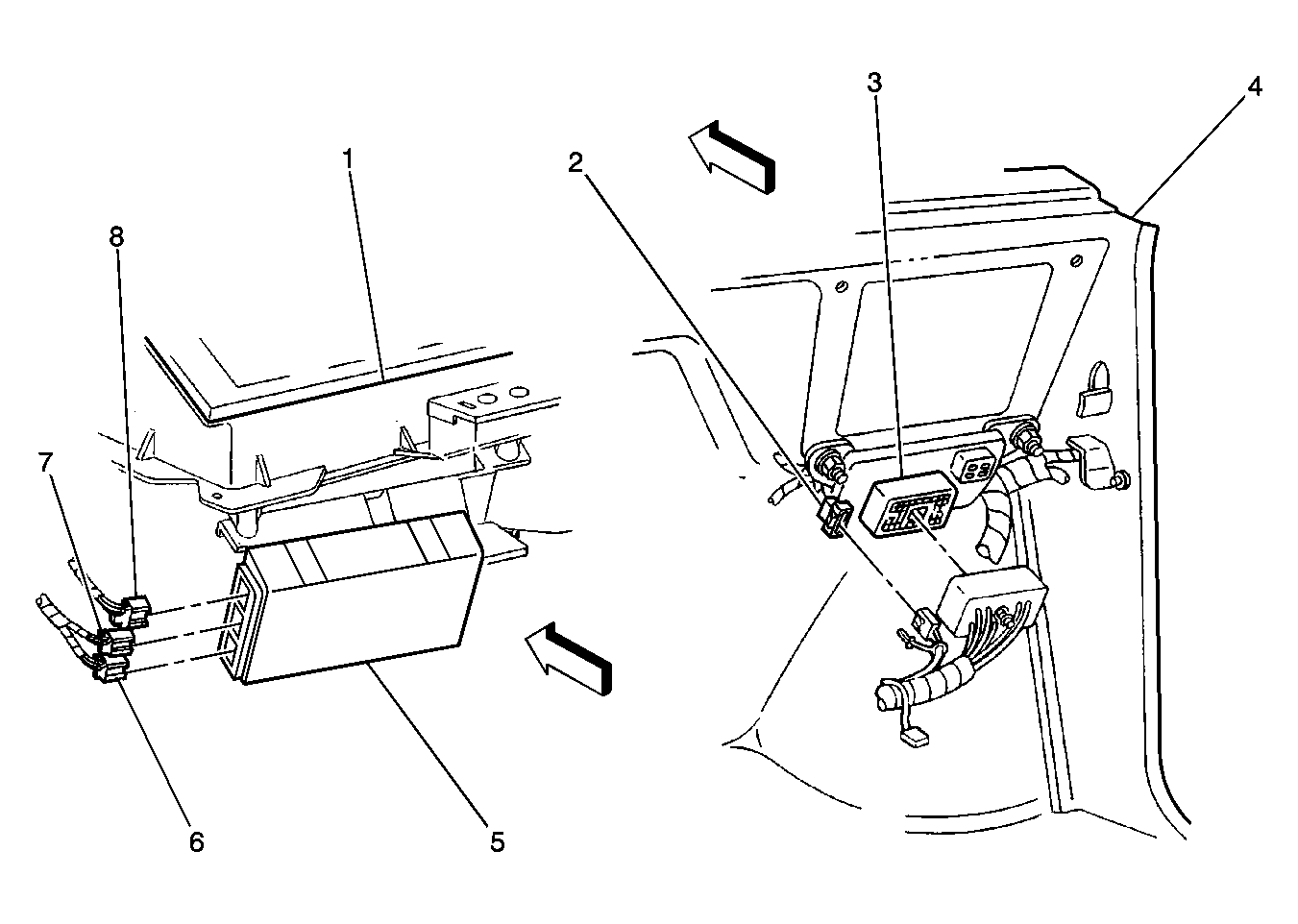

Fig 1: Instrument Panel Details, RH
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Heater Controls
2
C200
3
C203
4
Instrument Panel (IP)
5
Body Control Module (BCM)
6
Body Control Module (BCM), Connector C1
7
Body Control Module (BCM), Connector C2
8
Body Control Module (BCM), Connector C3
