Removal Procedure

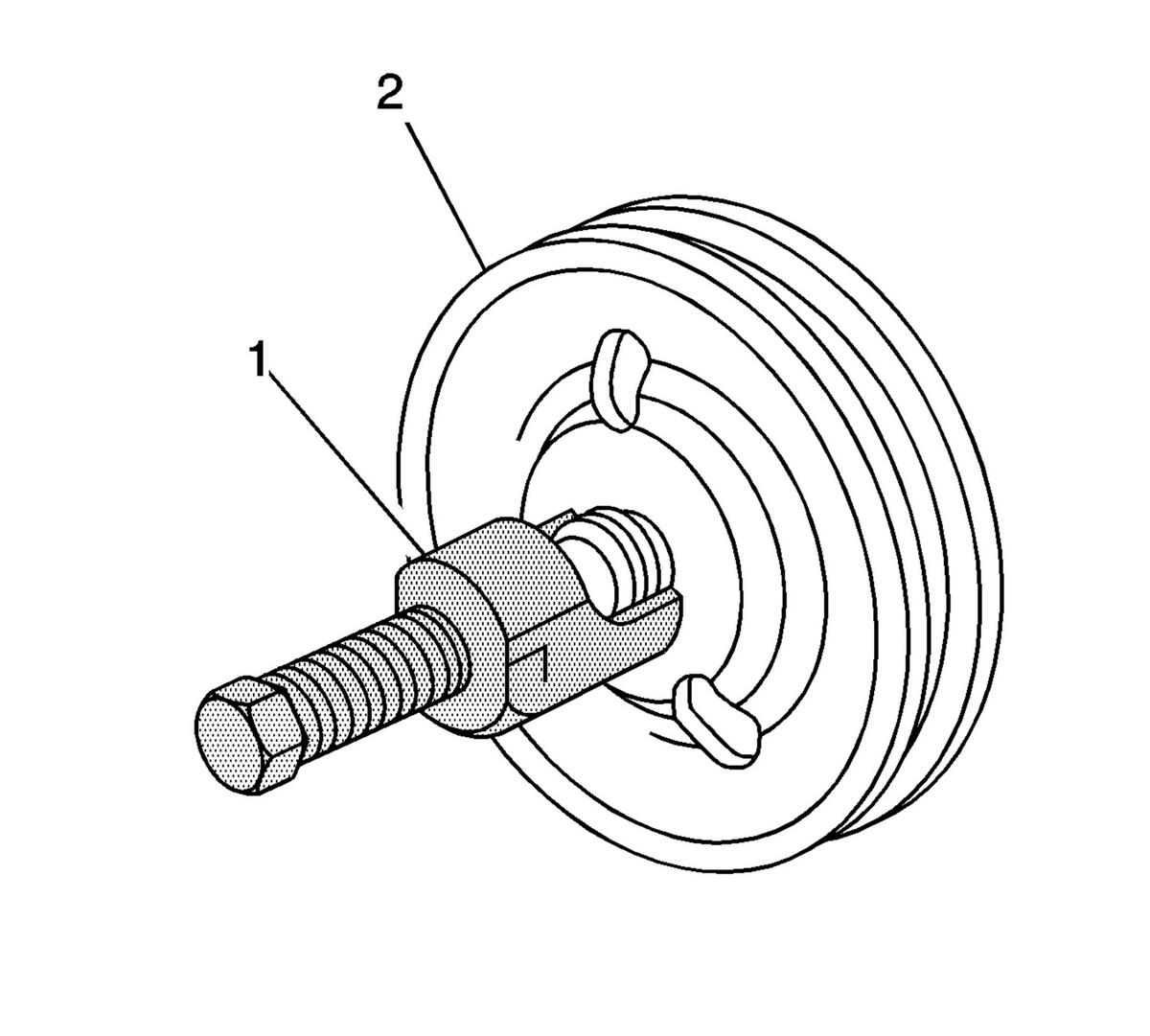

    Fig 1: View Of Power Steering Pump Pulley Remover
    GM649303Courtesy of GENERAL MOTORS CORP.
  1. Remove the fan clutch. Refer to Fan Clutch Replacement in Engine Cooling.
  2. Remove the drive belt. Refer to Drive Belt Replacement in Engine Mechanical 4.3L.
  3. Remove the power steering pump pulley using J 25034-C  .
