Installation Procedure

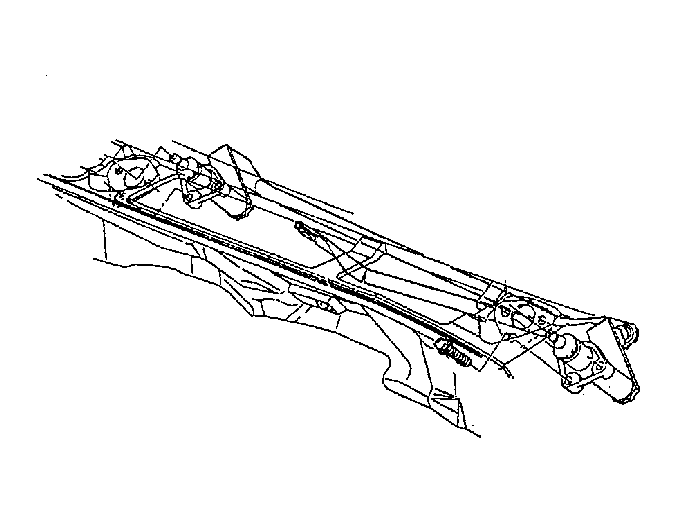

    Fig 1: View Of Wiper Transmission
    GM443597Courtesy of GENERAL MOTORS CORP.
  1. Install the transmission to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the transmission mounting screws.

    Tighten:  Tighten the wiper transmission mounting screws to 8 N.m (70 lb in).

    3. Fig 2: Assembling Wiper Transmission to Crank Arm
    GM429902Courtesy of GENERAL MOTORS CORP.
    IMPORTANT:
    • Lubricate the inside of the socket with white lithium grease (GM P/N 9985885) or equivalent.
    • The wiper transmission must be assembled to the crank arm past the second detent so the seal is compressed to a maximum height of 25.5 mm (1 in).
  3. Install the transmission drive link to the wiper motor crank arm using the J 39529  .
  4. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement
  5. Install the wiper arms. Refer to Wiper Arm Replacement .
