Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Body Control Module (BCM) | Behind right kick panel. See Figure. |
| Electronic Brake Control Module (EBCM) | On inner left frame rail, beside transmission. See Figure. |
| Electronic Brake Control Module (EBCM) Connector | On inner left frame rail, beside transmission. See Figure. |

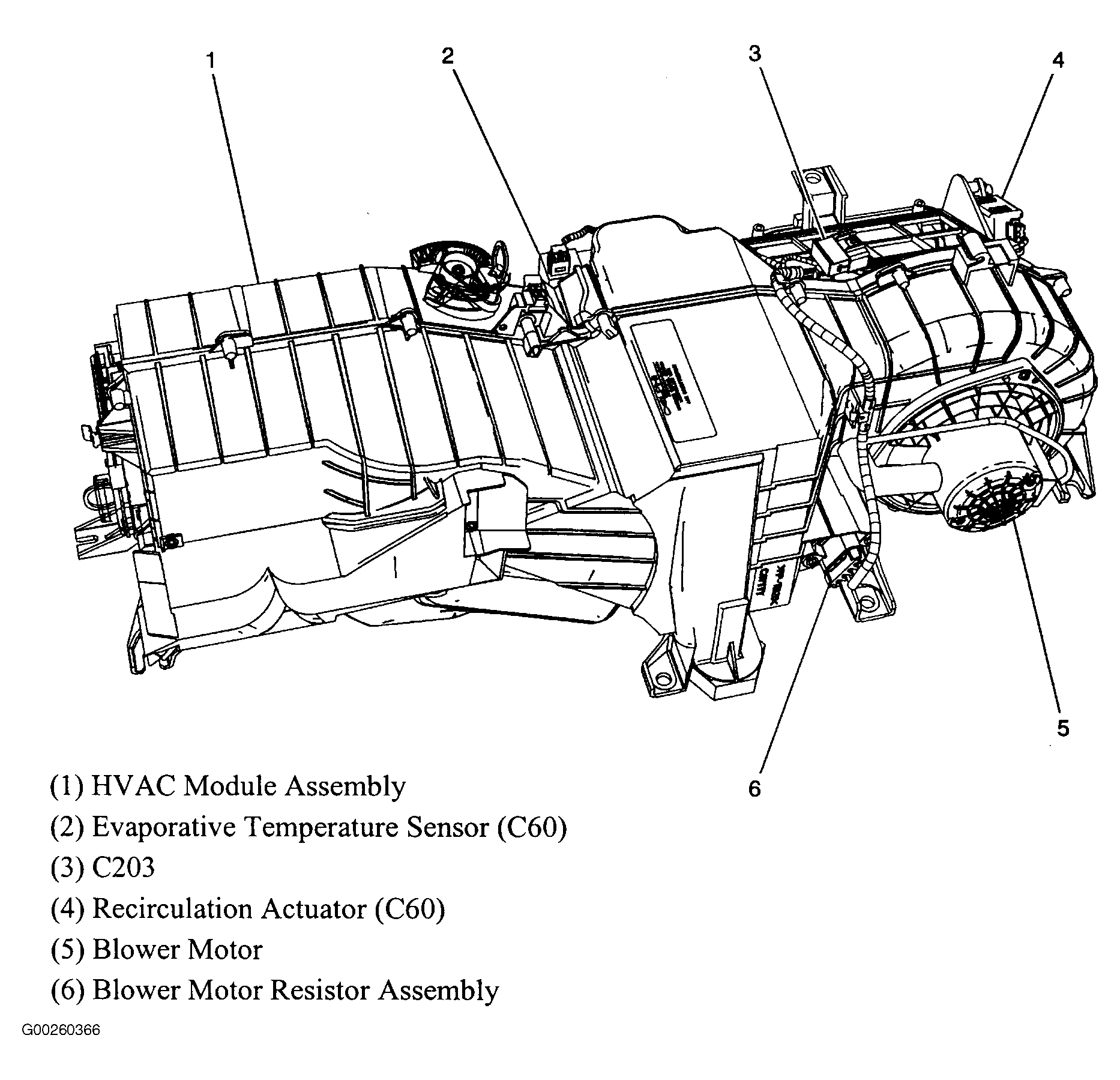

| HVAC Module Assembly | Under dash. See Figure. |
| Inflatable Restraint I/P Module | Right side of dash. See Figure. |
| Inflatable Restraint I/P Module Connector | Right side of dash. See Figure. |

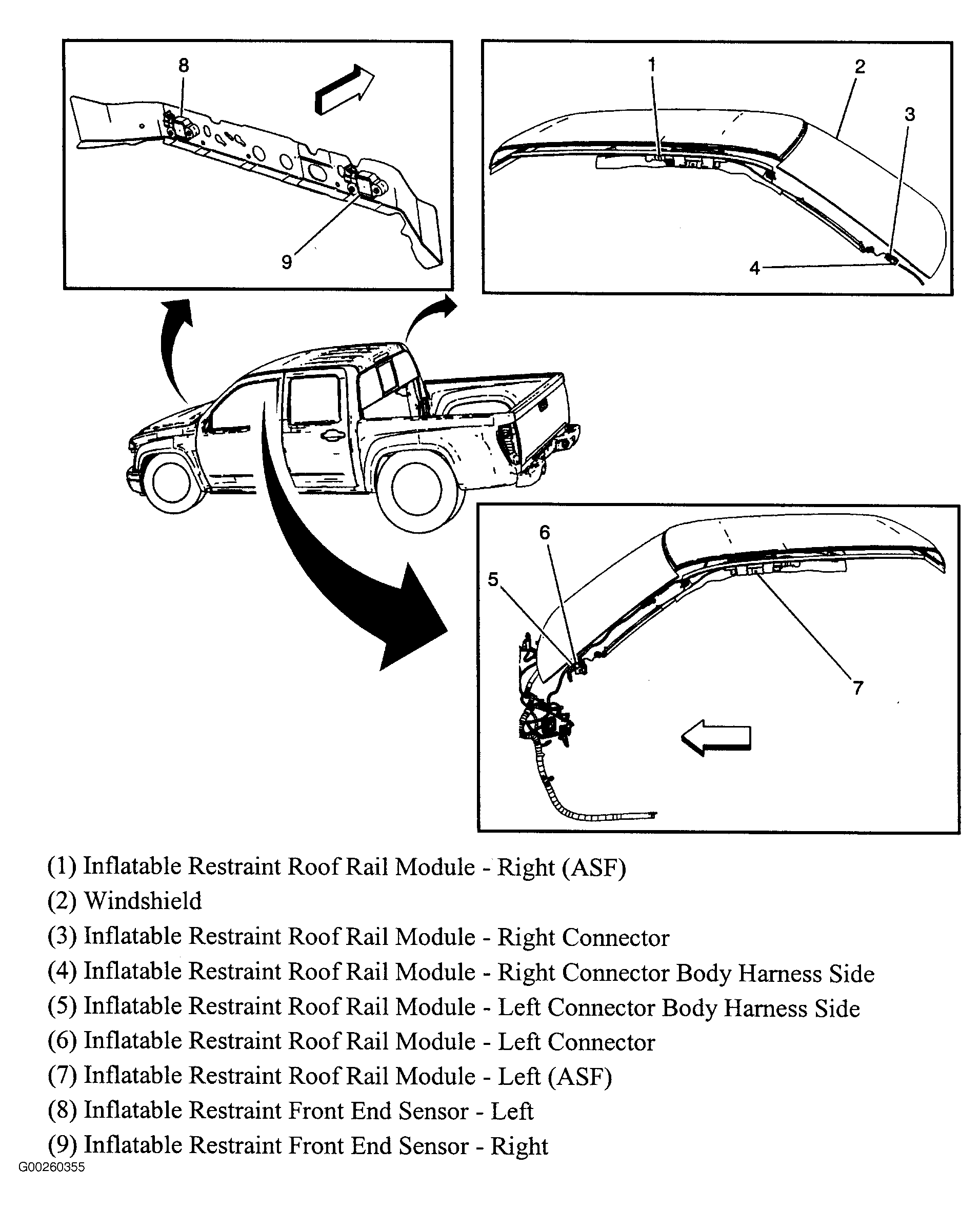

| Inflatable Restraint Roof Rail Module Connector (Right) | Right "A" pillar. See Figure. |
| Inflatable Restraint Roof Rail Module (Left) | In roof above driver door. See Figure. |
| Inflatable Restraint Roof Rail Module (Right) | In roof above front passenger door. See Figure. |
| Inflatable Restraint Roof Rail Sensor Connector (Left) | Left "A" pillar. See Figure. |
| Inflatable Restraint Sensing & Diagnostic Module | Beneath center console. See Figure. |

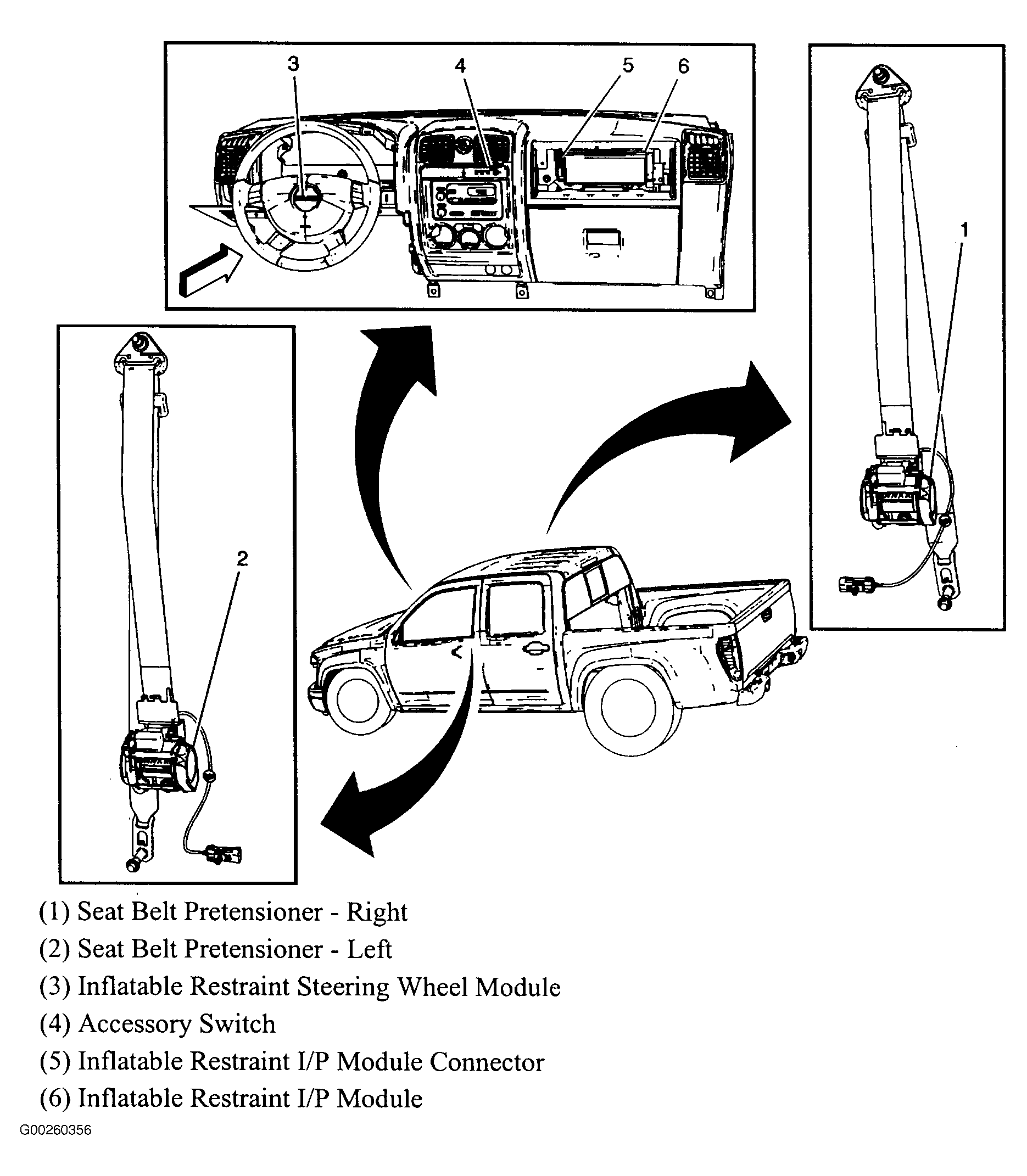

| Inflatable Restraint Steering Wheel Module | Top of steering wheel. See Figure. |

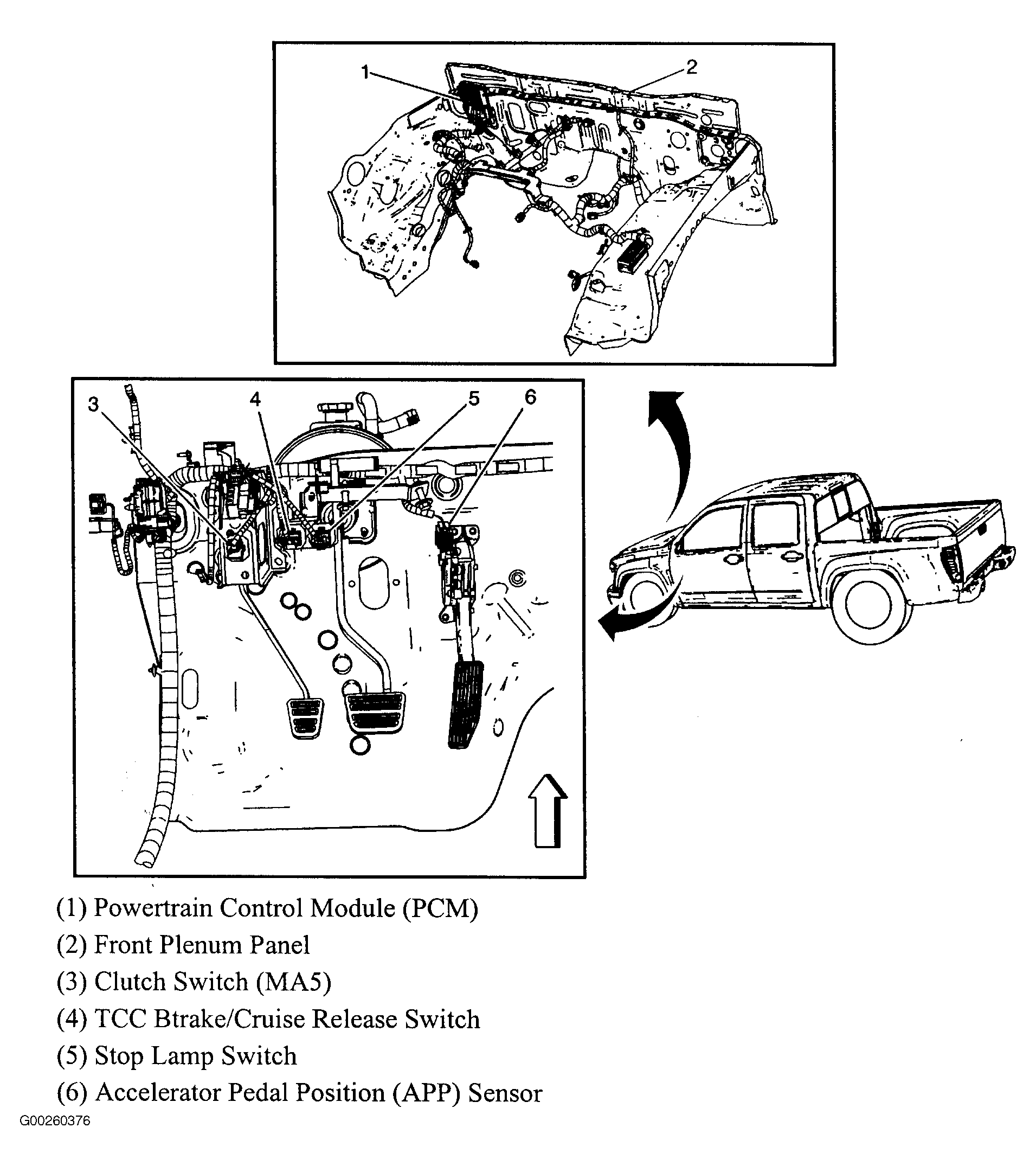

| Powertrain Control Module (PCM) | Right rear corner of engine compartment. See Figure. |
| Transfer Case Shift Control Module | Under driver's seat. See Figure & Figure . |
| Vehicle Communication Interface Module (VCIM) | Right side of dash. See Figure. |
