Electrical Component Locations
>>
Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

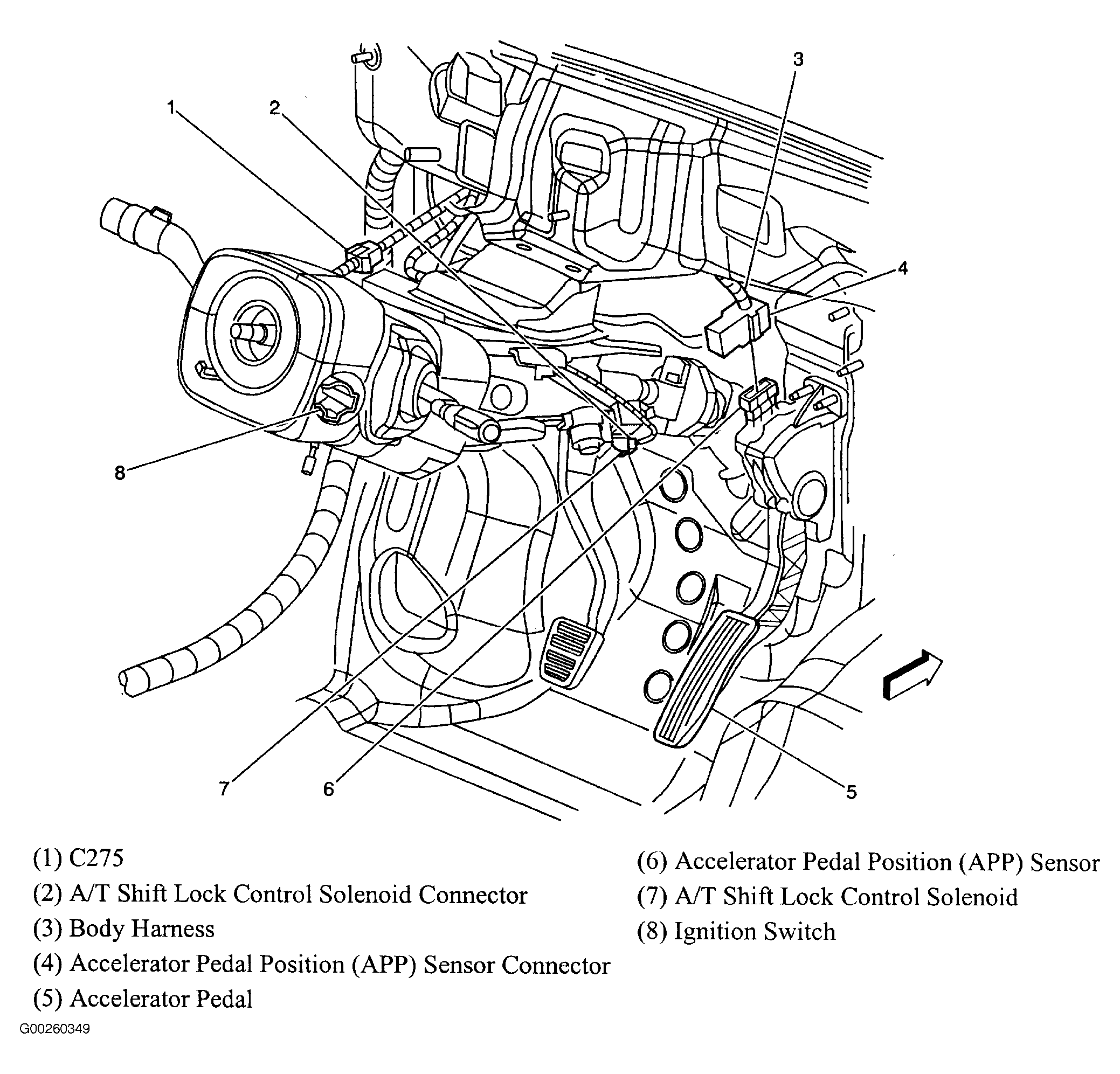

Fig 1: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

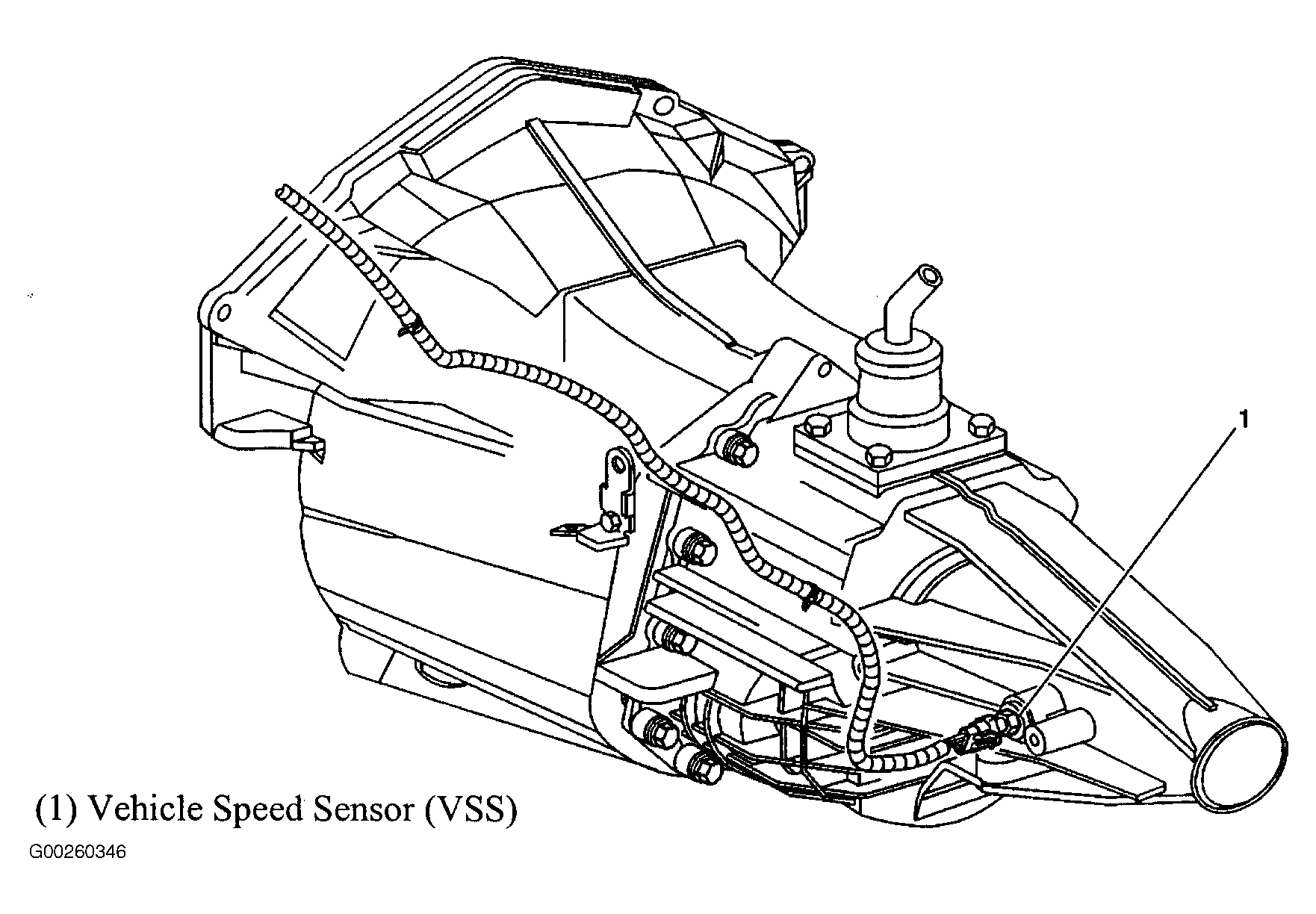

Fig 2: Manual Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 3: Front Axle
Courtesy of GENERAL MOTORS CORP.

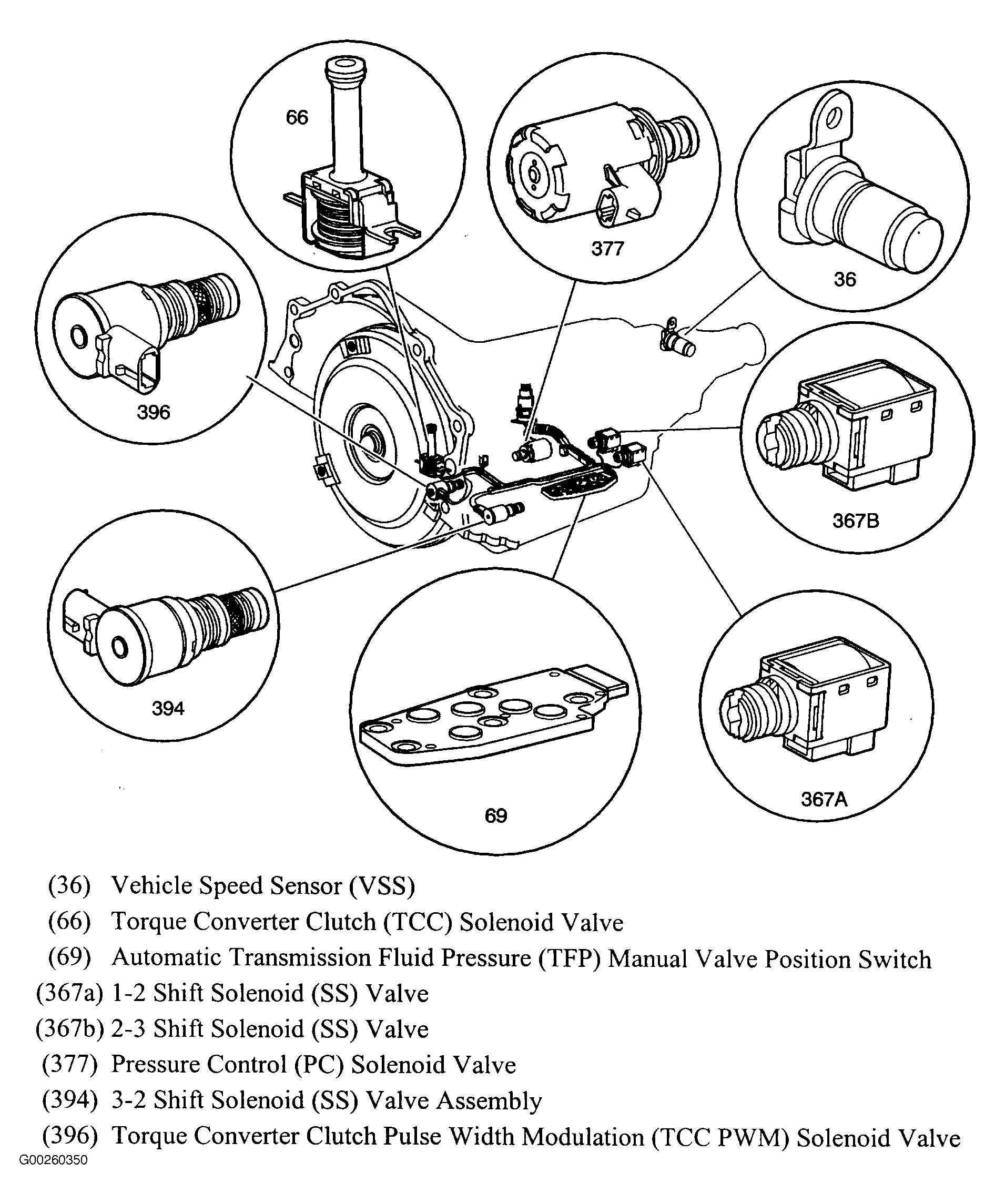

Fig 4: Automatic Transmission Overview
Courtesy of GENERAL MOTORS CORP.

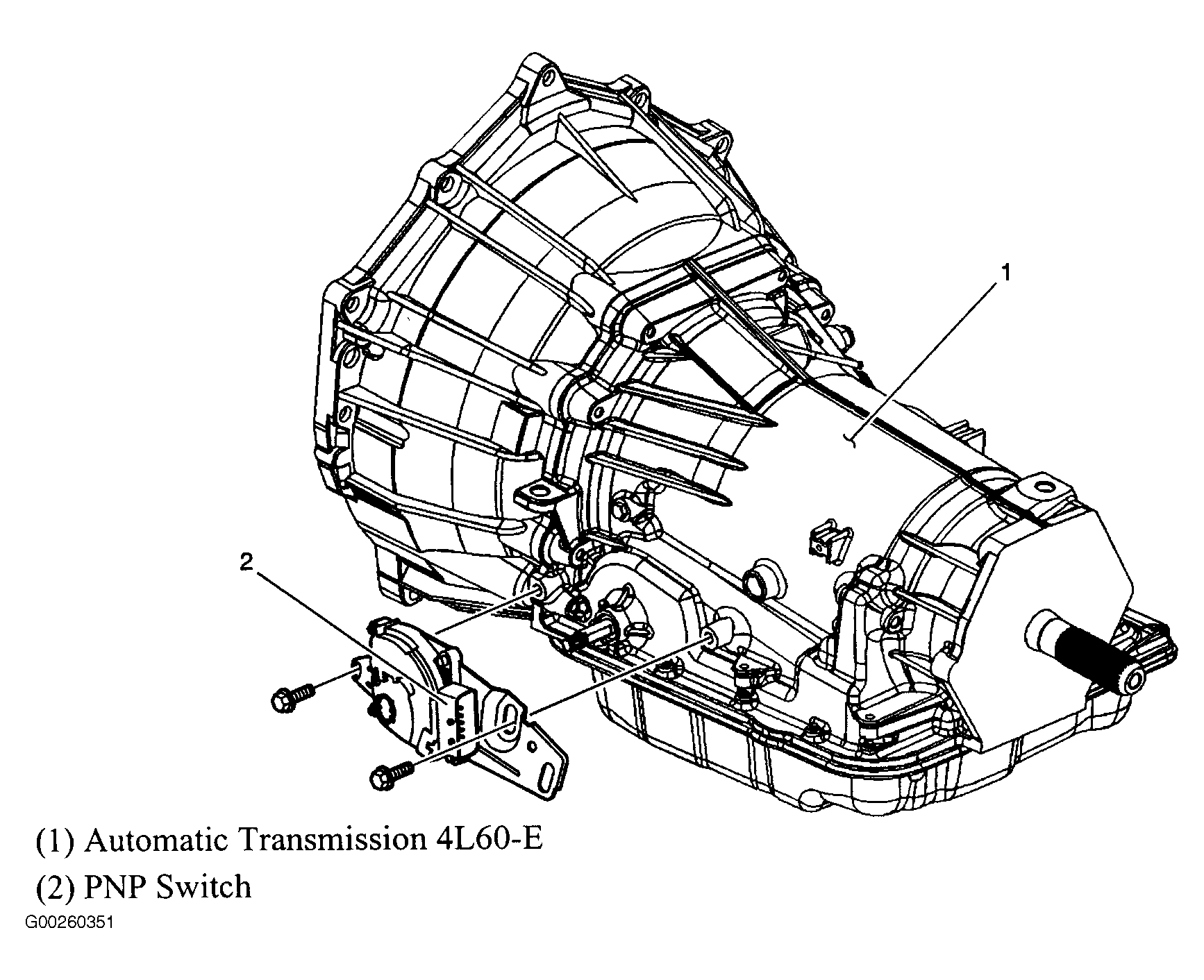

Fig 5: Automatic Transmission (Left Side)
Courtesy of GENERAL MOTORS CORP.

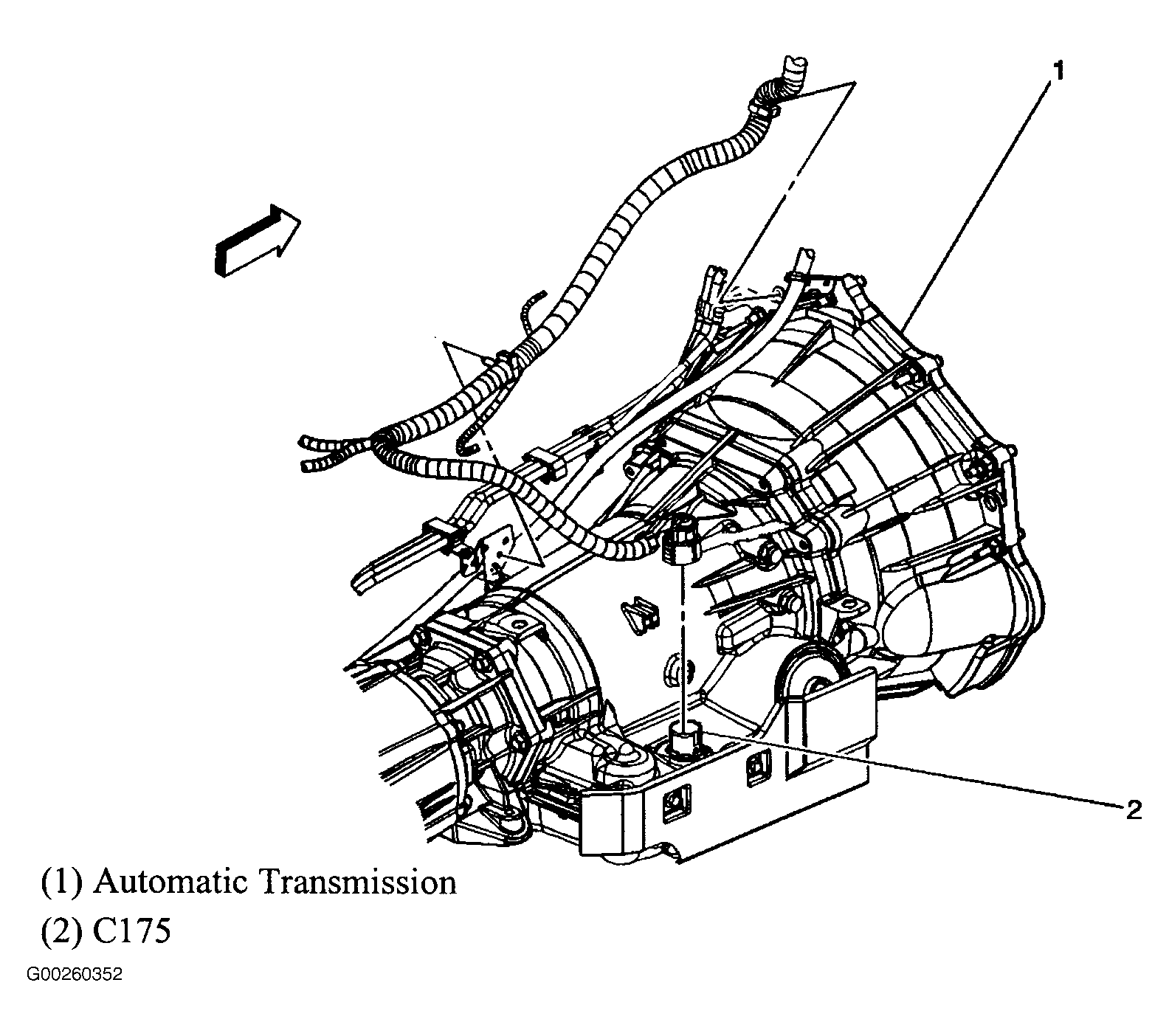

Fig 6: Automatic Transmission (Right Side)
Courtesy of GENERAL MOTORS CORP.
Fig 7: Transfer Case
Courtesy of GENERAL MOTORS CORP.

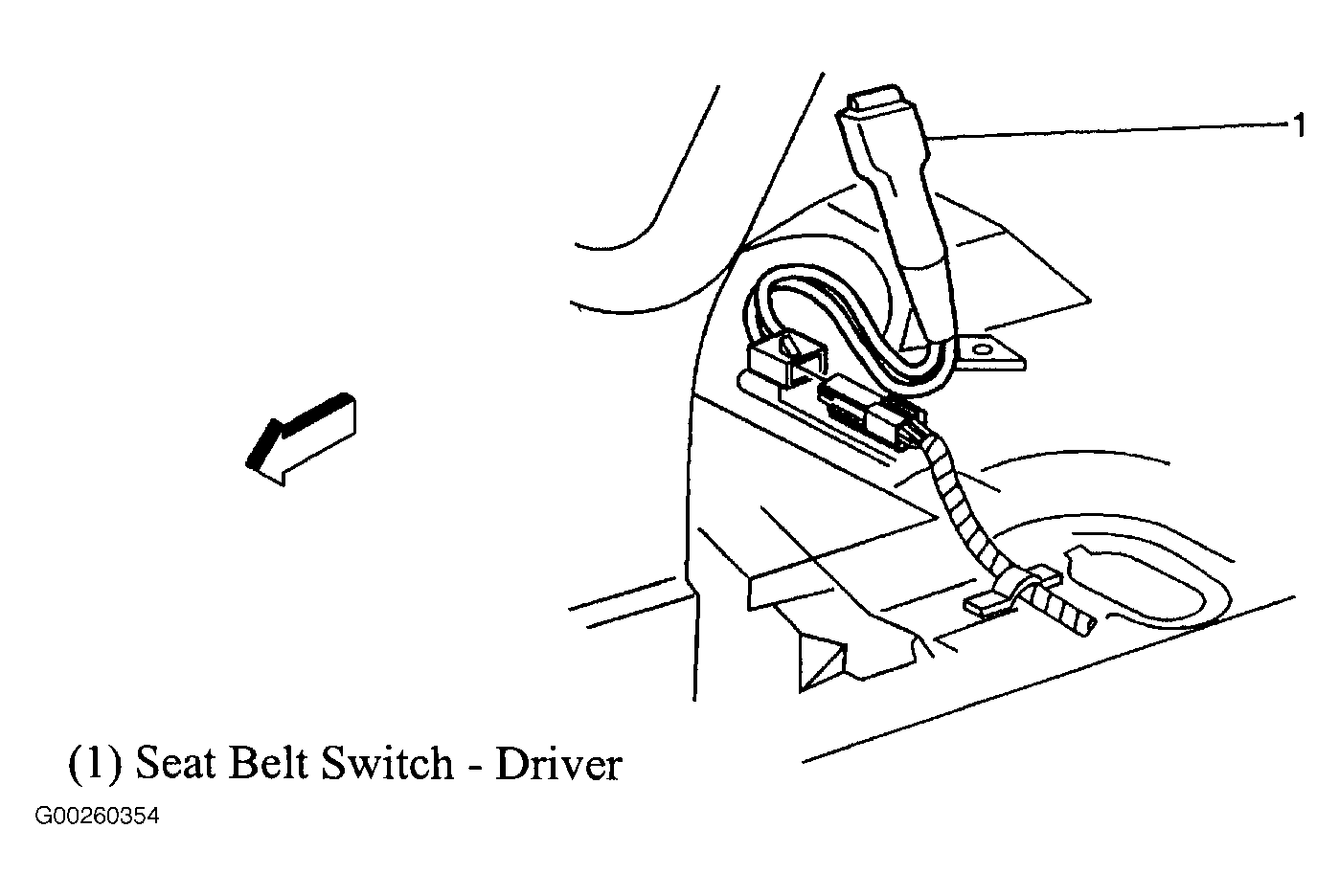

Fig 8: Driver Seat Belt
Courtesy of GENERAL MOTORS CORP.

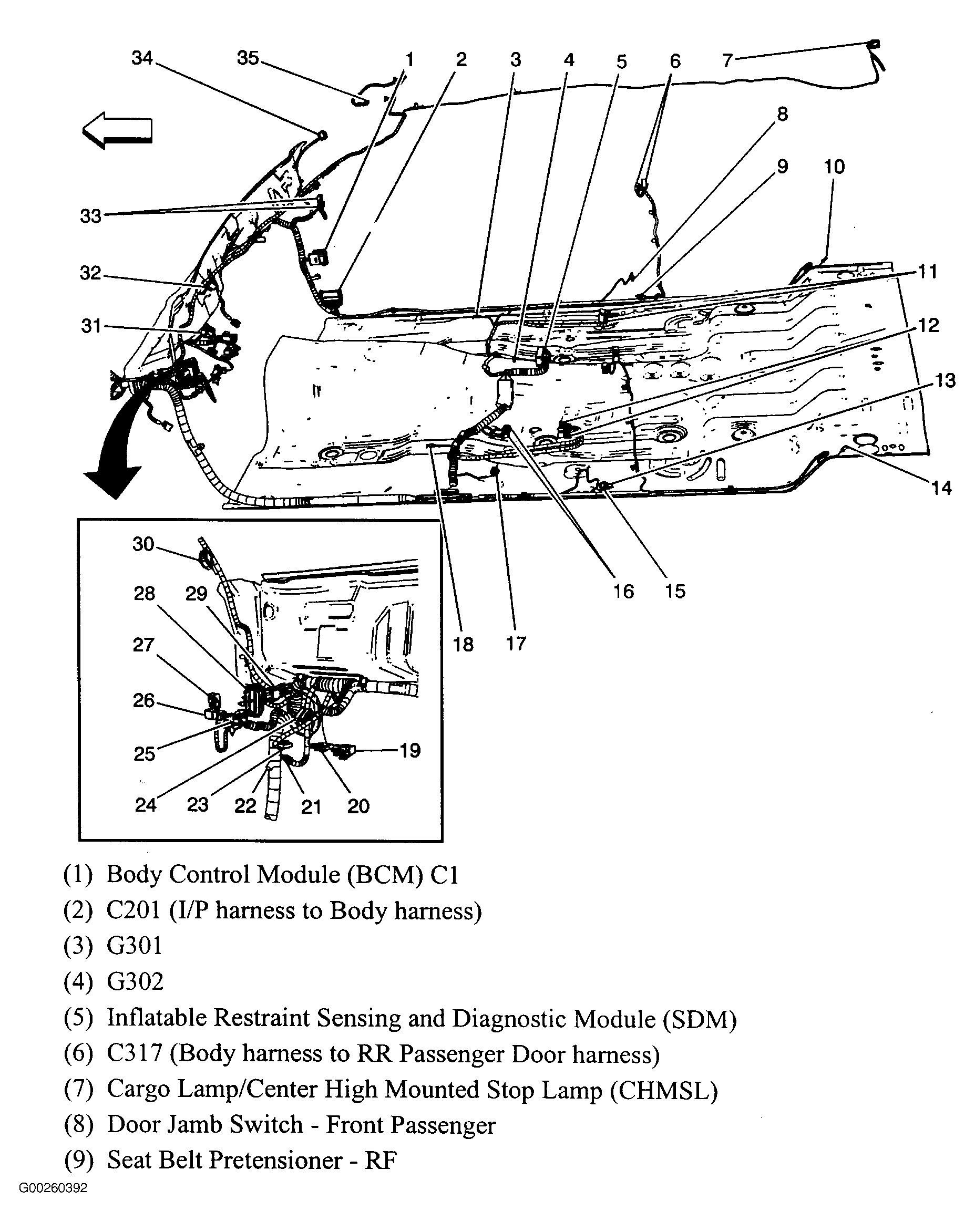

Fig 9: SIR System Overview
Courtesy of GENERAL MOTORS CORP.
Fig 10: SIR System Overview
Courtesy of GENERAL MOTORS CORP.
Fig 11: SIR System Overview
Courtesy of GENERAL MOTORS CORP.

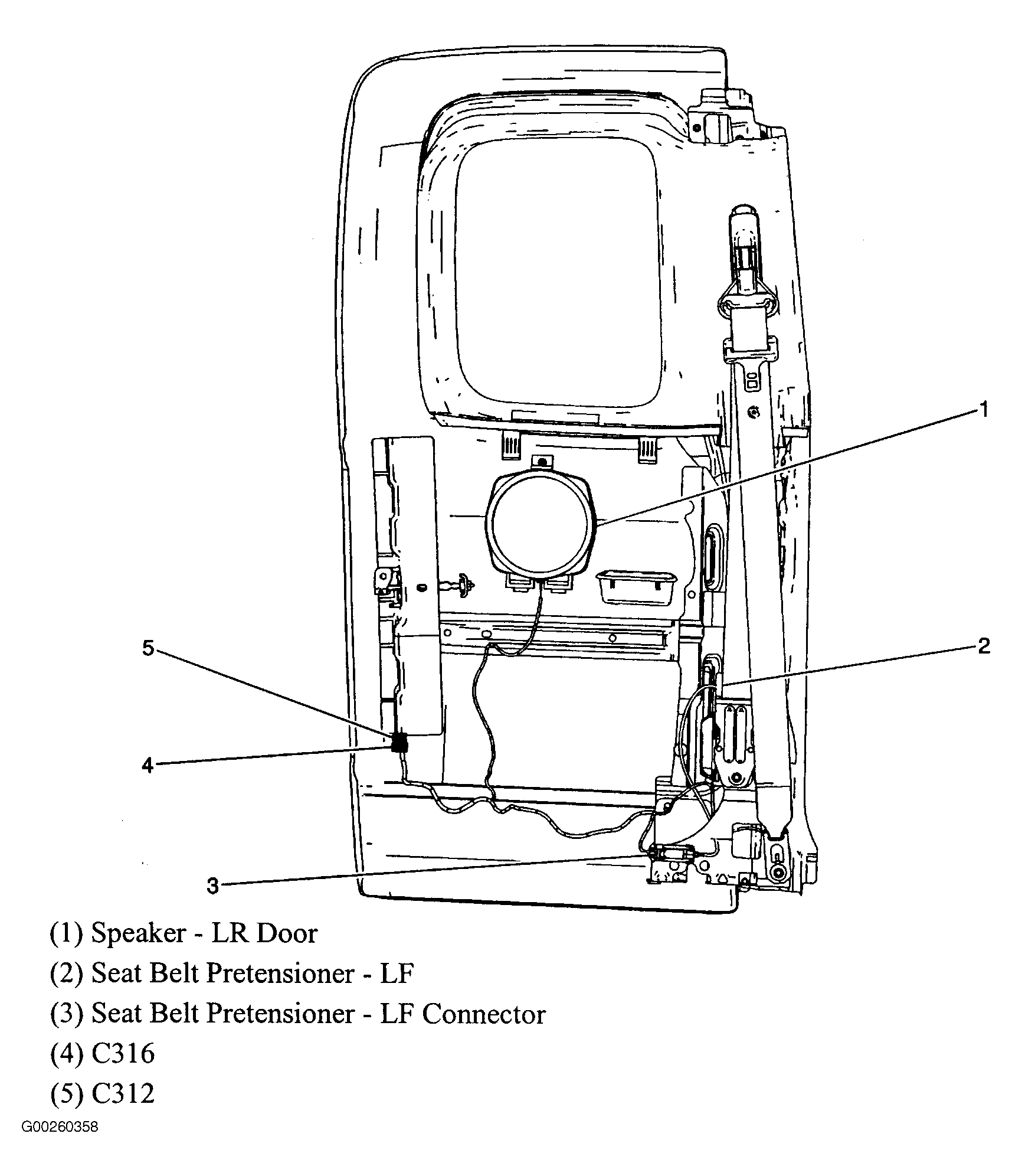

Fig 12: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 13: Lower Center Of Dash
Courtesy of GENERAL MOTORS CORP.

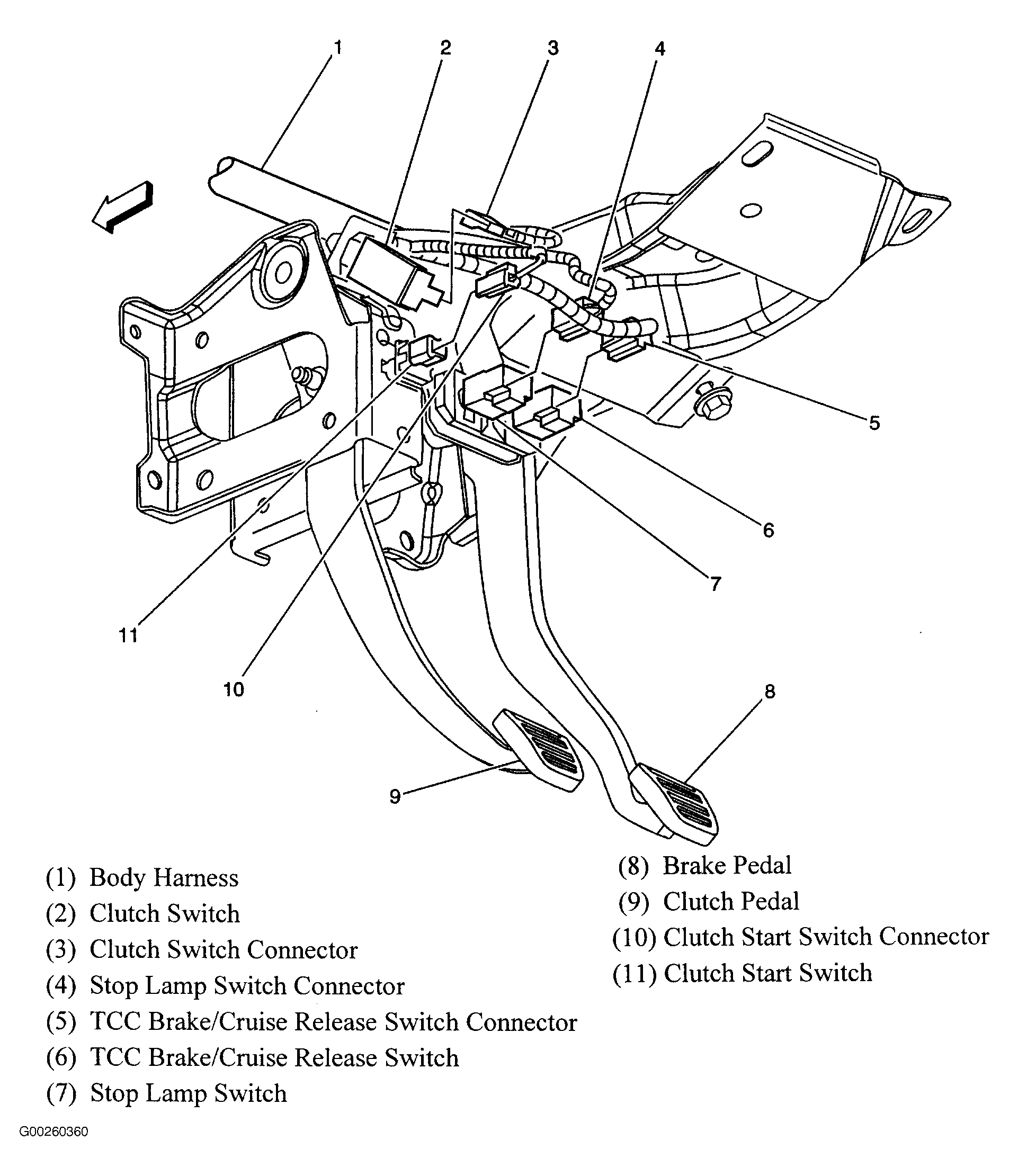

Fig 14: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 15: Center Of Dash
Courtesy of GENERAL MOTORS CORP.

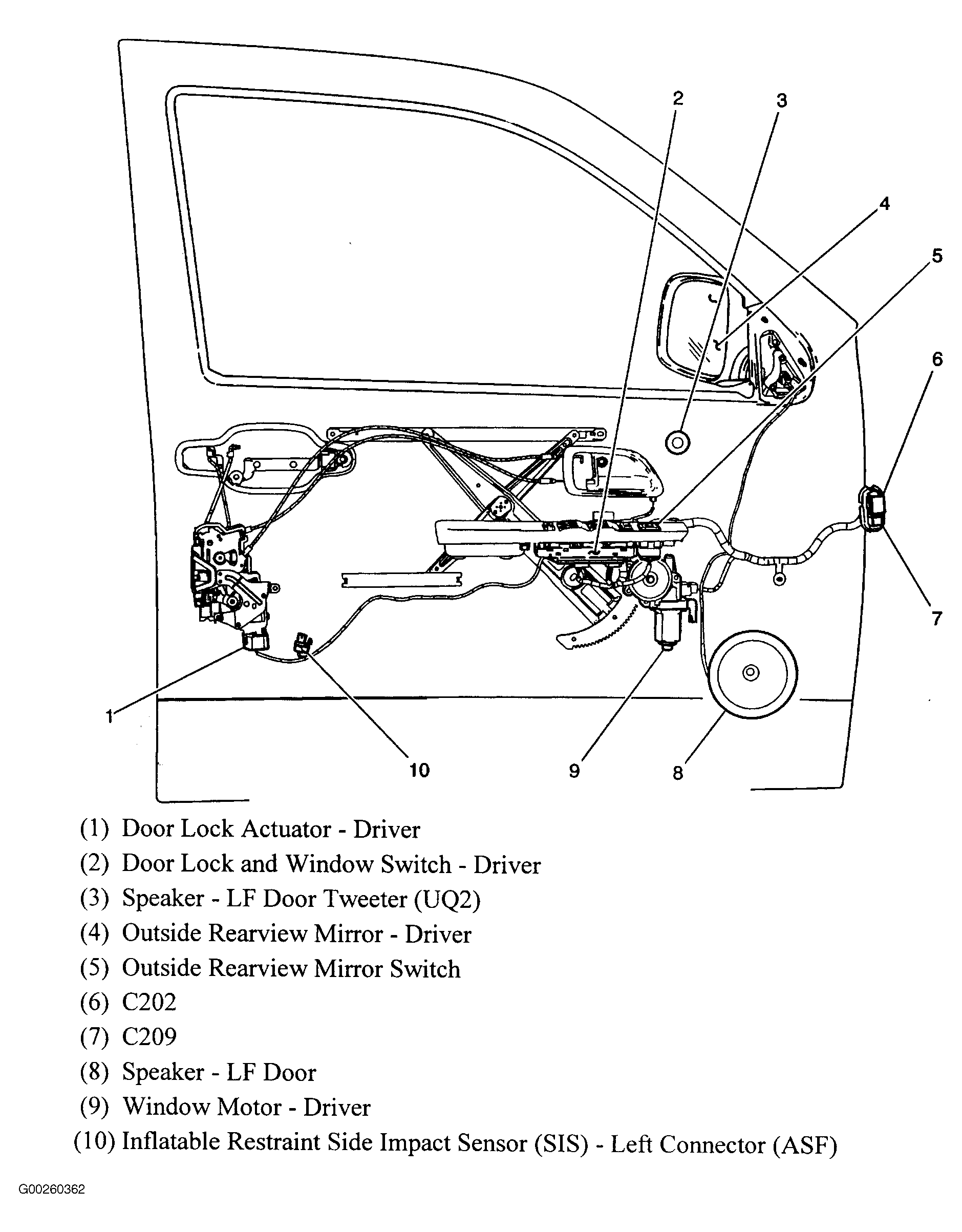

Fig 16: Driver Door
Courtesy of GENERAL MOTORS CORP.

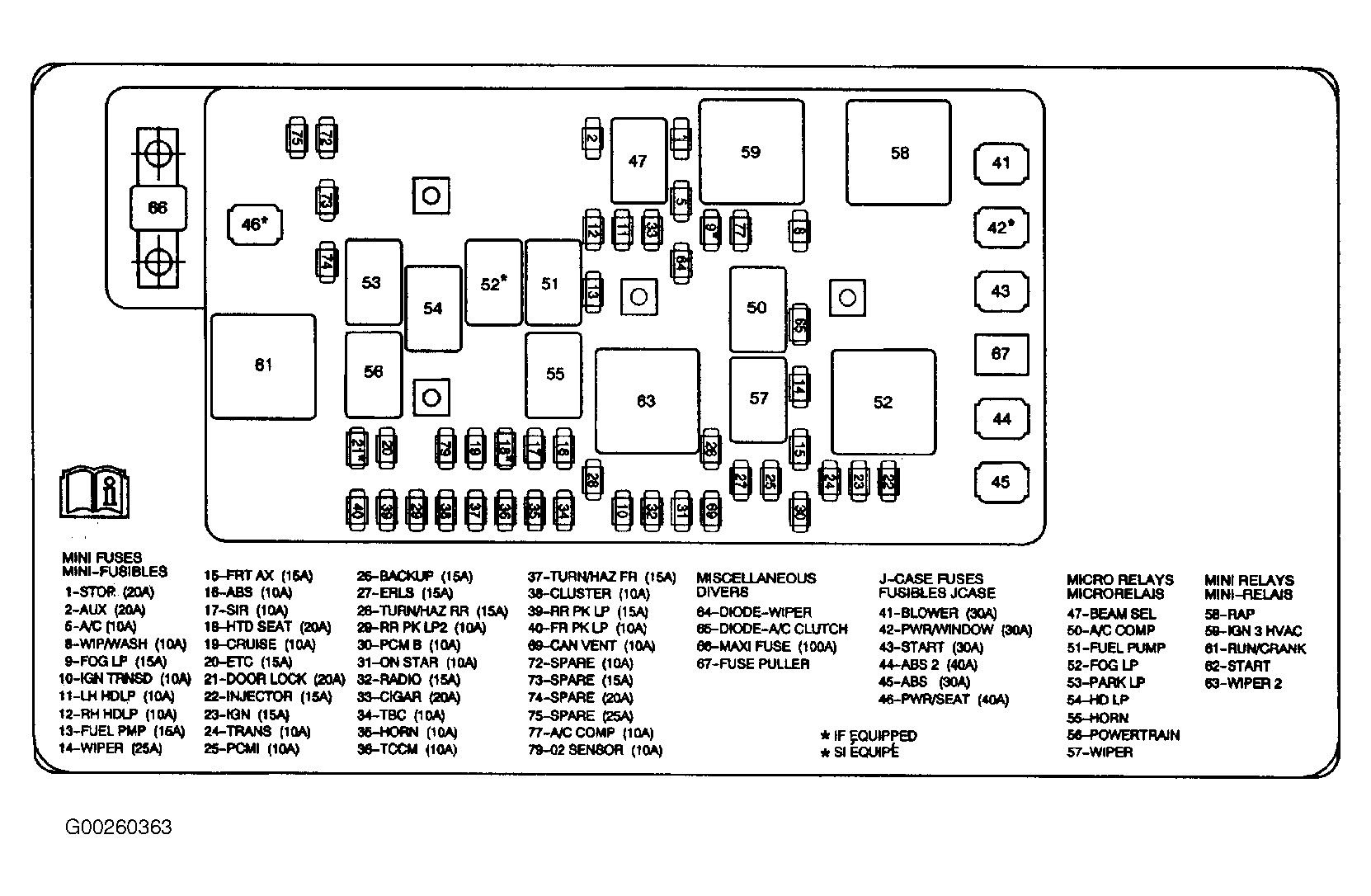

Fig 17: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 18: HVAC Module Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 19: Lower Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 20: Front Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 21: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

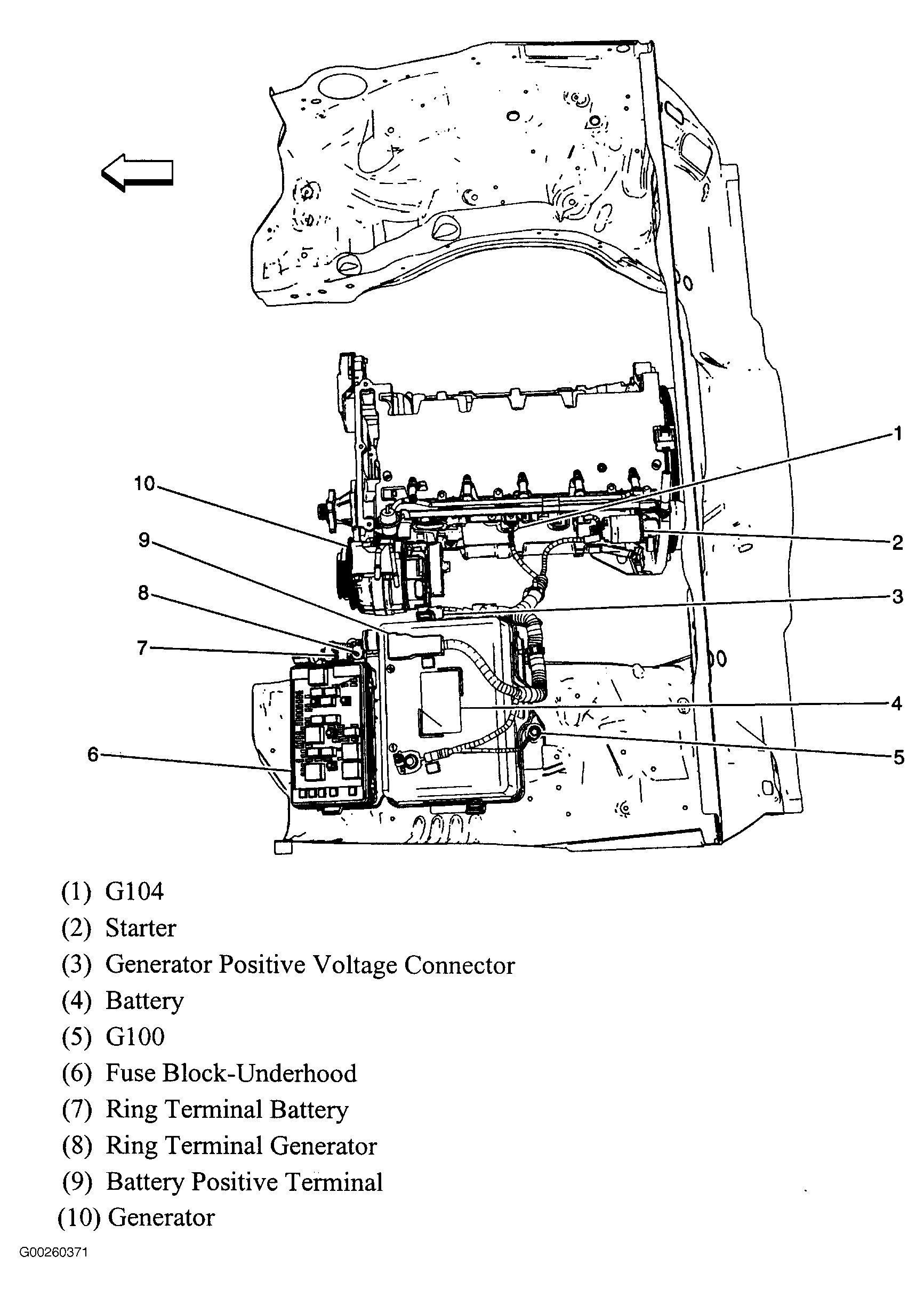

Fig 22: Engine Compartment (Top View)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Top View Of Engine (2.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Top View Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 25: Top View Of Engine (2.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 26: Engine Compartment & Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

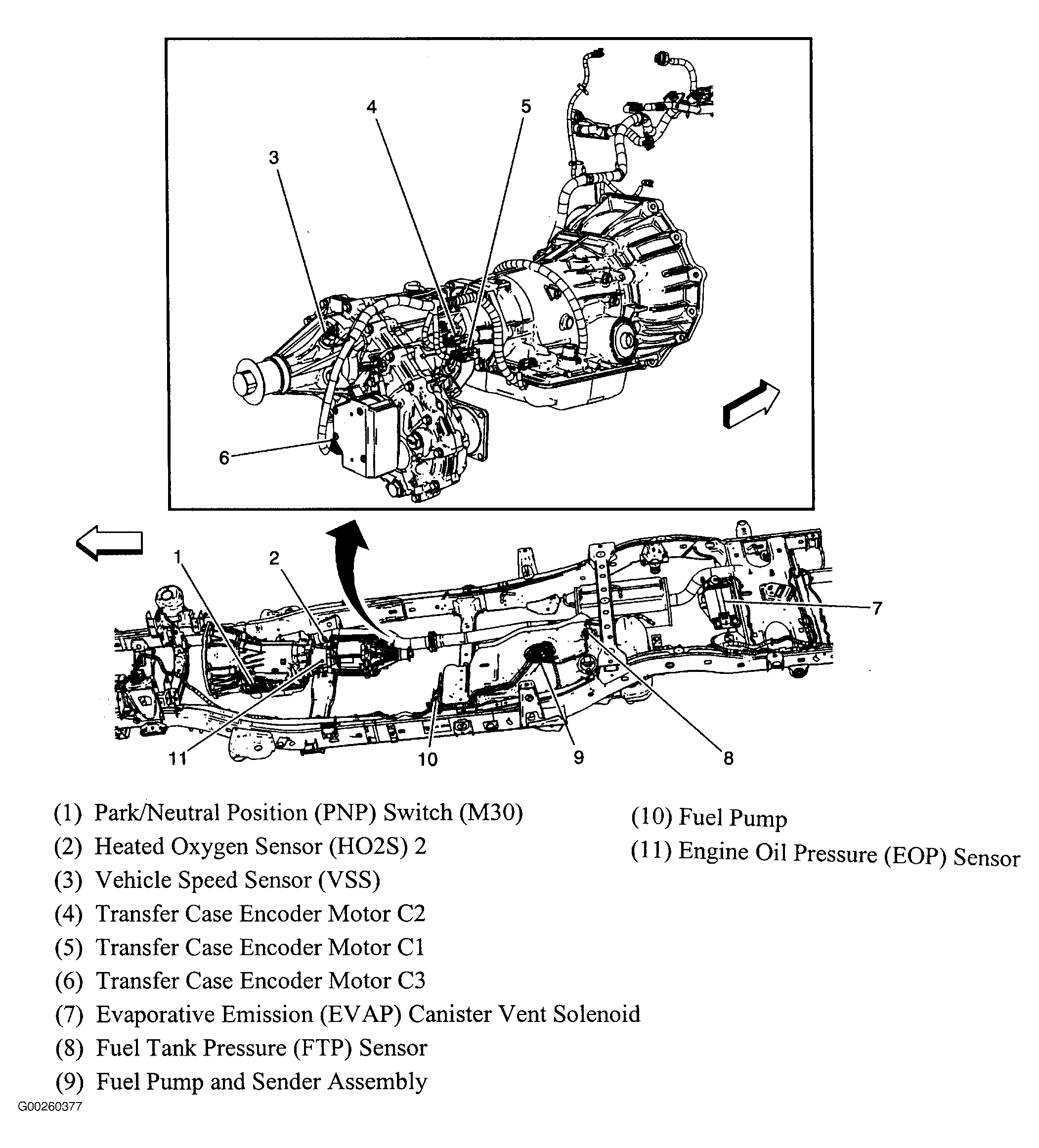

Fig 27: Chassis & Right Side Of Transfer Case
Courtesy of GENERAL MOTORS CORP.

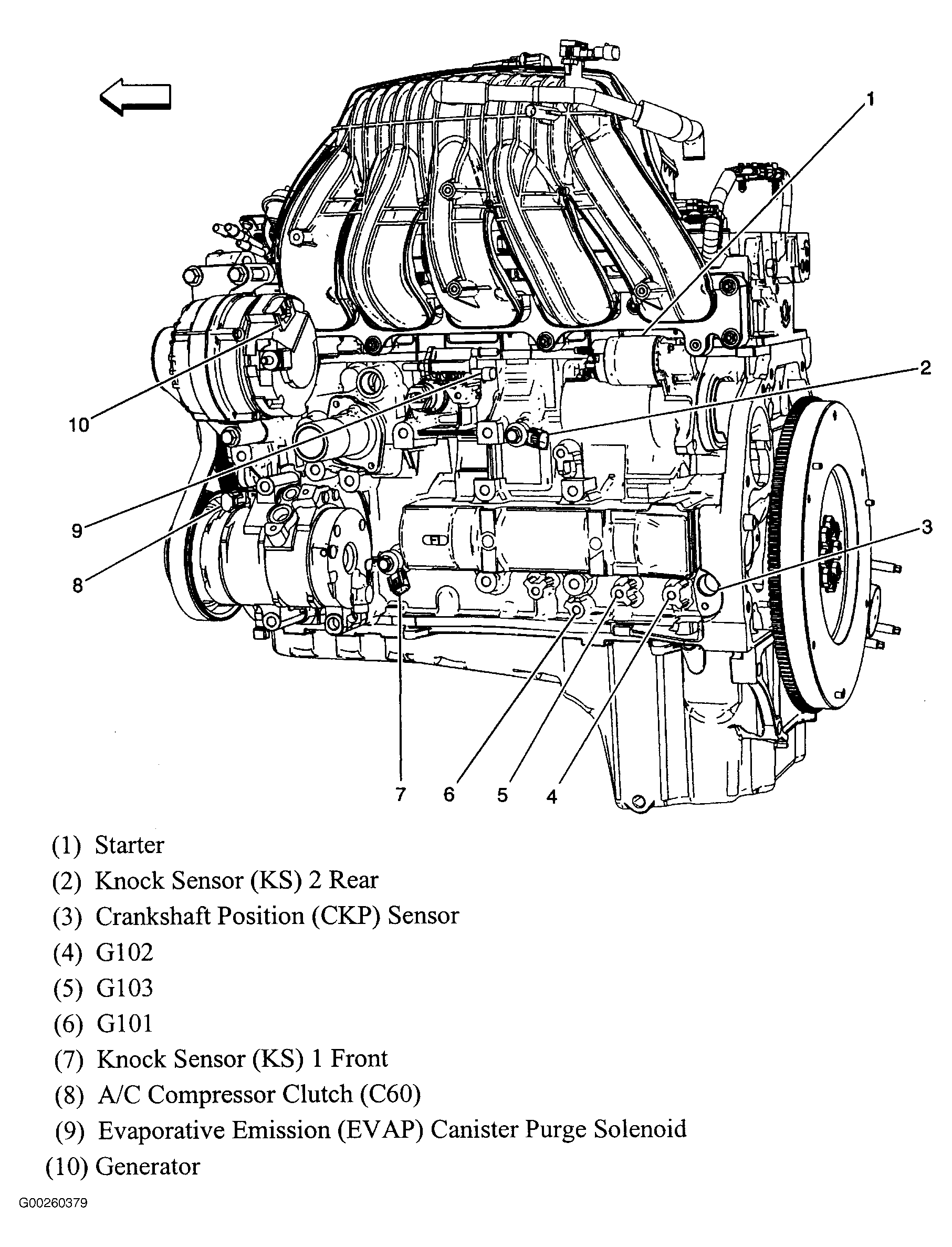

Fig 28: Right Side Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Left Side Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Right Front Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Left & Right Sides Of Engine Compartment (Extended Cab)
Courtesy of GENERAL MOTORS CORP.
Fig 32: Passenger Compartment (Regular Cab) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Passenger Compartment (Regular Cab) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

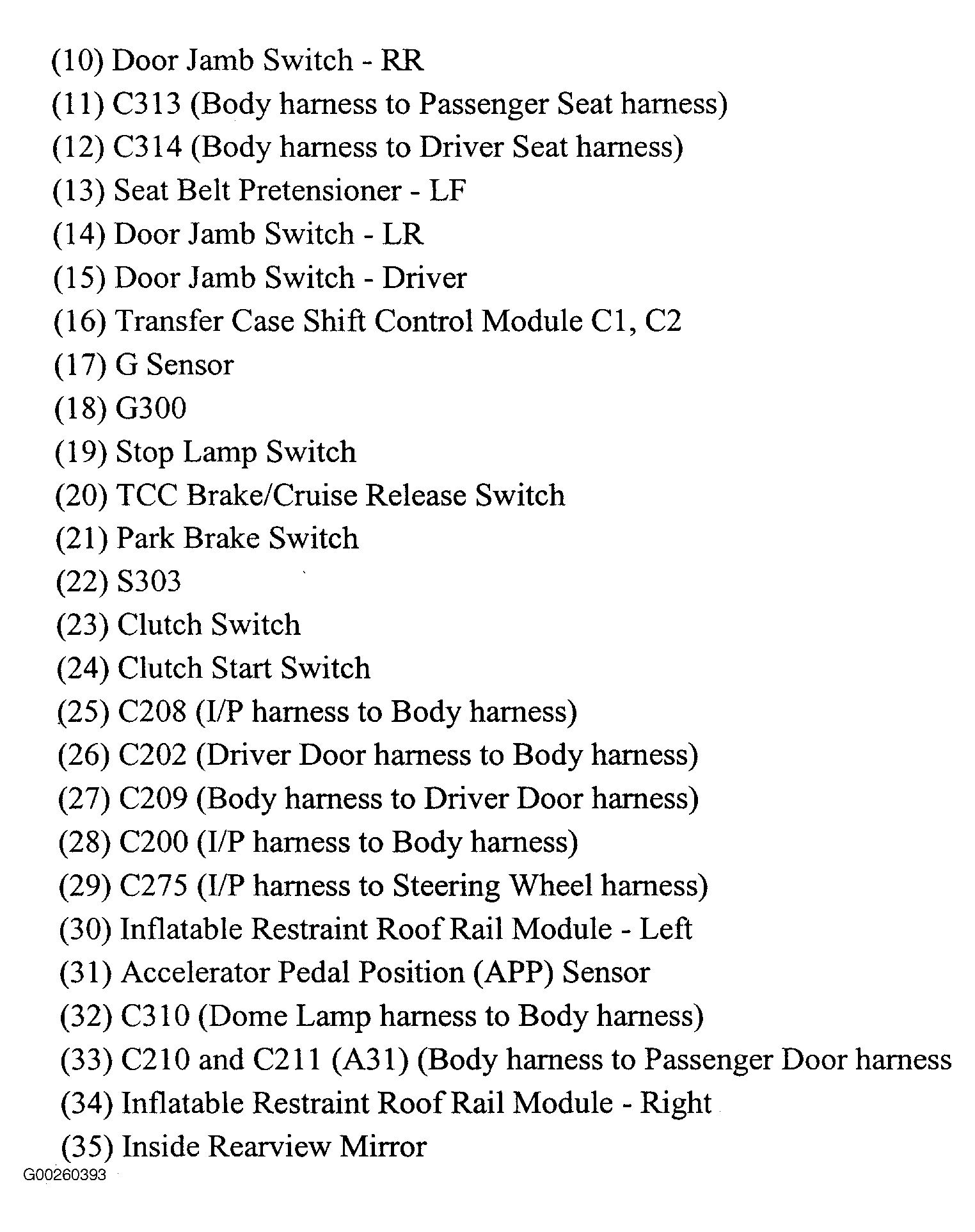

Fig 34: Passenger Compartment (Crew Cab) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 35: Passenger Compartment (Crew Cab) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 36: Body Harness Routing
Courtesy of GENERAL MOTORS CORP.
Fig 37: Chassis Harness Routing
Courtesy of GENERAL MOTORS CORP.
Fig 38: License Plate Lamp Harness Routing
Courtesy of GENERAL MOTORS CORP.
