Installation Procedure

  1. Uncap the fuel tank.
  2. Position the fuel filler hose to the fender.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the fuel filler hose screws.

    Tighten:  Tighten the fuel filler hose screws to 2 N.m (18 lb in).

    4. Fig 1: View Of Fuel Filler Hose
    GM1361727Courtesy of GENERAL MOTORS CORP.
  4. Connect the fuel filler hose (4) to the fuel tank (3).

    Tighten:  Tighten the fuel filler hose clamp to 2.5 N.m (22 lb in).

  5. Connect the EVAP hose (2) to the filler vent tube (1). Refer to Quick Connect Fitting(s) Service (Plastic Collar) .
    6. Fig 2: View Of EVAP Hose & Fuel Filler Hose
    GM1361710Courtesy of GENERAL MOTORS CORP.
  6. Install the bolt (3) securing the fuel filler hose ground strap to the frame (2).

    Tighten:  Tighten the fuel filler hose ground strap bolt to 9 N.m (80 lb in).

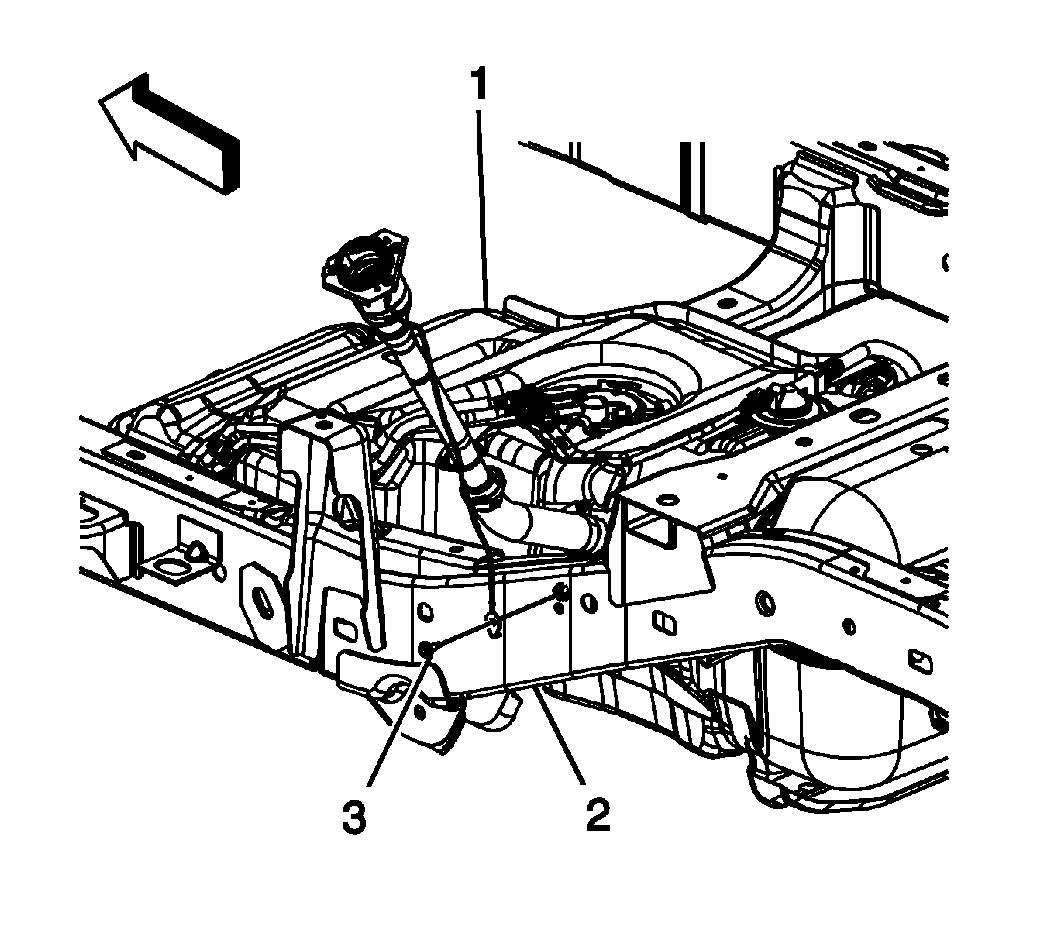

    7. Fig 3: Locating Fuel Filler Hose Ground Strap & Bolt
    GM1361728Courtesy of GENERAL MOTORS CORP.
  7. Install the left pickup box wheelhouse liner. Refer to Pickup Box Wheelhouse Liner Replacement in Body Rear End.
  8. Lower the vehicle.
  9. Refill the fuel tank.
  10. Install the fuel fill cap.
  11. Inspect for leaks.
