Installation Procedure

  1. Install the new fuel pressure regulator filter.
  2. Lightly lubricate the O-ring seals (2, 7) with mineral oil GM P/N 9981704.
  3. Install the new O-ring seals (2, 7) to the following:
    • The fuel pressure regulator (3)
    • The fuel rail return pipe (6)
  4. Press the fuel rail return pipe (6) and O-ring seal (7) into the fuel pressure regulator (3).
  5. Press the fuel pressure regulator (3) and O-ring seal (2) into the fuel rail (1).
    6. NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Install the fuel pressure regulator screws (4, 5).

    Tighten:  Tighten the fuel pressure regulator screws to 8 N.m (71 lb in).

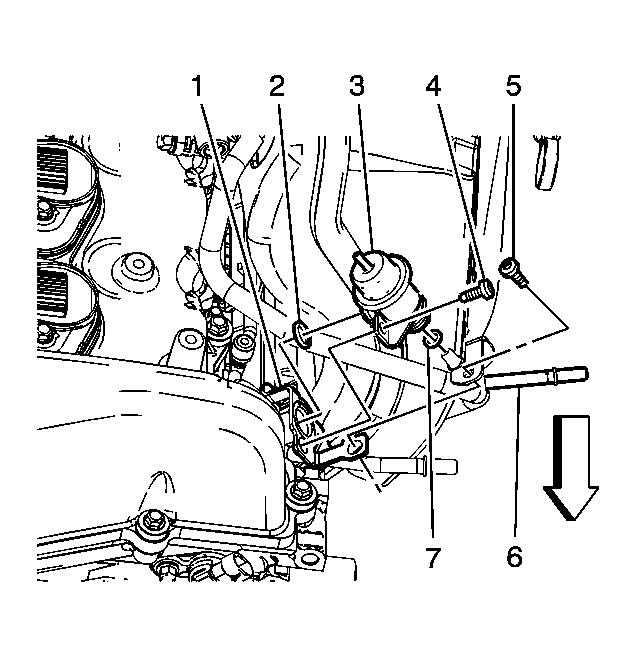

    7. Fig 1: View Of Fuel Pressure Regulator & Components
    GM1361730Courtesy of GENERAL MOTORS CORP.
  7. Connect the atmospheric vent hose (2) to the fuel pressure regulator (3).
    8. Fig 2: View Of Air Cleaner Resonator, Atmospheric Vent Hose & Fuel Pressure Regulator
    GM1352028Courtesy of GENERAL MOTORS CORP.
  8. Connect the fuel return hose/pipe (1) to the fuel rail. Refer to Quick Connect Fitting(s) Service (Metal Collar) .
    9. Fig 3: View Of EVAP Pipes, Fuel Pipes, Oil Indicator Tube, & Engine Wiring Harness Bracket
    GM1361724Courtesy of GENERAL MOTORS CORP.
  9. Inspect for leaks.
    1. Turn ON the ignition for 2 seconds.
    2. Turn OFF the ignition for 10 seconds.
    3. Turn ON the ignition.
    4. Inspect for fuel leaks.
