Flywheel/Flex Plate Torque

  1. 4.1. Tighten the bolts a first pass in sequence to 20 N.m (15 lb ft).
  2. 4.2. Tighten the bolts a second pass in sequence to 50 N.m (37 lb ft).
  3. 4.3. Tighten the bolts a final pass in sequence to 100 N.m (74 lb ft).

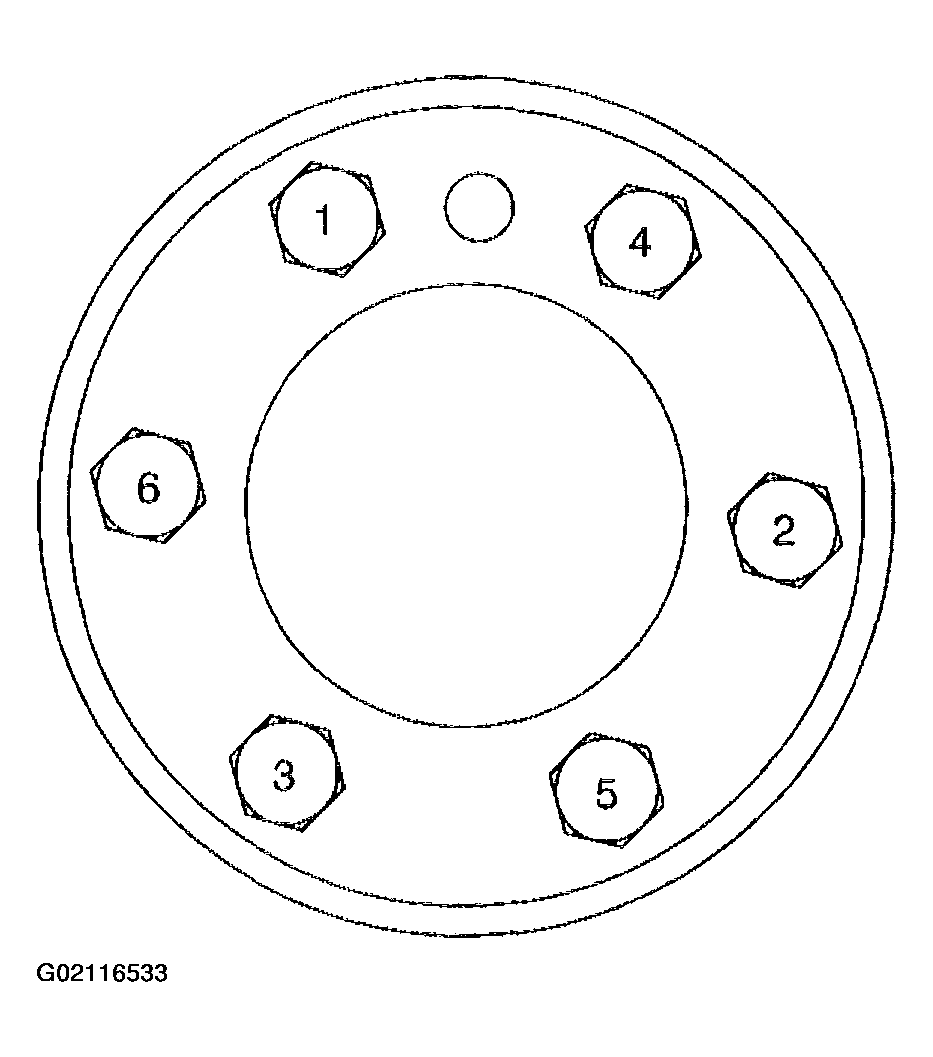

Fig 1: Tightening Bolts In Sequence
G02116533Courtesy of GENERAL MOTORS CORP.
