Shift Lock Control Wiring Schematics

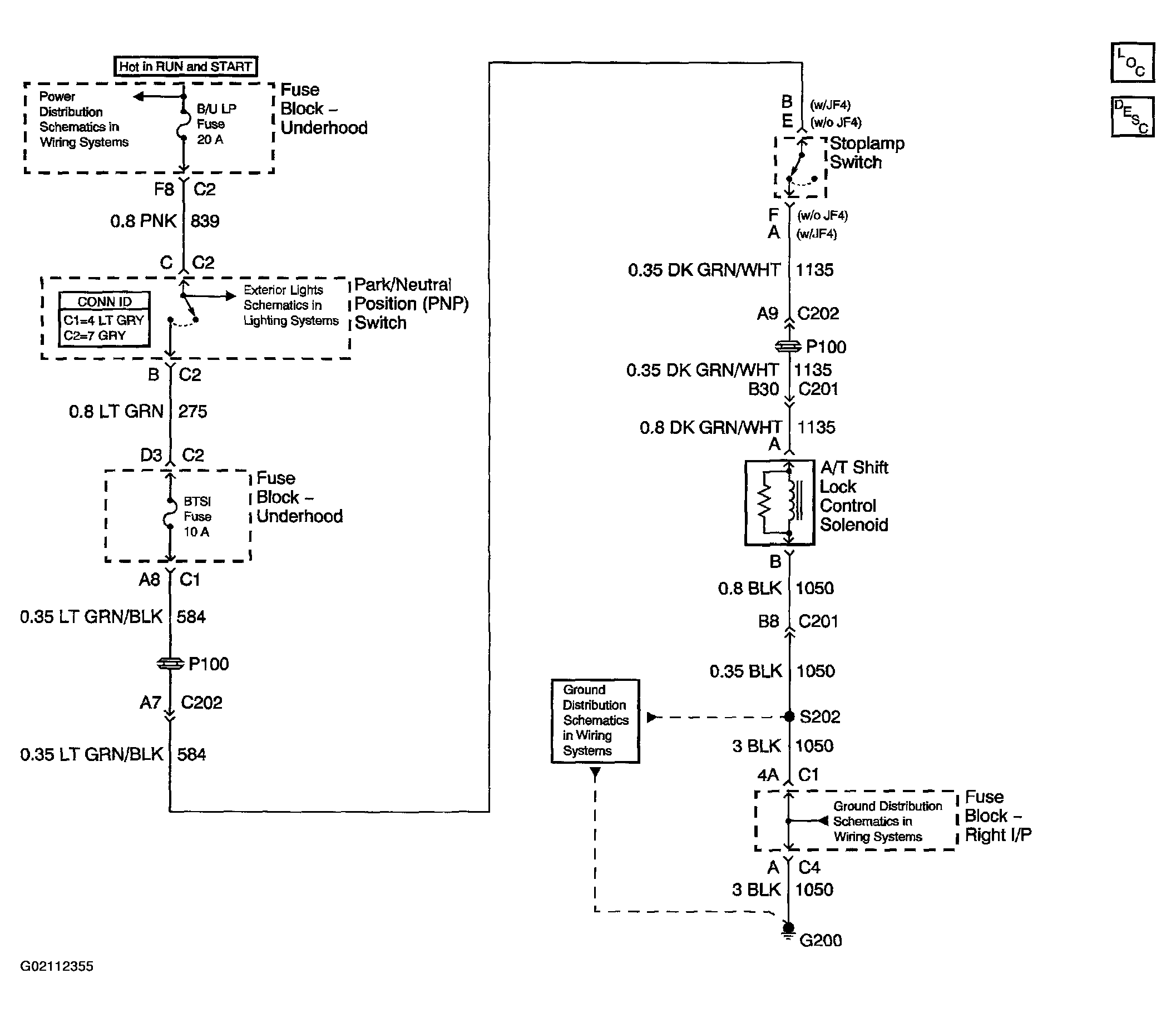

Fig 1: Automatic Transmission Shift Lock Control Schematic

G02112355

Courtesy of GENERAL MOTORS CORP.
