Installation Procedure

  1. Place the power steering pump pulley on the end of the power steering pump shaft.
  2. Install the power steering pump pulley using J 25033-C.
  3. Ensure that the power steering pump pulley (1) is flush against the power steering pump shaft (2), with an allowable variance of 0.25 mm (0.010 in).

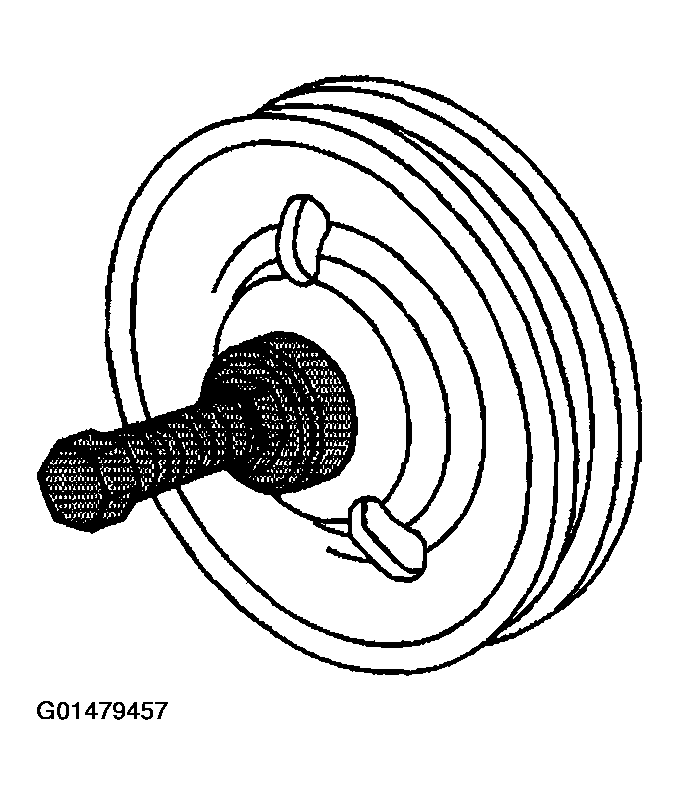

    Fig 1: Install Power Steering Pump Pulley Using J 25033-C
    G01479457Courtesy of GENERAL MOTORS CORP.
  4. Install the drive belt. Refer to DRIVE BELT REPLACEMENT  or DRIVE BELT REPLACEMENT-ACCESSORY  .
  5. Install the upper fan shroud. Refer to FAN SHROUD REPLACEMENT-UPPER (W/O M74)  or FAN SHROUD REPLACEMENT-UPPER (W/M74)  .

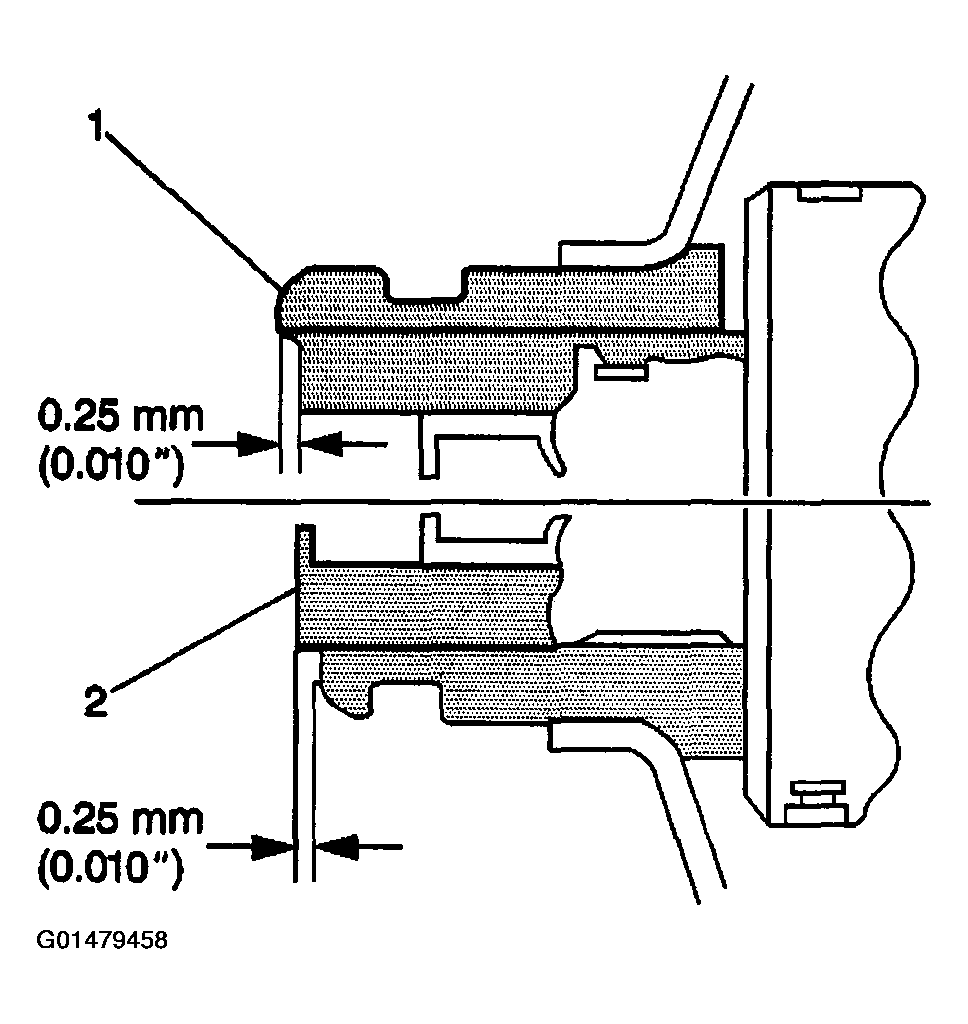

    Fig 2: Identifying Clearance Gap Between Steering Pump Pulley & Pump Shaft
    G01479458Courtesy of GENERAL MOTORS CORP.
