Home >> GMC >> 2003 >> Sierra 1500 HD, RWD >> Repair and Diagnosis >> Steering >> Power Steering System >> Component Locator >> Power Steering Pump Disassembled View (Regular)

Power Steering Pump Disassembled View (Regular)

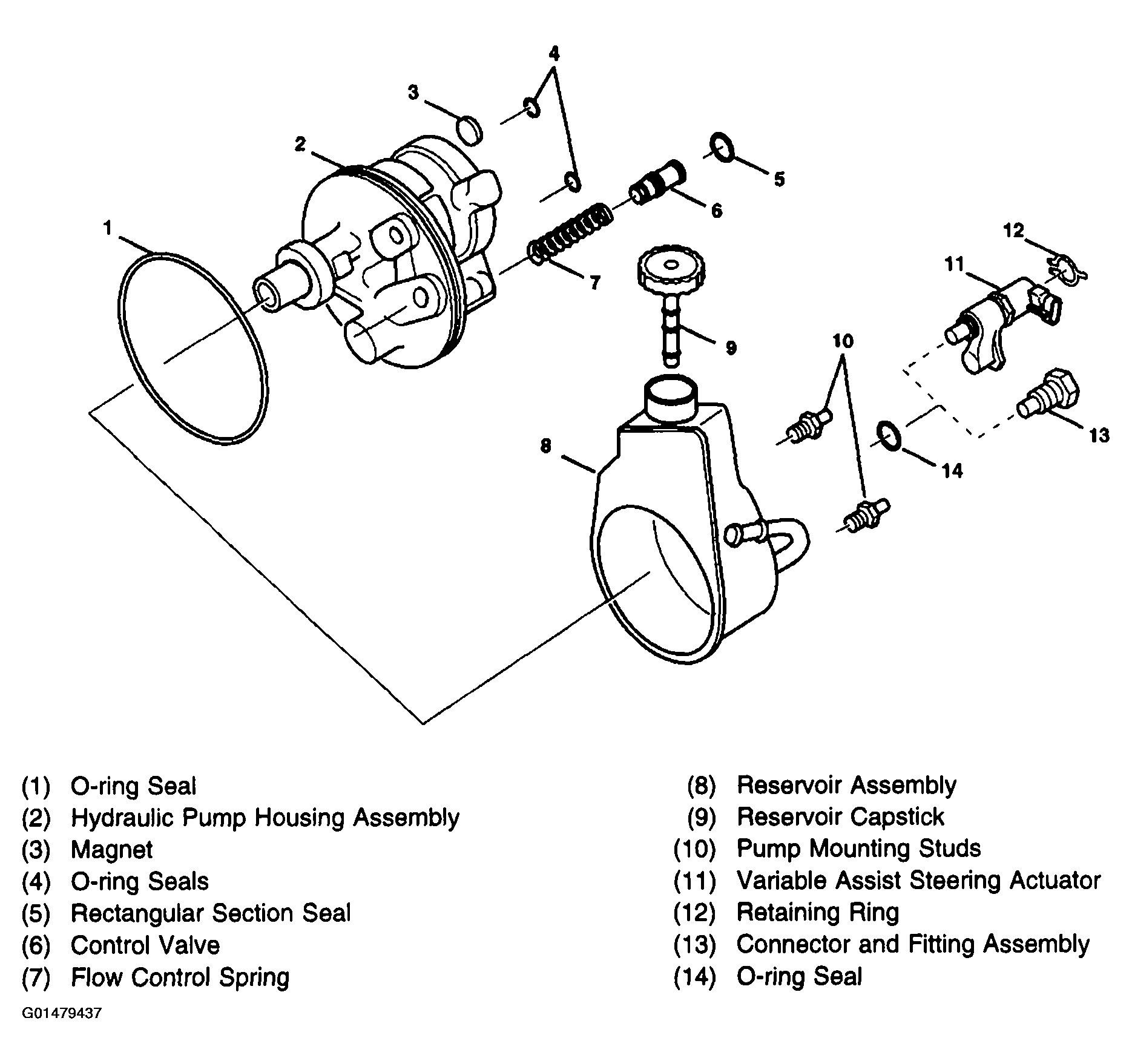

Fig 1: Power Steering Pump (Regular)

G01479437

Courtesy of GENERAL MOTORS CORP.
