Installation Procedure

  1. Install the retractor to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the rear seat belt retractor to body bolt (1).

    Tighten

    Tighten the bolt to 53 N.m (39 lb ft).

  3. Install the rear seat belt to body bolts.

    Tighten

    Tighten the bolts to 53 N.m (39 lb ft).

  4. Install the rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT-REAR QUARTER (REGULAR CAB) or TRIM PANEL REPLACEMENT-REAR QUARTER (EXTENDED CAB) or TRIM PANEL REPLACEMENT-REAR QUARTER (CREW CAB)
  5. Install the rear seat, if removed. Refer to SEAT REPLACEMENT-REAR (EXTENDED CAB W/4TH DOOR) or SEAT REPLACEMENT-REAR (EXTENDED CAB) or SEAT REPLACEMENT-REAR (60/40 SPLIT) .

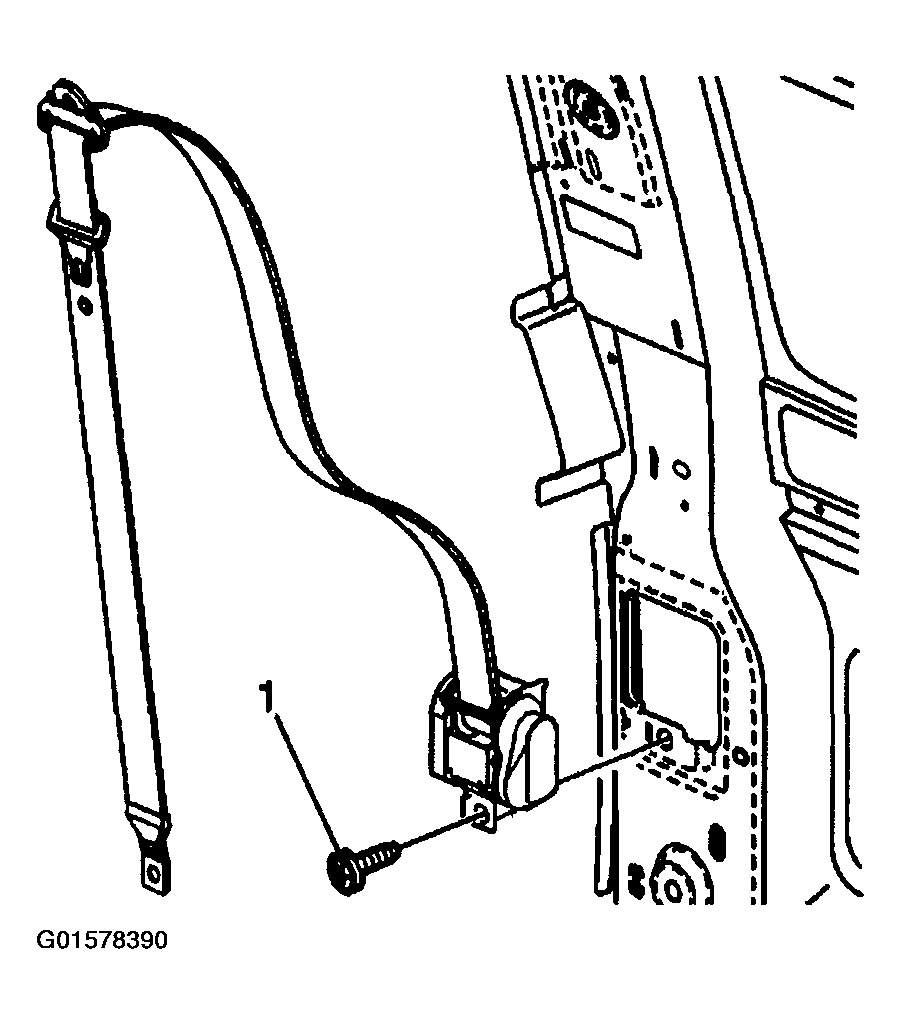

    Fig 1: Installing Rear Seat Belt Retractor To Body Bolts (Crew Cab)
    G01578390Courtesy of GENERAL MOTORS CORP.
