Installation Procedure

  1. Position the seat belt retractor onto the seat.

    Line up the tab on the retractor to the tab on the seat frame.

    NOTE: Refer to FASTENER NOTICE .
  2. Install the upper anchor bolt.

    Tighten

    Tighten the bolt to 53 N.m (39 lb ft).

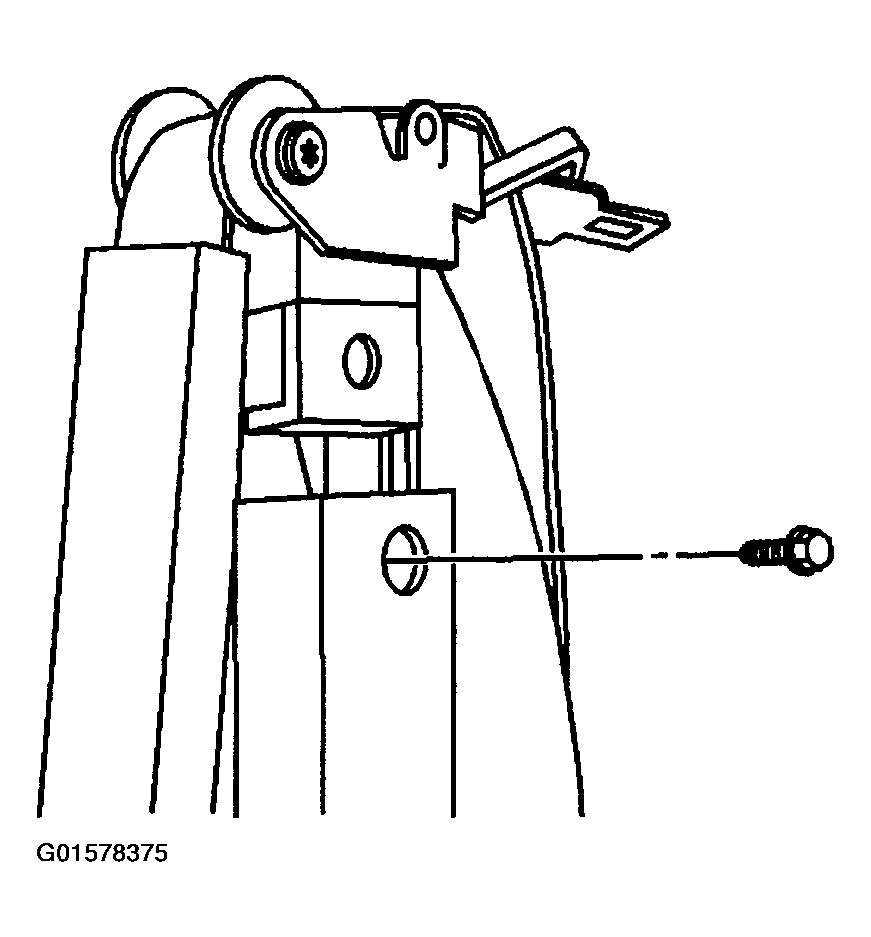

    Fig 1: Installing Upper Anchor Bolt (Left Front)
    G01578375Courtesy of GENERAL MOTORS CORP.
  3. Install the retractor tower cover.
  4. Install the retractor tower cover retaining screw.

    Tighten

    Tighten the screw to 2 N.m (18 lb in).

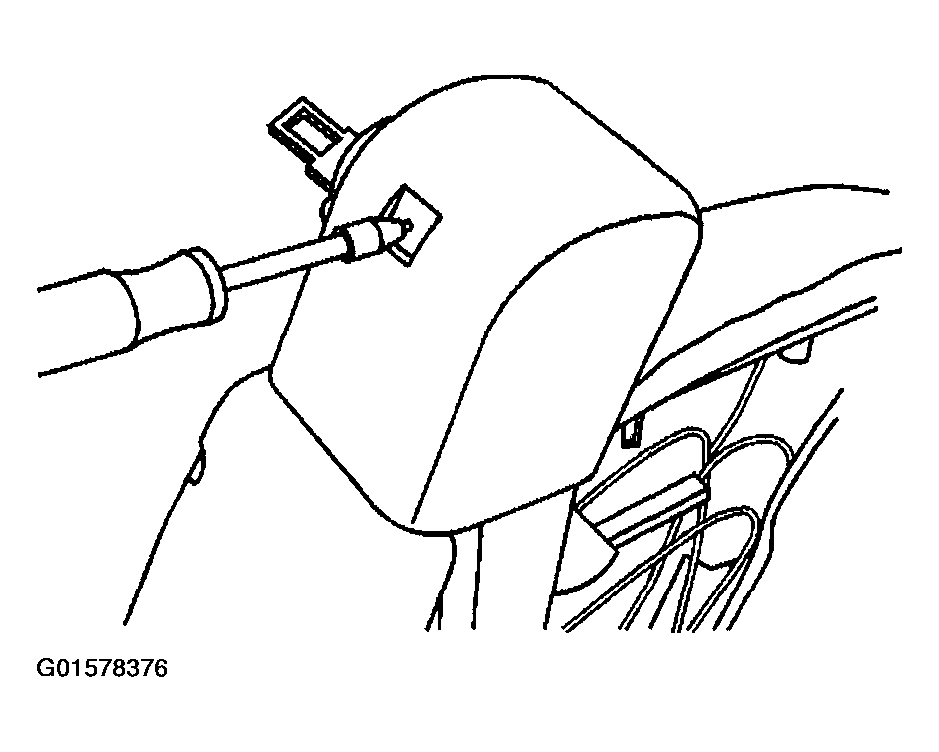

    Fig 2: Installing Retractor Tower Cover Retaining Screw (Left Front)
    G01578376Courtesy of GENERAL MOTORS CORP.
  5. Install the retractor.
  6. Install the retractor bolt.

    Tighten

    Tighten the bolt to 53 N.m (39 lb ft).

  7. Install the rear cardboard panel retainers.
  8. Install the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT-FRONT .
  9. Move the seat to its original position.
    Fig 3: Installing Retractor Bolt (Left Front)
    G01578377Courtesy of GENERAL MOTORS CORP.
