Seat Belt Connector End Views

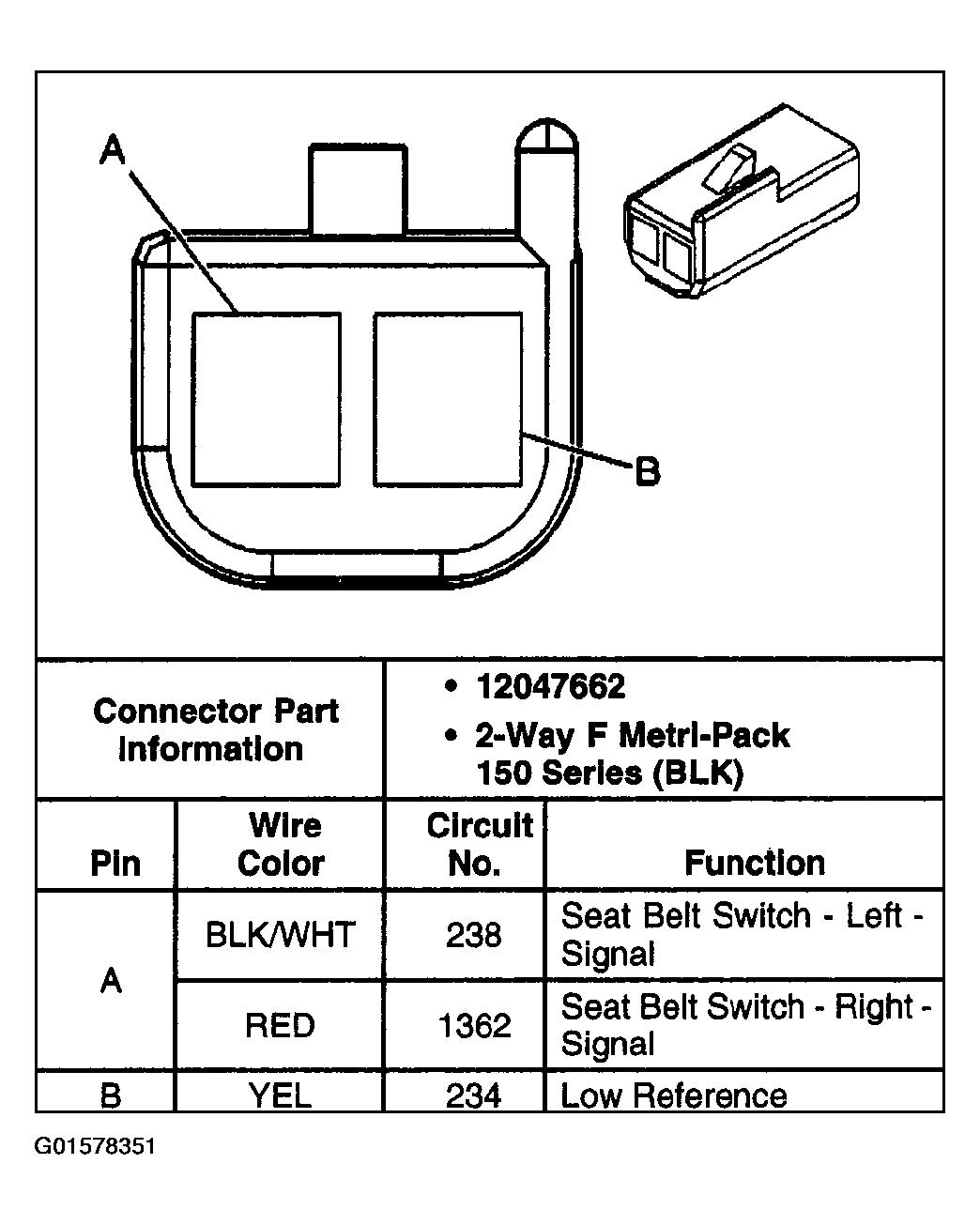

Fig 1: Seat Belt Switch - Driver & Front Passenger

G01578351

Courtesy of GENERAL MOTORS CORP.
