Power Take Off (PTO) Relay Connector End View

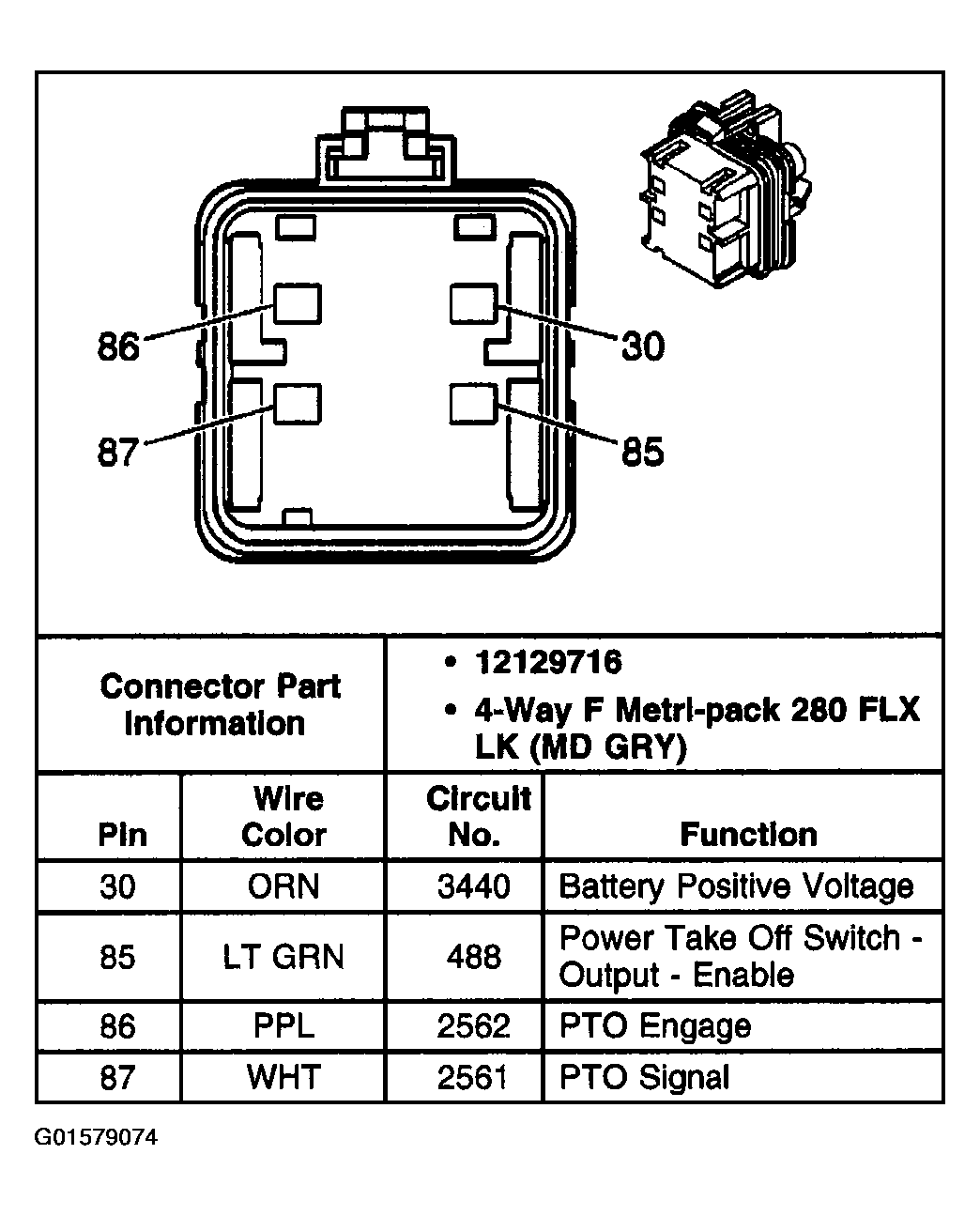

Fig 1: Power Take Off (PTO) Relay Connector End View

G01579074

Courtesy of GENERAL MOTORS CORP.
