Front Axle Actuator Connector End View

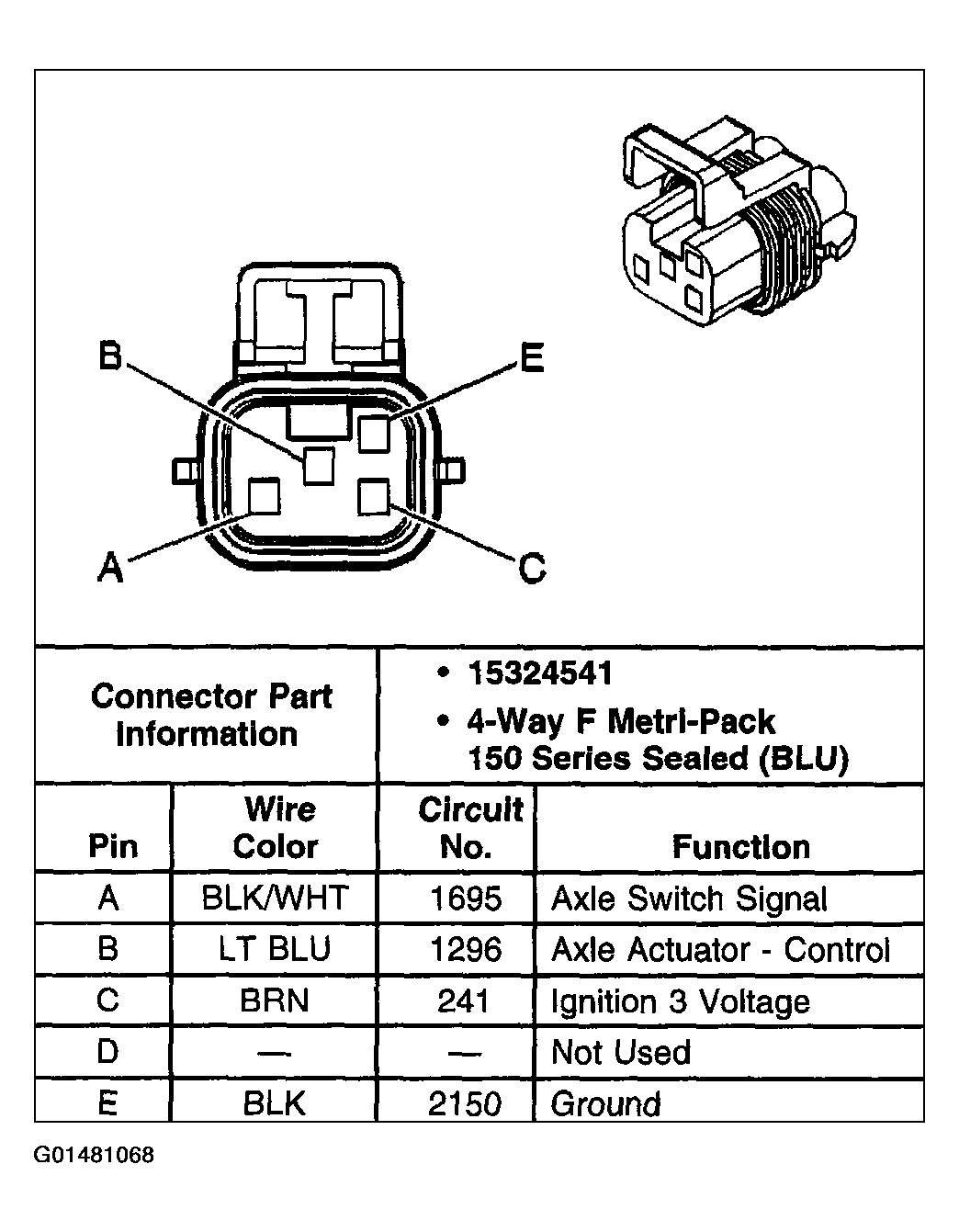

Fig 1: Front Axle Actuator Connector End View
G01481068Courtesy of GENERAL MOTORS CORP.


Fig 1: Front Axle Actuator Connector End View
G01481199Courtesy of GENERAL MOTORS CORP.

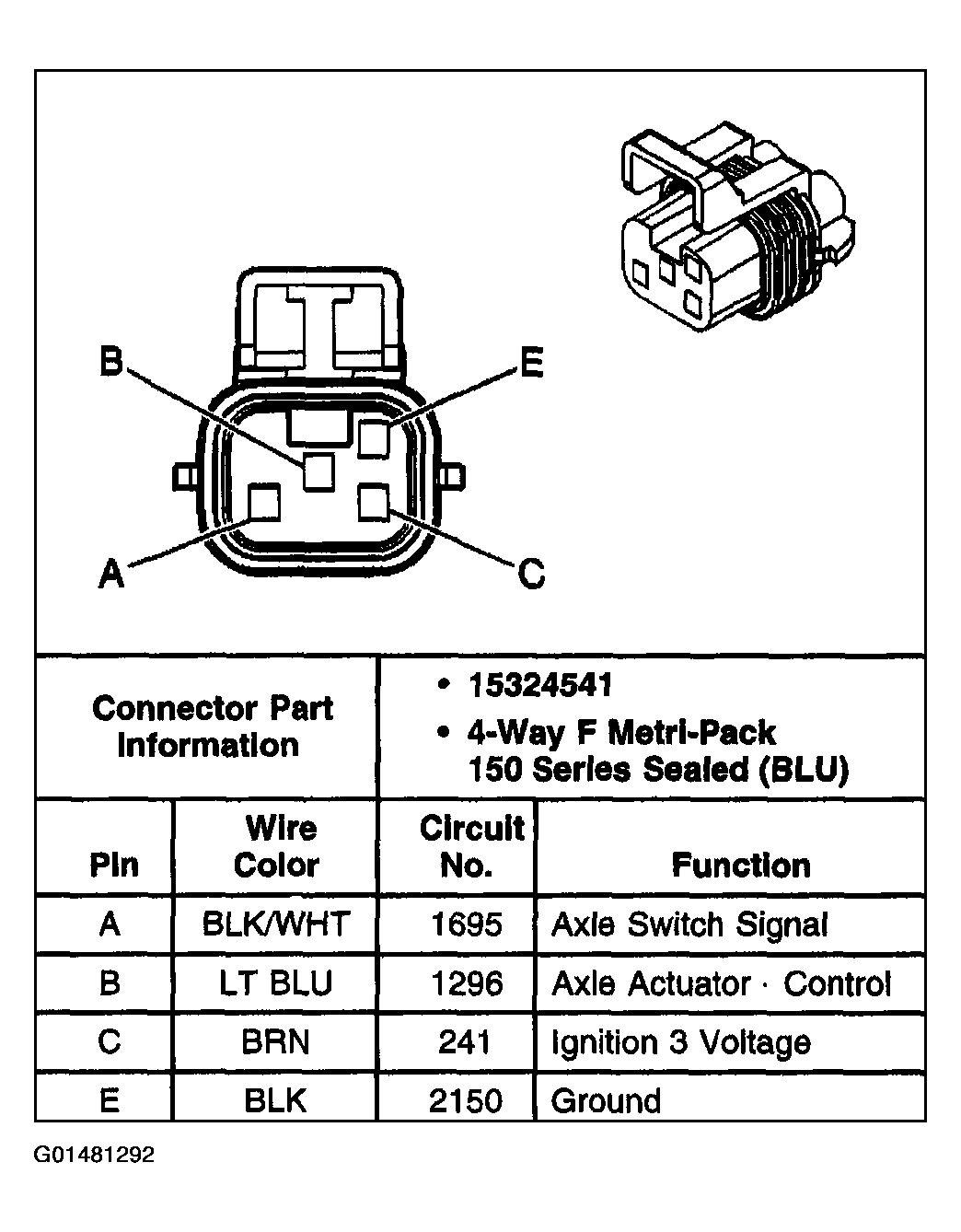

Fig 1: Front Axle Actuator Connector End View
G01481292Courtesy of GENERAL MOTORS CORP.
