Installation Procedures

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the inflatable restraint passenger presence system to the seat.

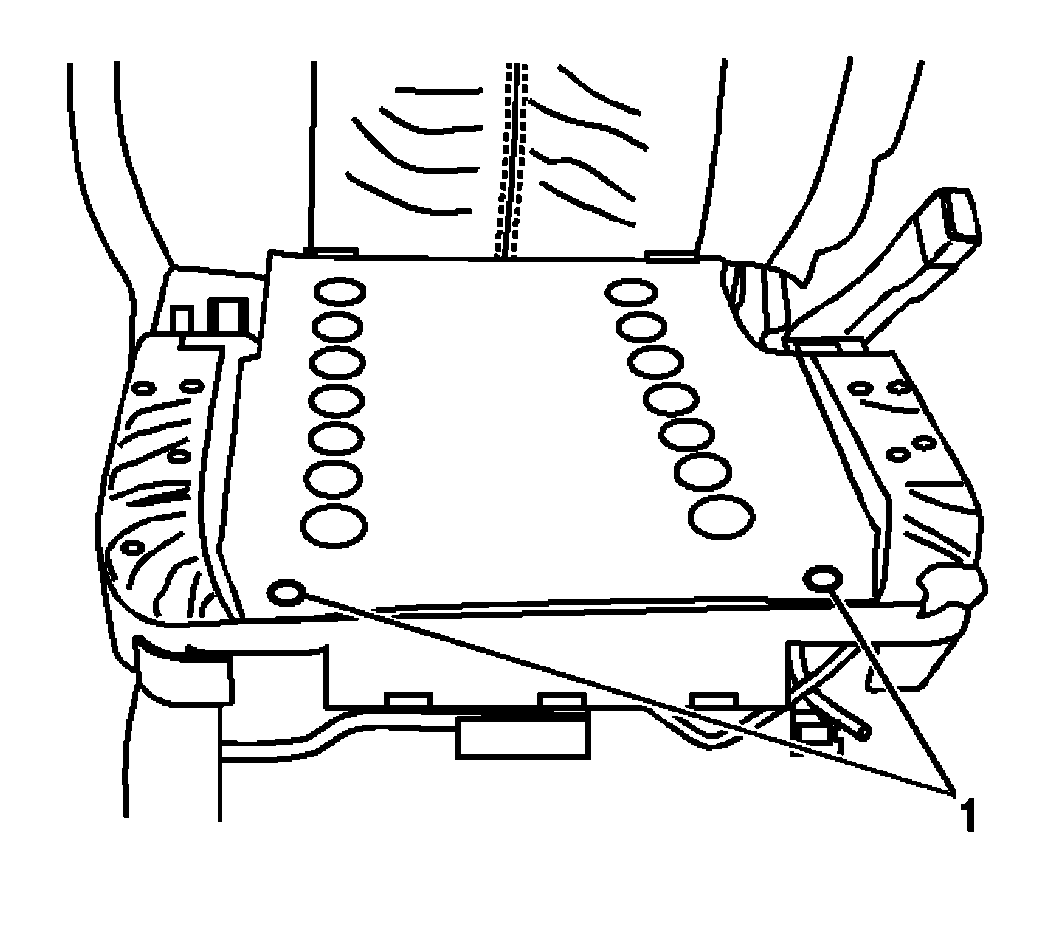

    Fig 1: Seat Cushion Frame Bladder Retainers
    GM811858Courtesy of GENERAL MOTORS CORP.
  2. Install the push in retainer's (1) that hold the bladder to the seat cushion frame.

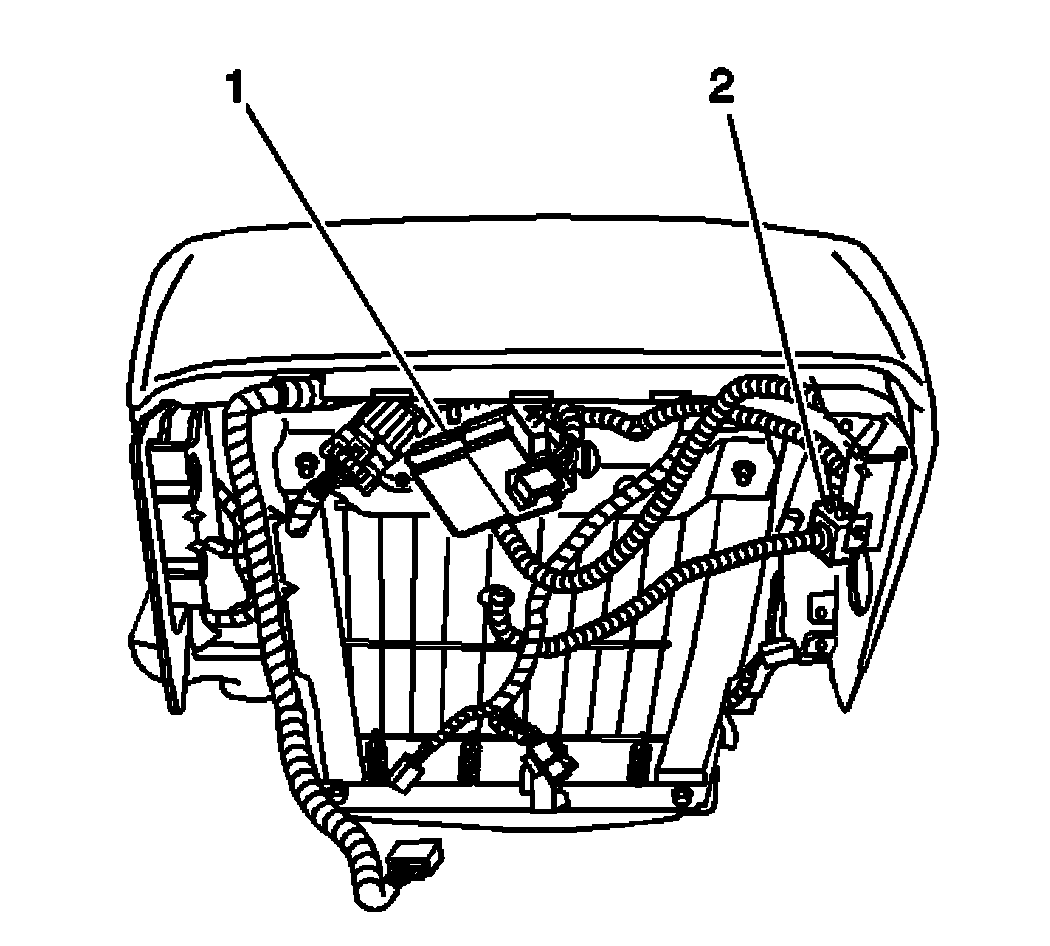

    3. Fig 2: View Of Electronic Control Unit & Pressure Switch
    GM811855Courtesy of GENERAL MOTORS CORP.
  3. Install the pressure sensor (2) to the bottom of the passenger seat cushion frame.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the bolts that retain the (ECU) (1) to the bottom the passenger seat cushion frame.

    Tighten:  Tighten the bolts to 2 N.m (18 lb in).

  5. Connect the electrical connectors.
  6. Install the seat cushion trim cover and pad. Refer to Seat Cushion Trim Cover and Pad Replacement in Seats.
  7. Re-zero the inflatable restraint passenger presence system. Refer toPassenger Presence System Rezeroing Procedure  in SIR.
