GMC
>>
2003
>>
Sierra 1500 HD, RWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector End Views
>>
Vehicle Speed Sensor Connector End View
Vehicle Speed Sensor Connector End View

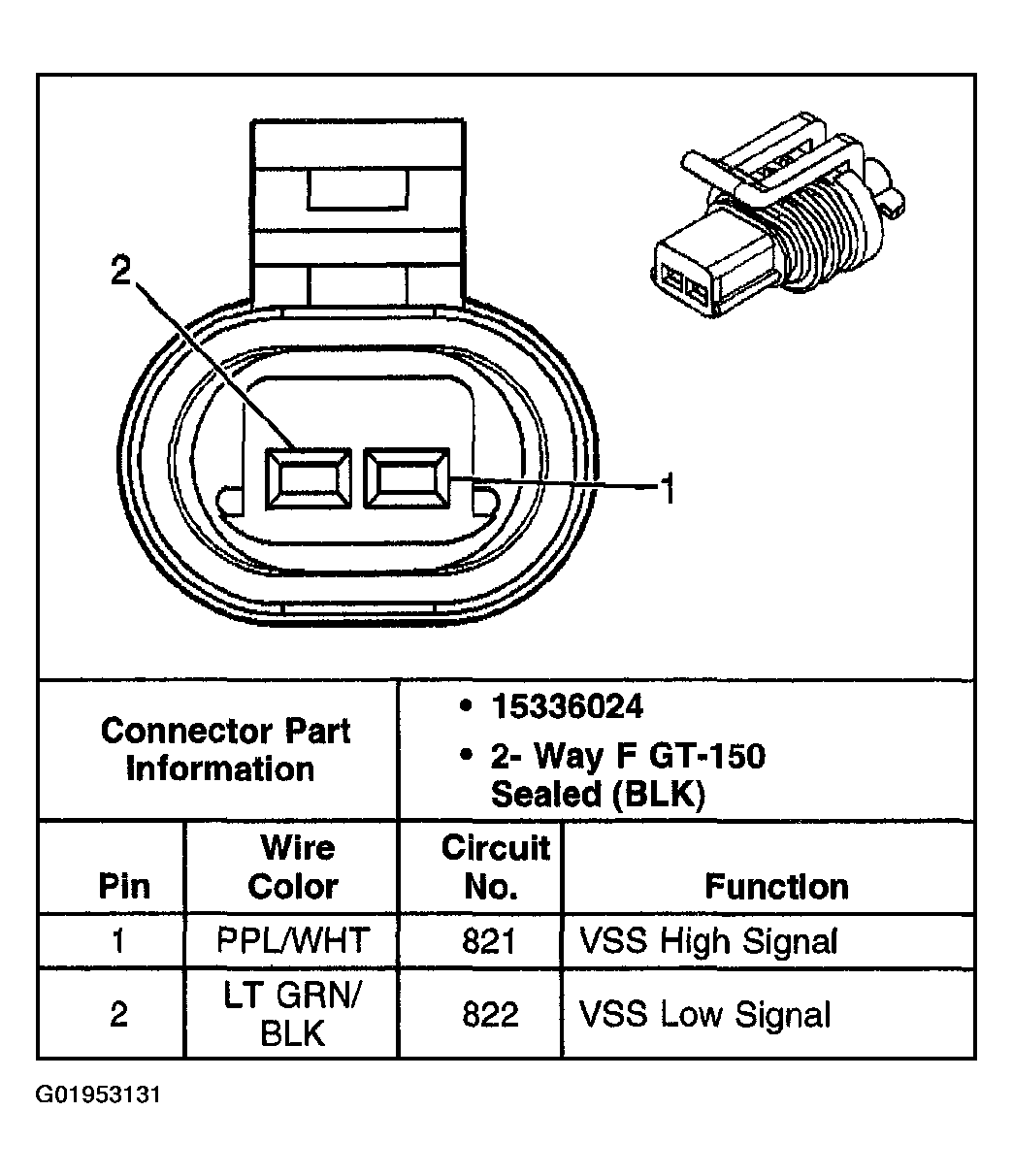

Fig 1: Vehicle Speed Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.

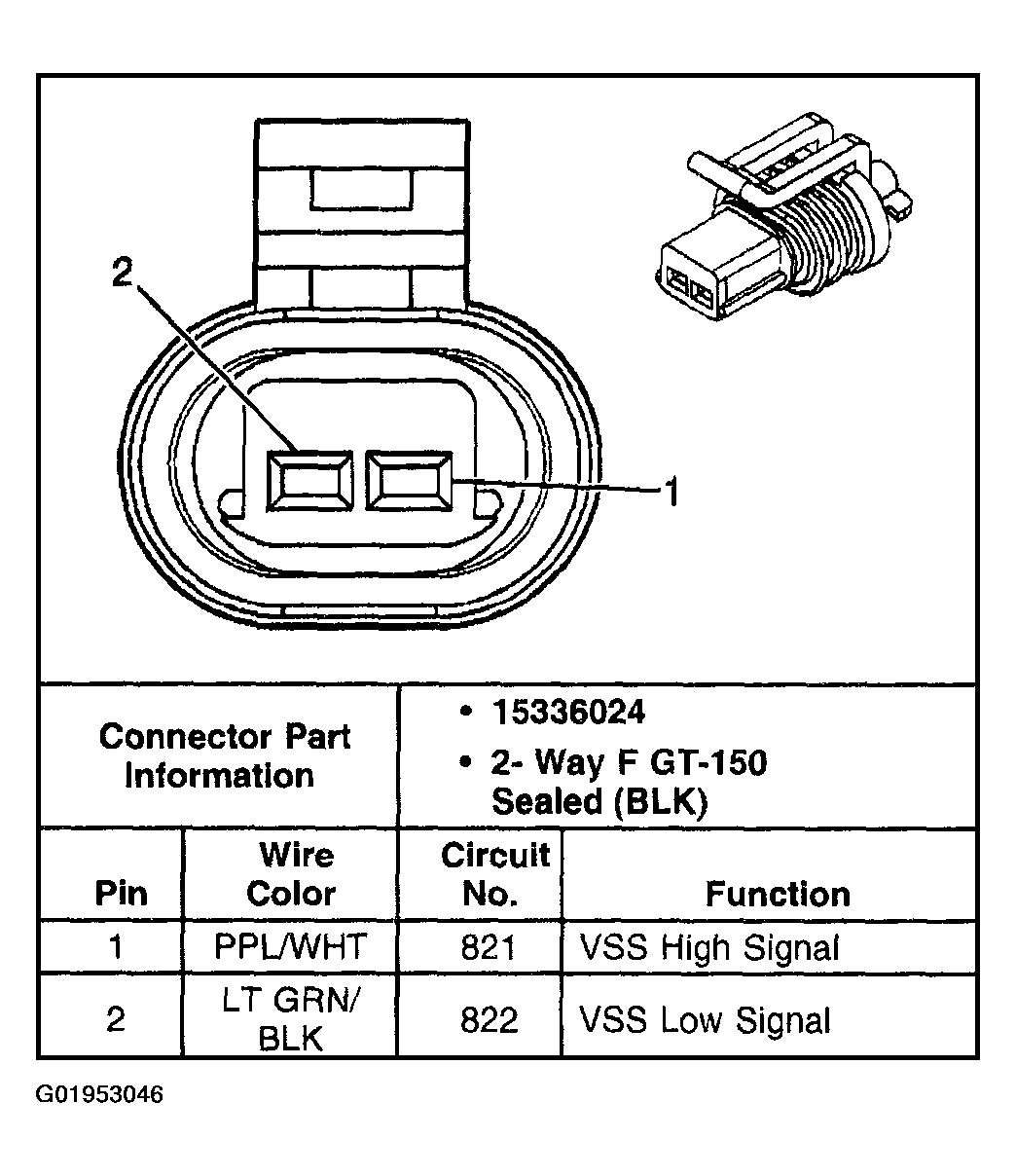

Fig 1: Vehicle Speed Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
