Secondary Fuel Level Sensor Connector End View

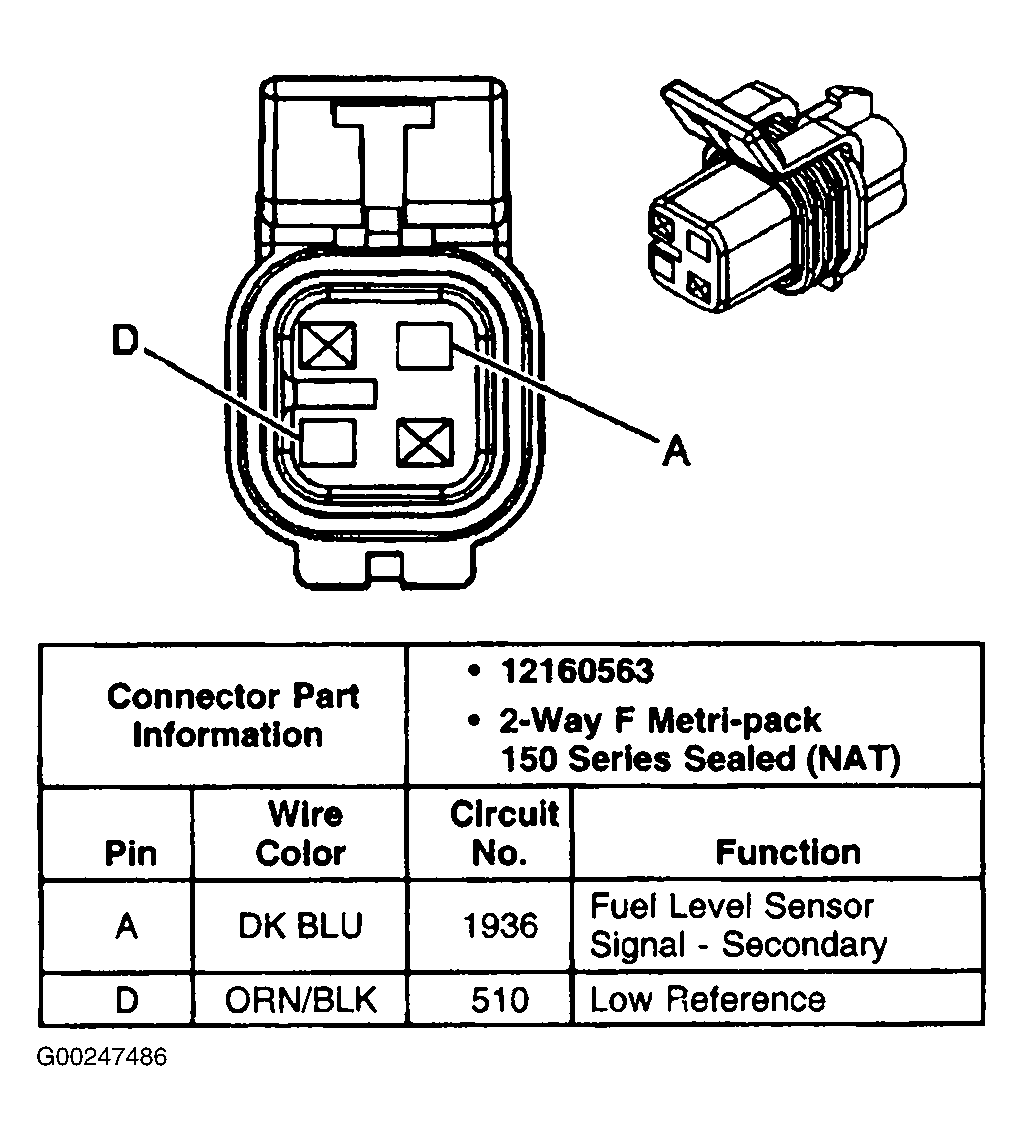

Fig 1: Secondary Fuel Level Sensor Connector End View

G00247486

Courtesy of GENERAL MOTORS CORP.
