Home >> GMC >> 2003 >> Sierra 1500 HD, RWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Propshaft Speed Sensor Connector End View - Front

Propshaft Speed Sensor Connector End View - Front

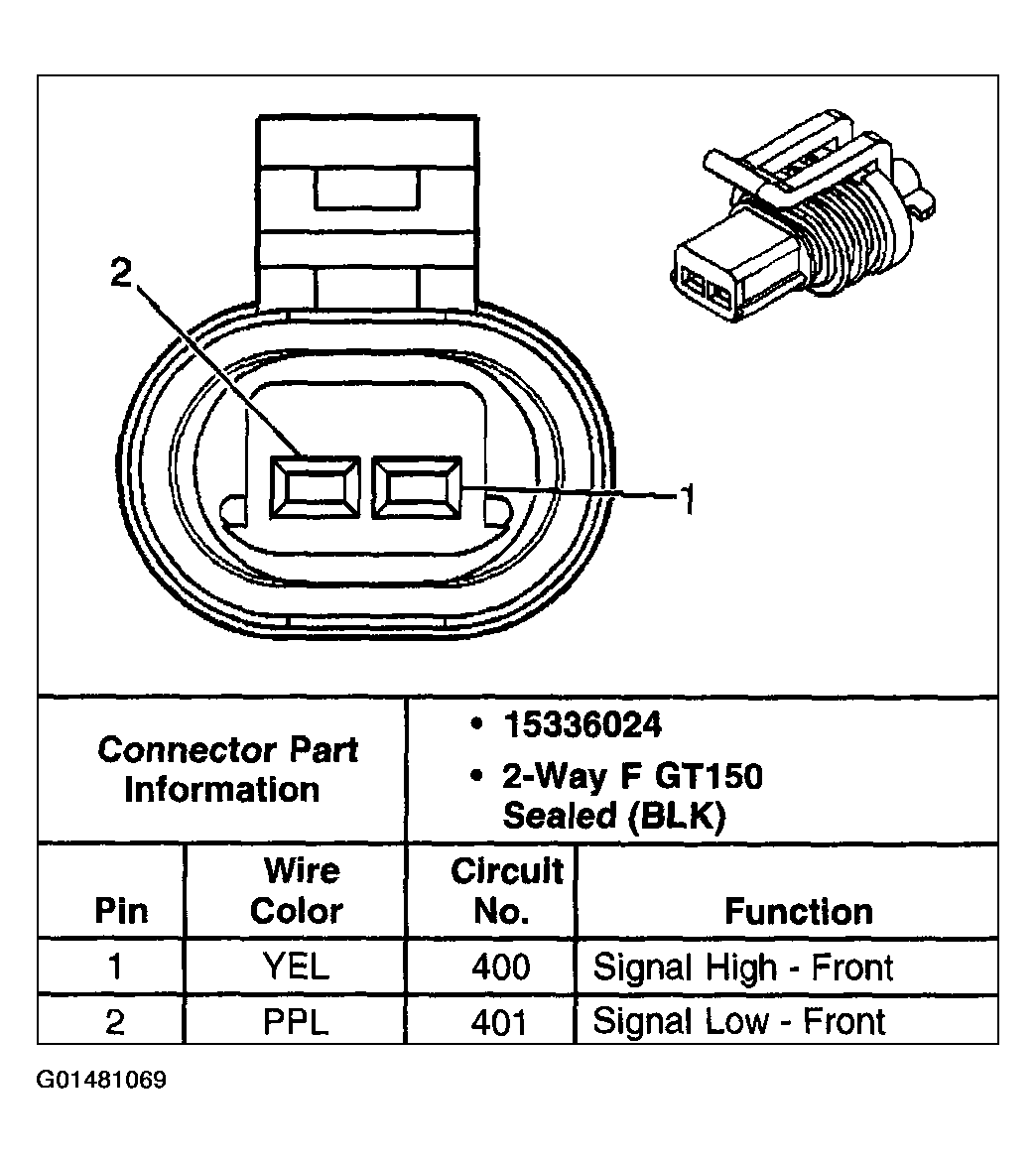

Fig 1: Propshaft Speed Sensor Connector End View - Front

G01481069

Courtesy of GENERAL MOTORS CORP.
