Input Speed Sensor Harness Connector End View

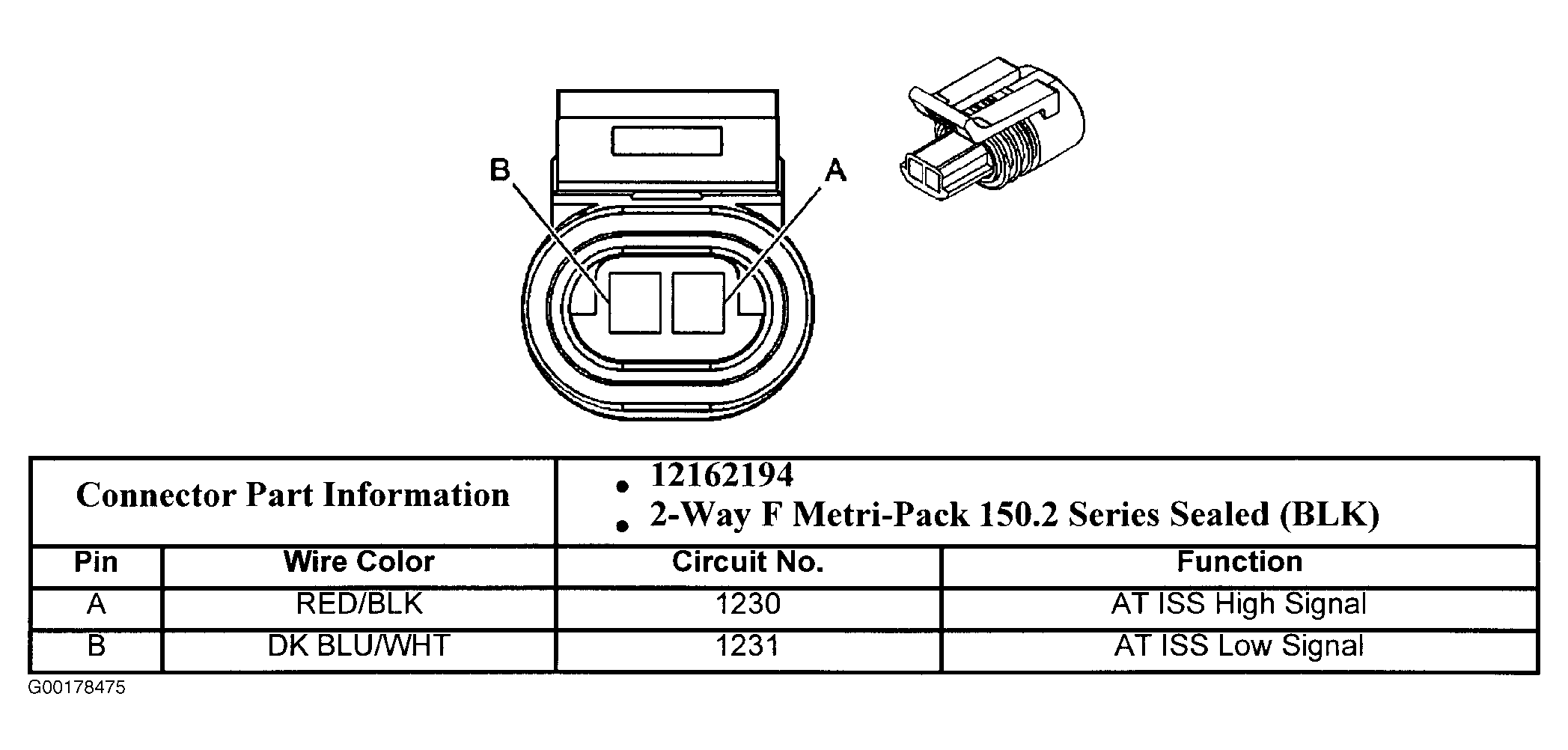

Fig 1: Input Speed Sensor Harness Connector End View

G00178475

Courtesy of GENERAL MOTORS CORP.
