Installation Procedure

  1. Connect the electrical connector to the sensor.
  2. Install the sensor to the radiator support brace and install the push pin retainer.
  3. Install the radiator grille to the vehicle. Refer to GRILLE REPLACEMENT (OLD STYLE) or GRILLE REPLACEMENT (NEW STYLE GMC) or GRILLE REPLACEMENT (NEW STYLE CHEVROLET) .

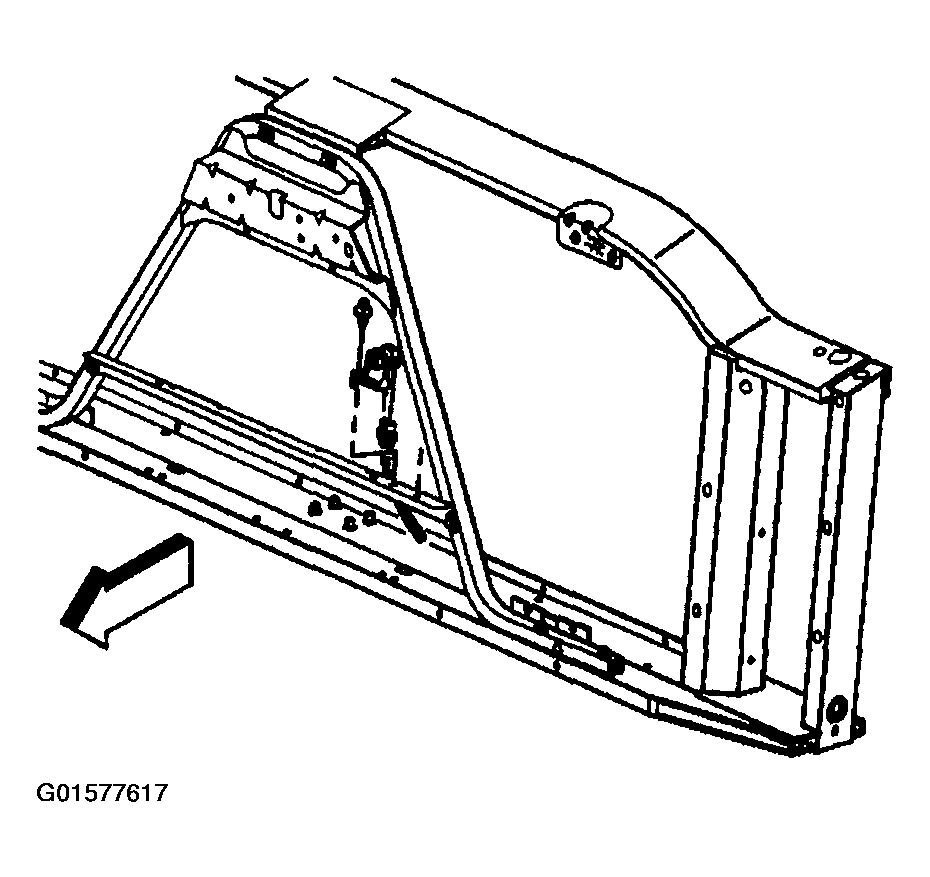

    Fig 1: Installing Ambient Air Temperature Sensor
    G01577617Courtesy of GENERAL MOTORS CORP.
