Installation Procedure

  1. Place the seat back clips on the retaining hooks.
  2. Install the rear storage compartment bracket, If removed. Refer to TOOL STORAGE COMPARTMENT BRACKET REPLACEMENT (PRO) .
    NOTE: Refer to FASTENER NOTICE .
  3. Install the seat retaining bolts (1).

    Tighten

    Tighten the seat retaining bolts to 55 N.m (41 lb ft).

  4. Fold the seat down.
  5. Pull the seat belt buckles through the seat cushion and seat back.

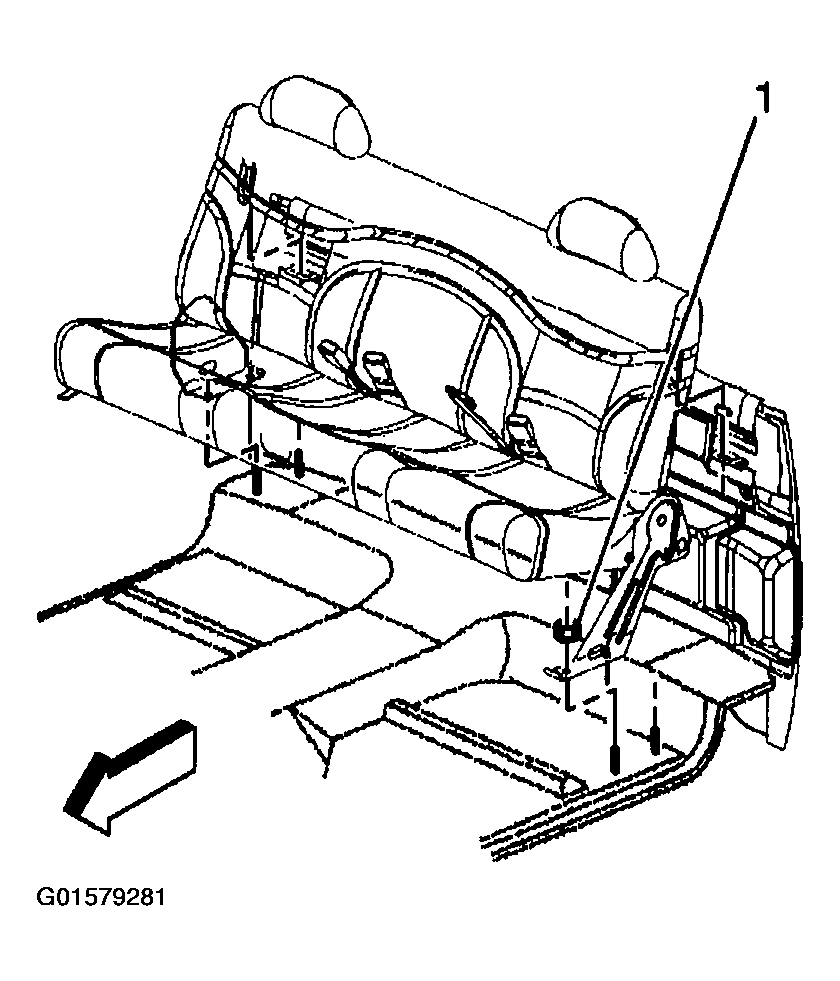

    Fig 1: Installing Seat Retaining Bolts
    G01579281Courtesy of GENERAL MOTORS CORP.
