Power Seat Systems Component Views

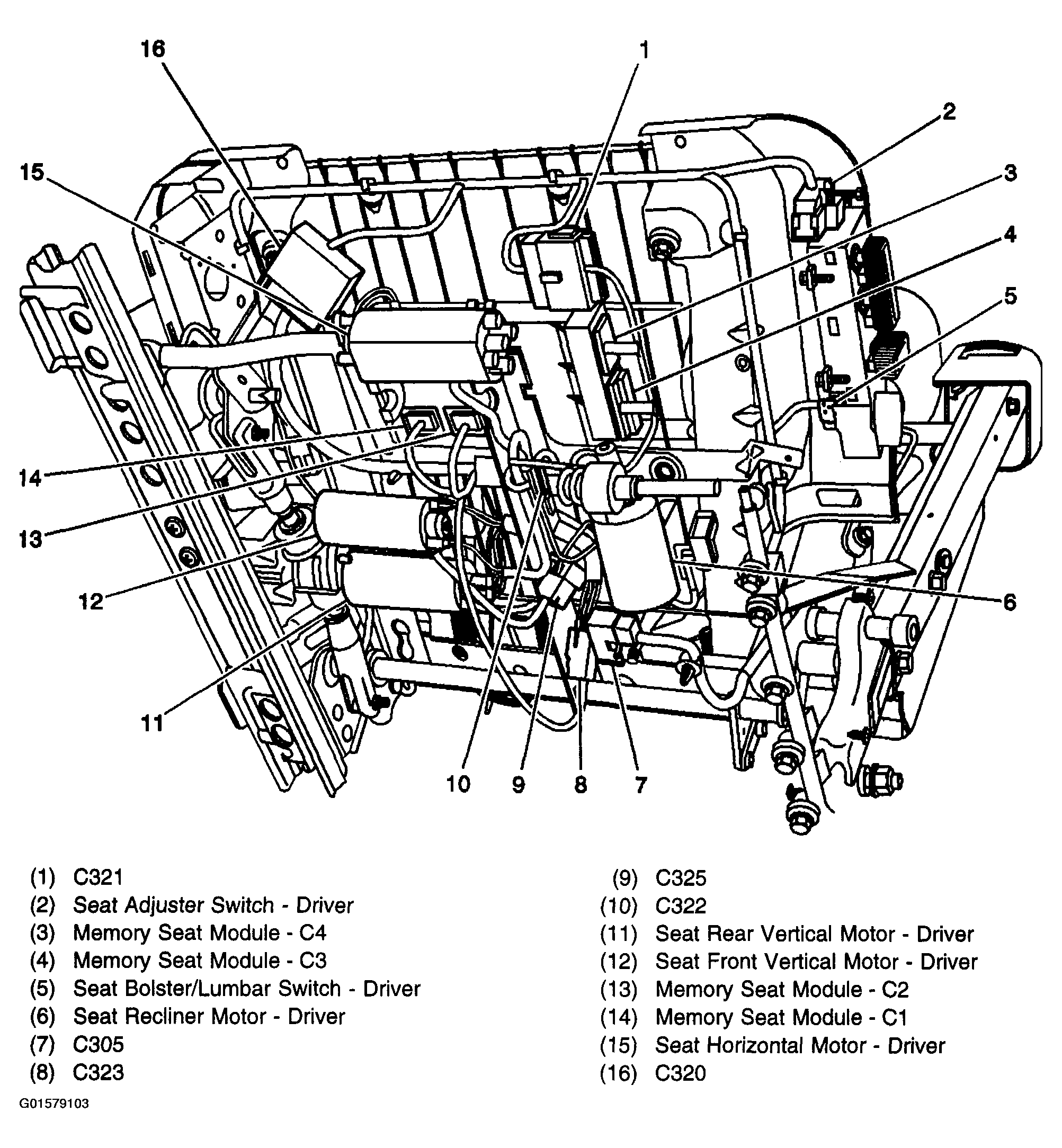

Fig 1: Driver Seat (1 Of 2)
G01579103Courtesy of GENERAL MOTORS CORP.

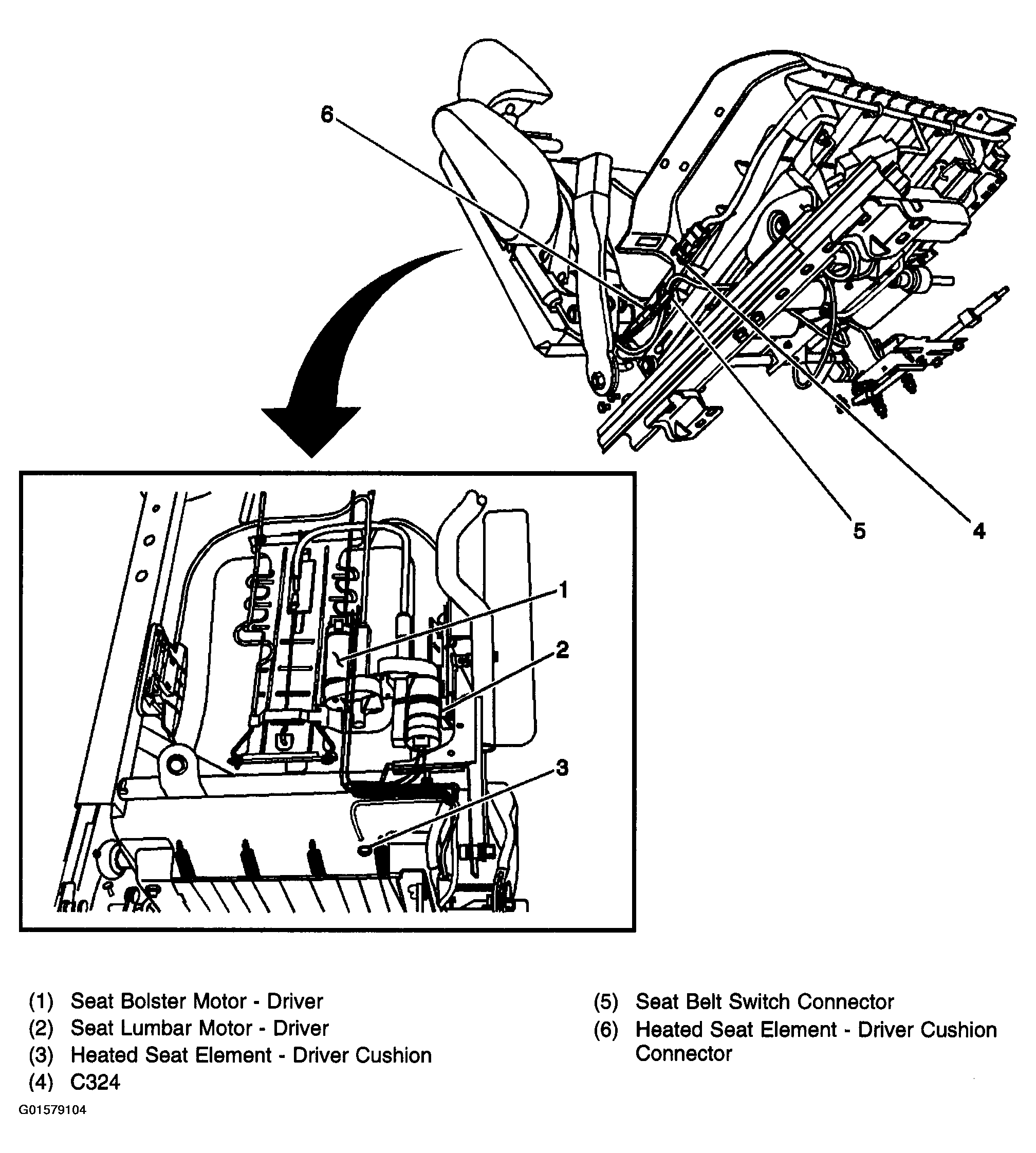

Fig 2: Driver Seat (2 Of 2)
G01579104Courtesy of GENERAL MOTORS CORP.

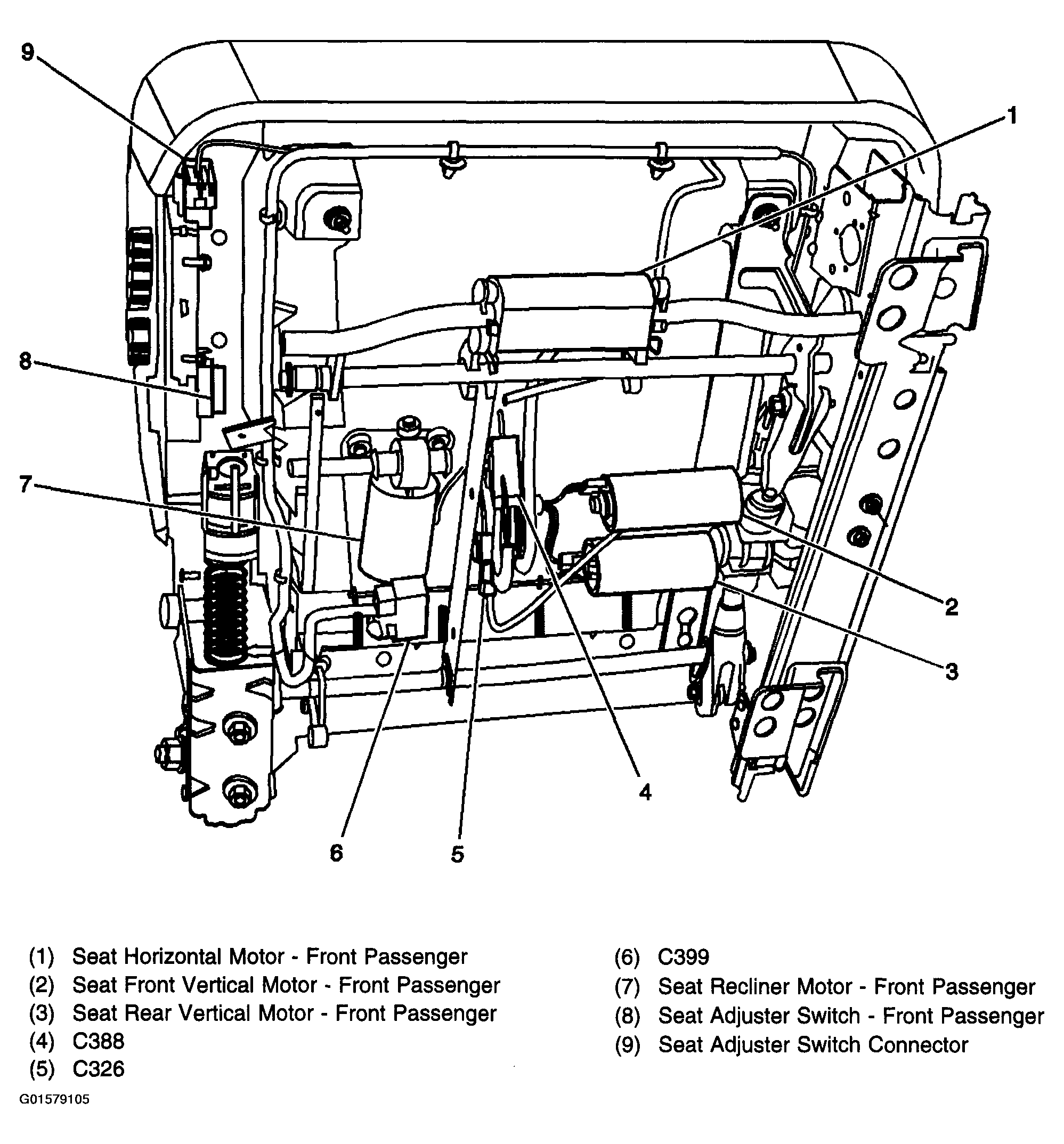

Fig 3: Front Passenger Seat (1 Of 2) (W/ AN3)
G01579105Courtesy of GENERAL MOTORS CORP.

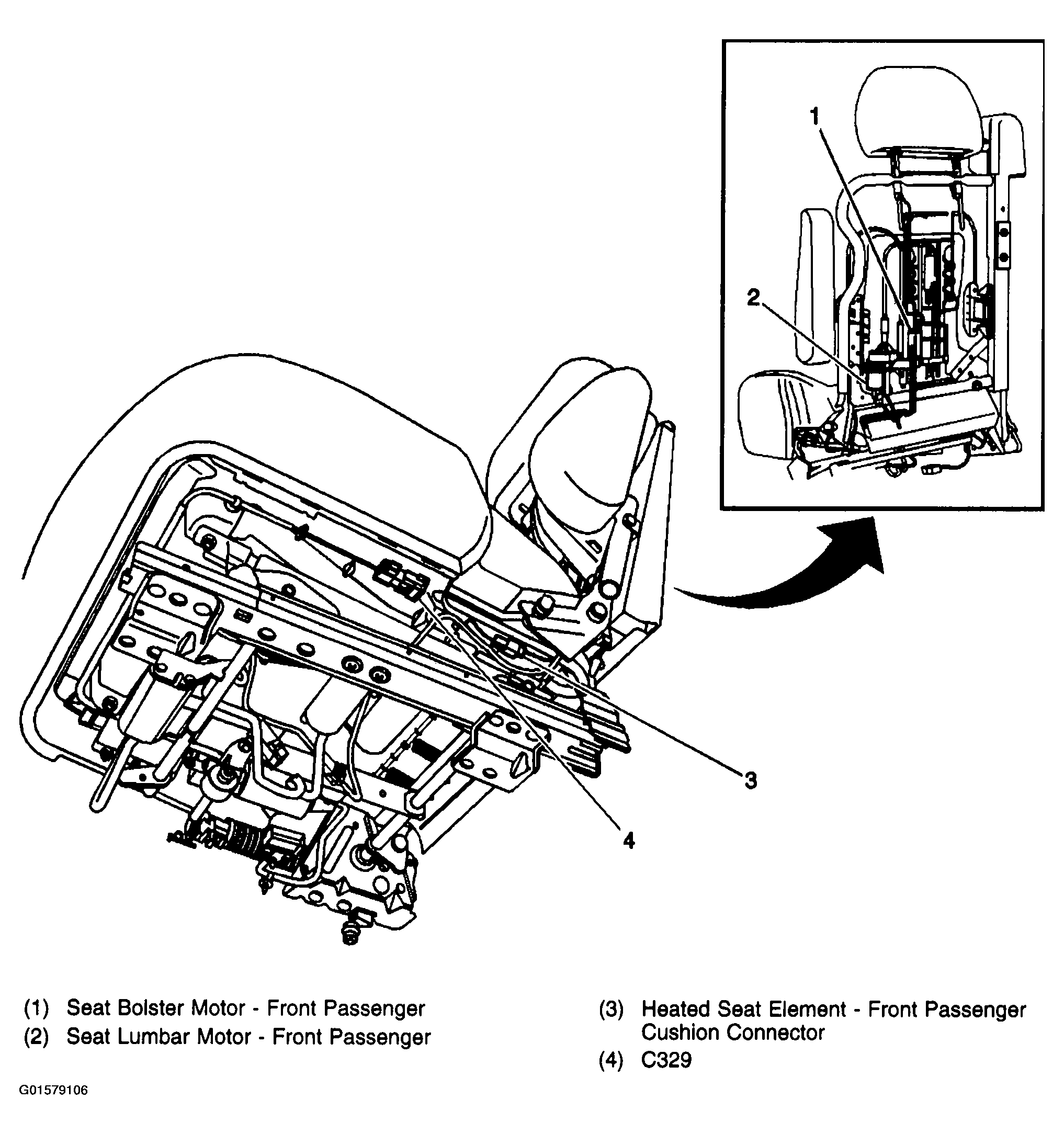

Fig 4: Front Passenger Seat (2 Of 2) (W/ AN3)
G01579106Courtesy of GENERAL MOTORS CORP.
