Front Toe Adjustment

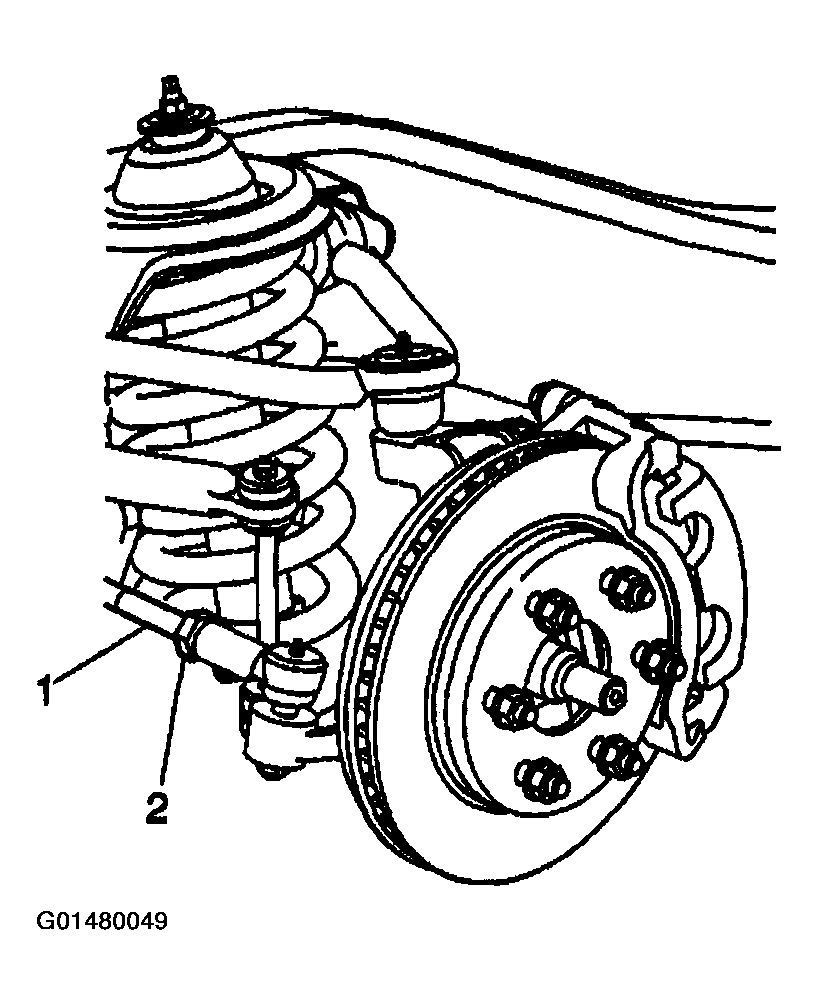

Fig 1: Loosen Jam Nut On The Tie Rod
G01480049Courtesy of GENERAL MOTORS CORP.
  1. Loosen the jam nut on the tie rod (2).
  2. Rotate the inner tie rod (1) to the required toe specification setting. Refer to Wheel Alignment Specifications .
    NOTE: Refer to FASTENER NOTICE .
  3. Tighten the jam nut on the tie rod.

    Tighten

    Tighten the tie rod jam to 68 N.m (50 lb ft).

  4. Check the toe setting after tightening.
  5. Re-adjust the toe setting if necessary.
