Installation Procedure

  1. Position the steering wheel control switch to the steering wheel.
  2. Connect the electrical connector to the steering wheel control switch.
  3. Install the steering wheel control switch into the steering wheel, ensuring the retaining tabs are fully seated.

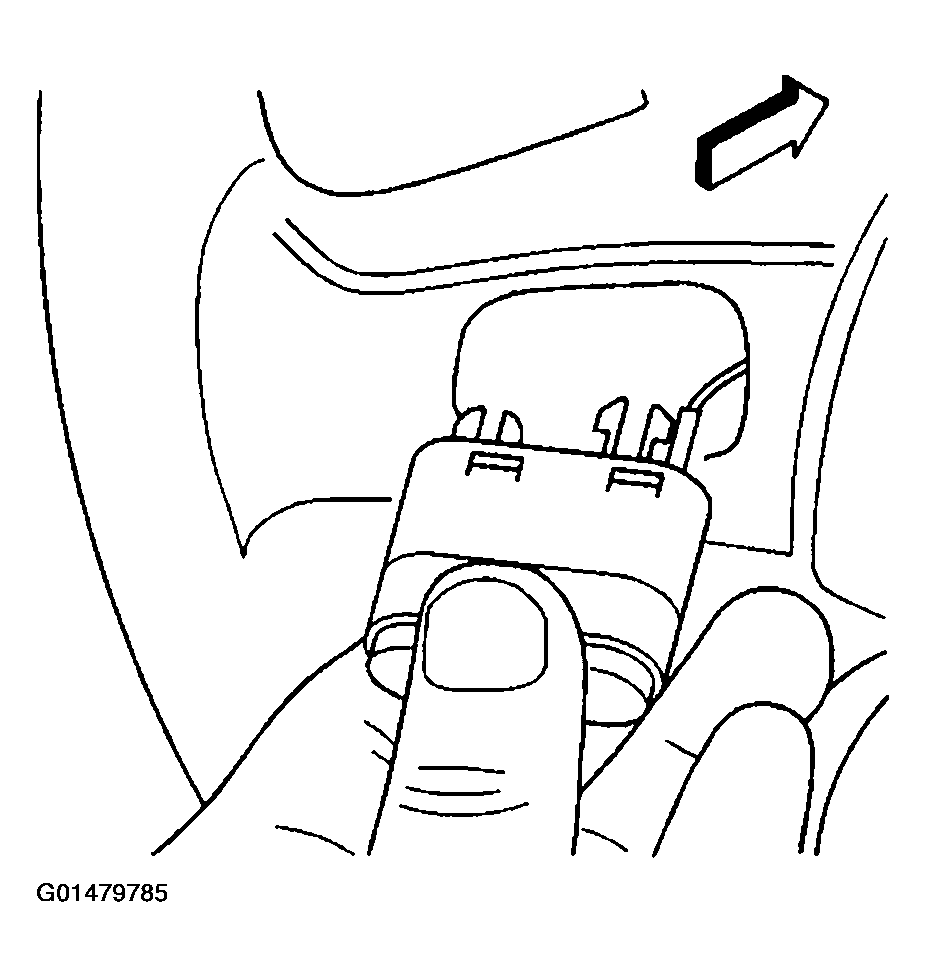

    Fig 1: Install Electrical Connector To Steering Wheel Control Switch
    G01479785Courtesy of GENERAL MOTORS CORP.
  4. Install the shroud to the steering wheel.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the shroud retaining screws to the steering wheel.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  6. Install the steering wheel. Refer to Steering Wheel Replacement .

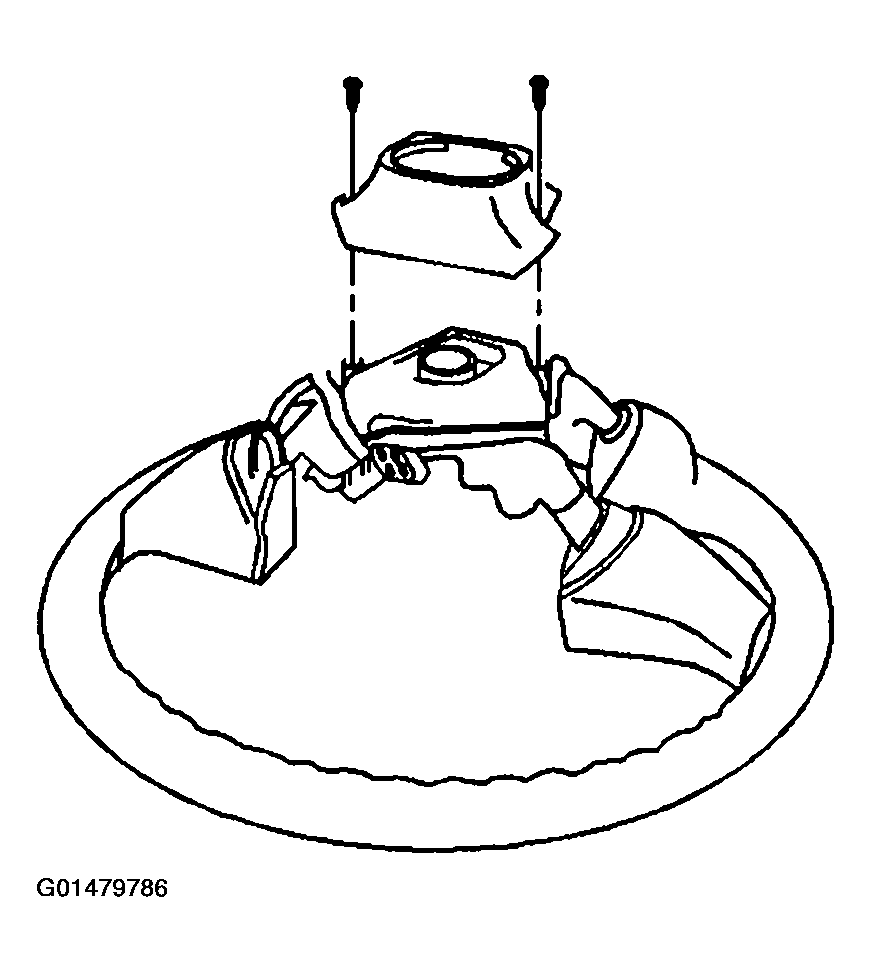

    Fig 2: Install Shroud & Retaining Screws To Steering Wheel
    G01479786Courtesy of GENERAL MOTORS CORP.
