Removal Procedure

Raise the vehicle, Refer to JACKING AND LIFTING .
IMPORTANT: Use the J 24319-B in order to separate all the tie rods and ball joints.
Remove the nut (2) from the outer tie rod ball stud (3).

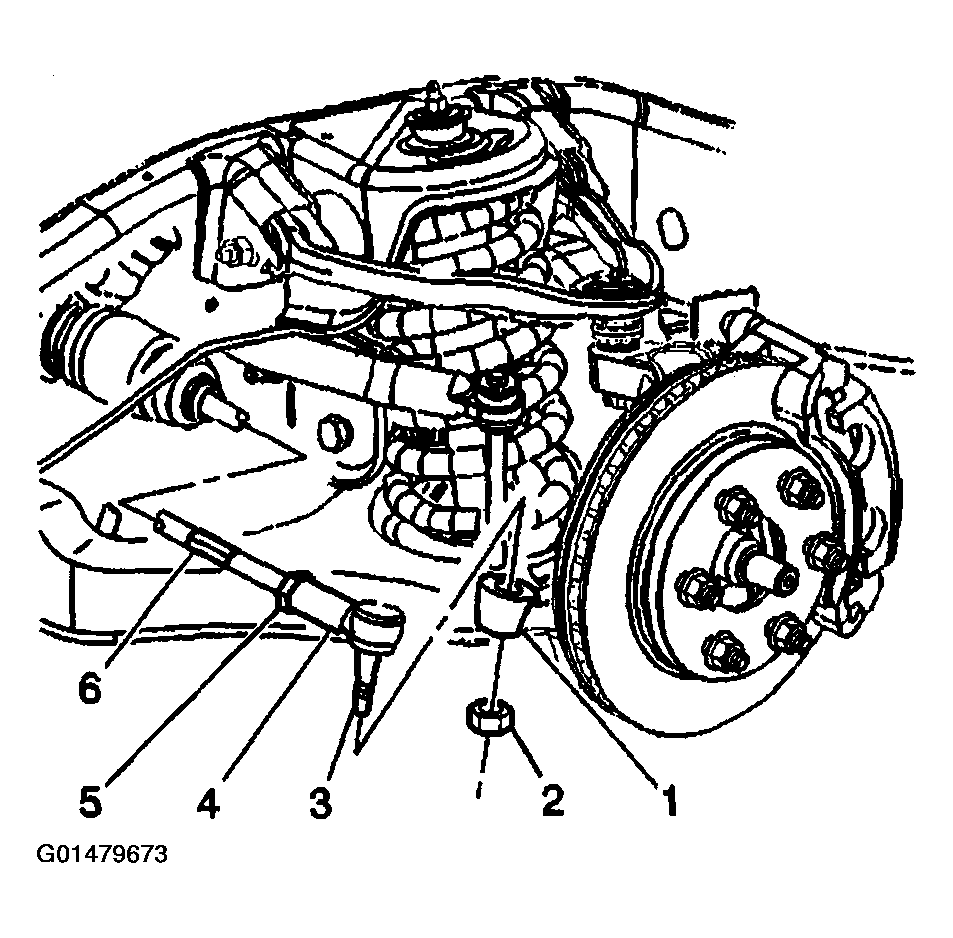

Fig 1: Remove Nut From Outer Tie Rod Ball Stud
Courtesy of GENERAL MOTORS CORP.
Use the J 24319-B in order to remove the outer tie rod ball stud from the steering knuckle.
IMPORTANT: Do not reuse the nut.
Remove the tie rod end from the shaft by loosening the jam nut.

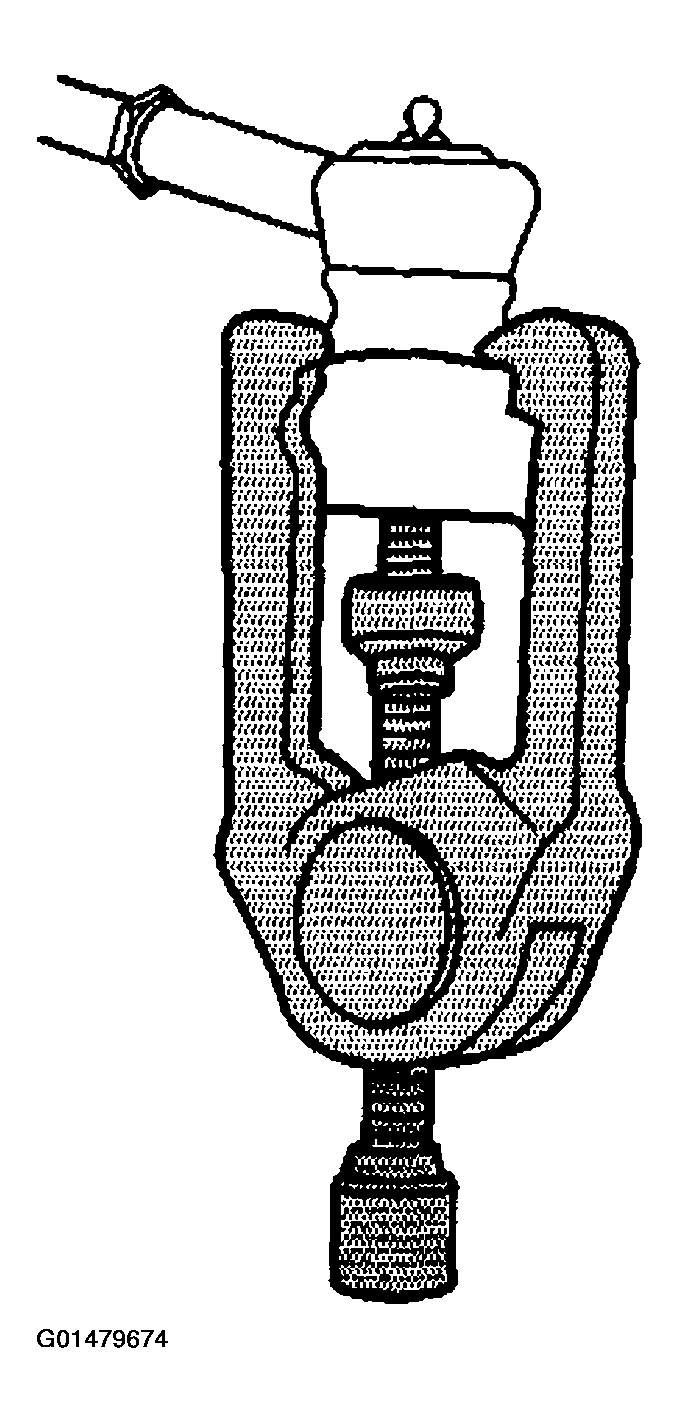

Fig 2: Remove Outer Tie Rod Ball Stud From Steering Knuckle Using J 34319-B
Courtesy of GENERAL MOTORS CORP.
Remove the outer tie rod end from the really rod.
Inspect the shaft (6) for bent or damaged threads.
Clean the tapered surface of the steering knuckle (1).

Fig 3: Inspecting Shaft & Clean Steering Knuckle
Courtesy of GENERAL MOTORS CORP.
