Installation Procedure
IMPORTANT:
Perform the following procedure before installing the new tie rod ends:
- Remove all traces of the oil, grease, or other contaminants.
- Clean the threads of the tie rod with denatured alcohol or the equivalent and allow to dry.
- Apply red LOCTITE Threadlocker.
GM P/N 12345493 (Canadian P/N 10953488) to the threads of the inner tie rod.
NOTE: Refer to FASTENER NOTICE . - Install the inner tie rod to the relay rod.
Tighten

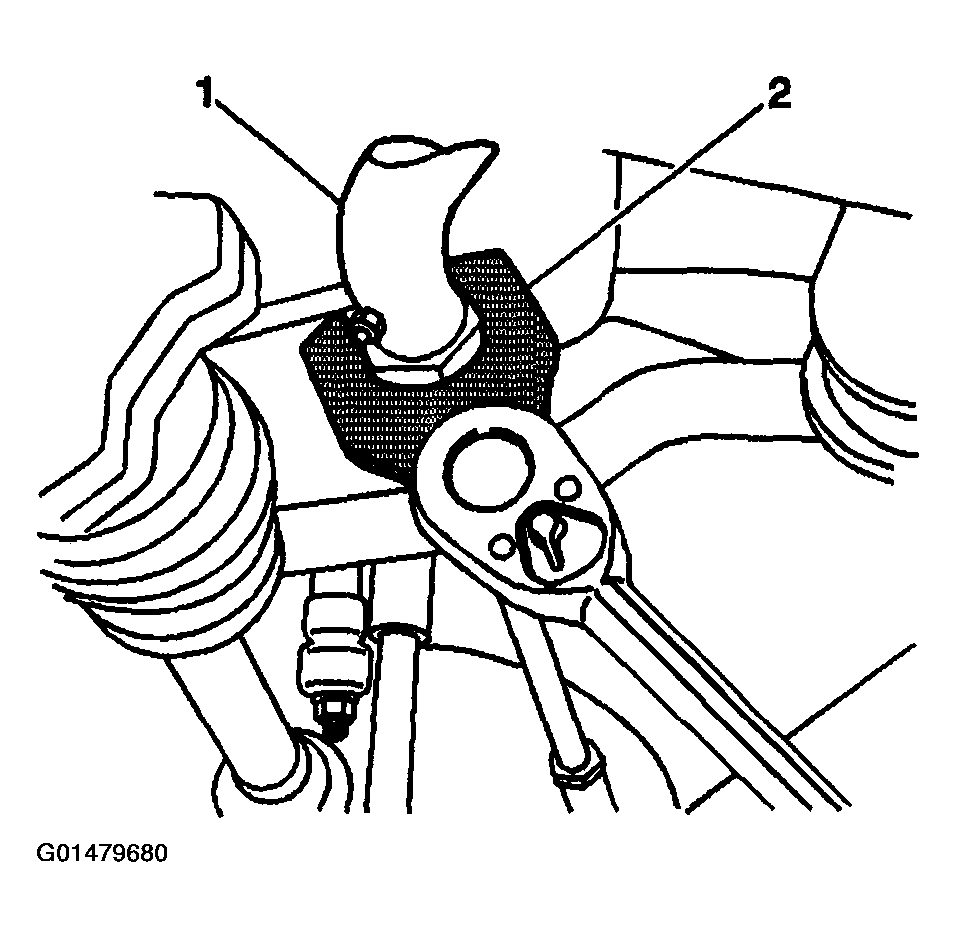

Using the J 34028 (2) tighten the tie rod to 100 N.m (74 lb ft).
- Install the outer tie rod end. Refer to Tie Rod Replacement .
- Install the engine protection shield, if equipped.
- Lower the vehicle.
- Verify the wheel alignment. Refer to WHEEL ALIGNMENT SPECIFICATIONS .
