GMC
>>
2003
>>
Sierra 1500 HD, 4WD
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering System
>>
Specifications
>>
Power Steering Pump Specifications
Power Steering Pump Specifications

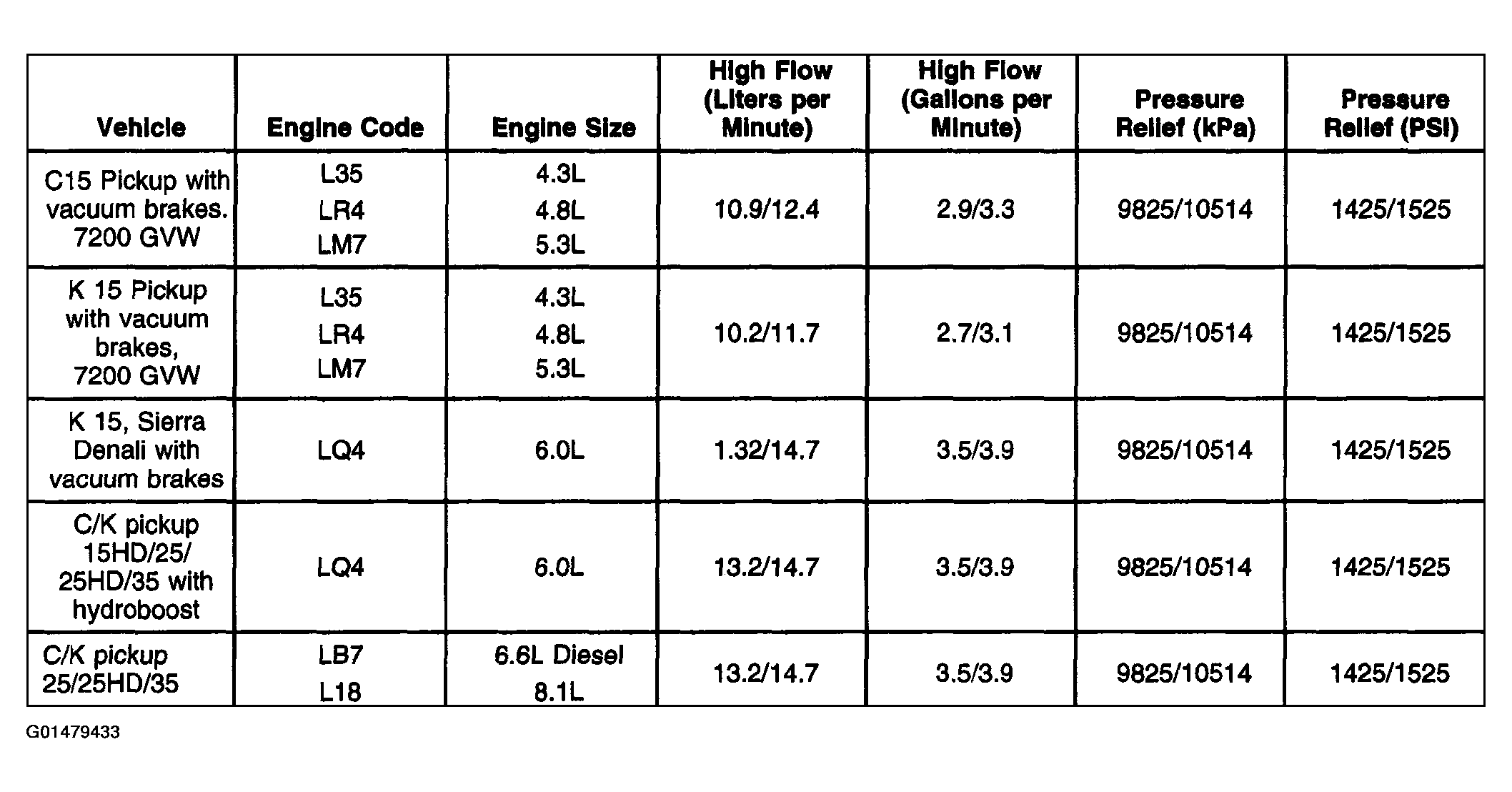

Fig 1: Power Steering Pump Specifications
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
