Removal Procedure

  1. Remove the rear seat. Refer to SEAT REPLACEMENT-REAR (EXTENDED CAB W/4TH DOOR) or SEAT REPLACEMENT-REAR (EXTENDED CAB) or SEAT REPLACEMENT-REAR (60/40 SPLIT) .
  2. Remove the seat belt guide cover (1).
  3. Remove the rear seat belt to body bolts (2).

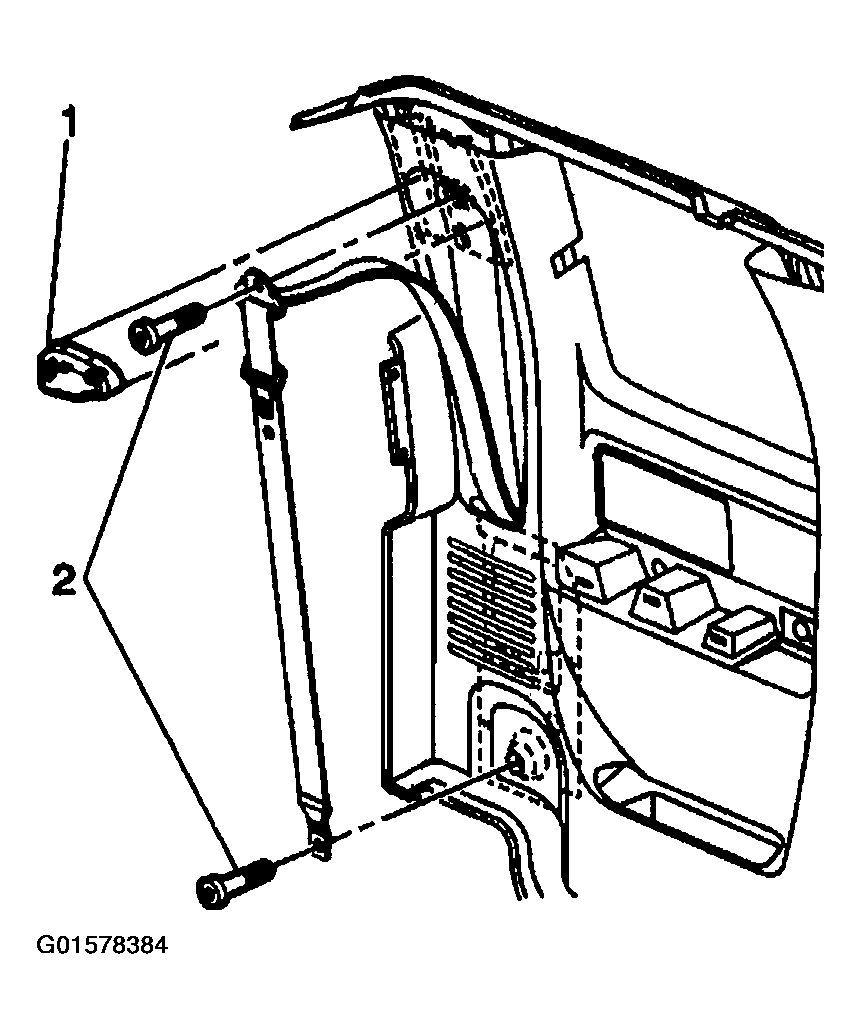

    4. Fig 1: Removing Seat Belt Guide Cover & Body Bolts (Extended Cab)
    G01578384Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT-FRONT SEAT .
  5. Remove the rear seat belt retractor to body bolt (1).
  6. Remove the retractor from the vehicle.

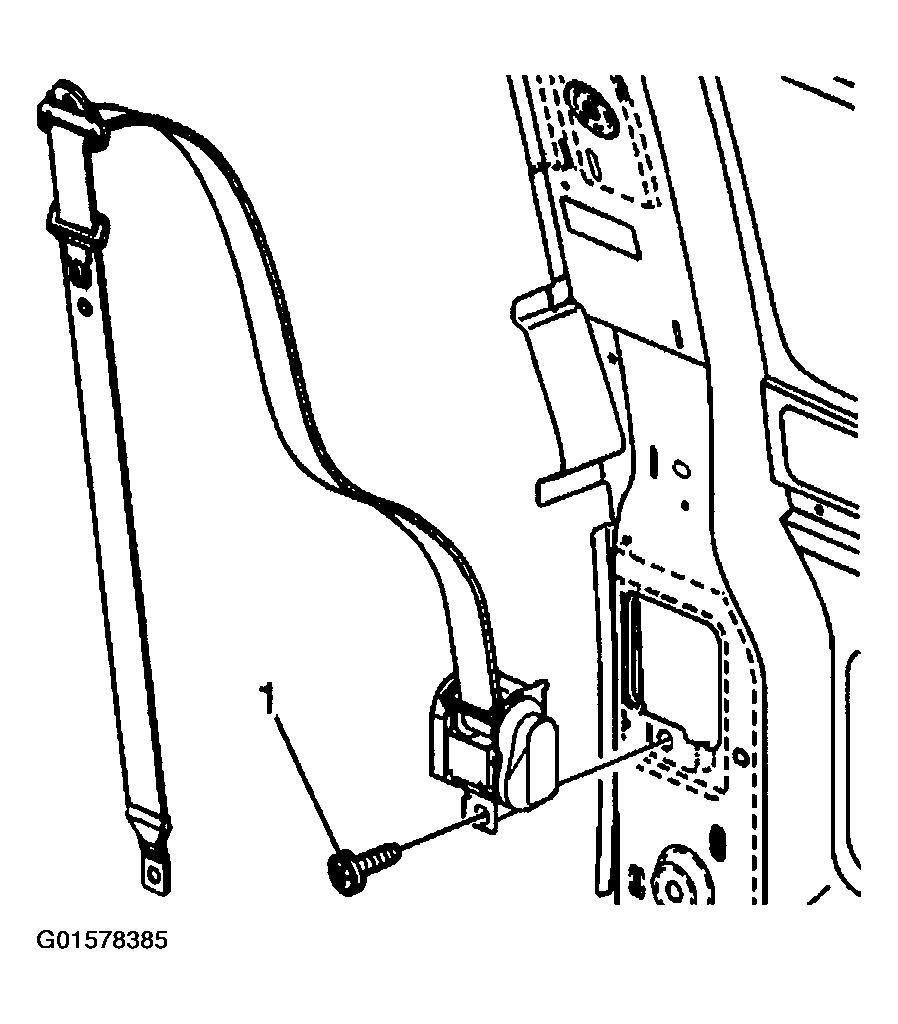

    Fig 2: Removing Rear Seat Belt Retractor To Body Bolt (Extended Cab)
    G01578385Courtesy of GENERAL MOTORS CORP.
