Home >> GMC >> 2003 >> Sierra 1500 HD, 4WD >> Repair and Diagnosis >> Electrical >> Horns >> Horn Systems >> Component Locator >> Horns Components Views

Horns Components Views

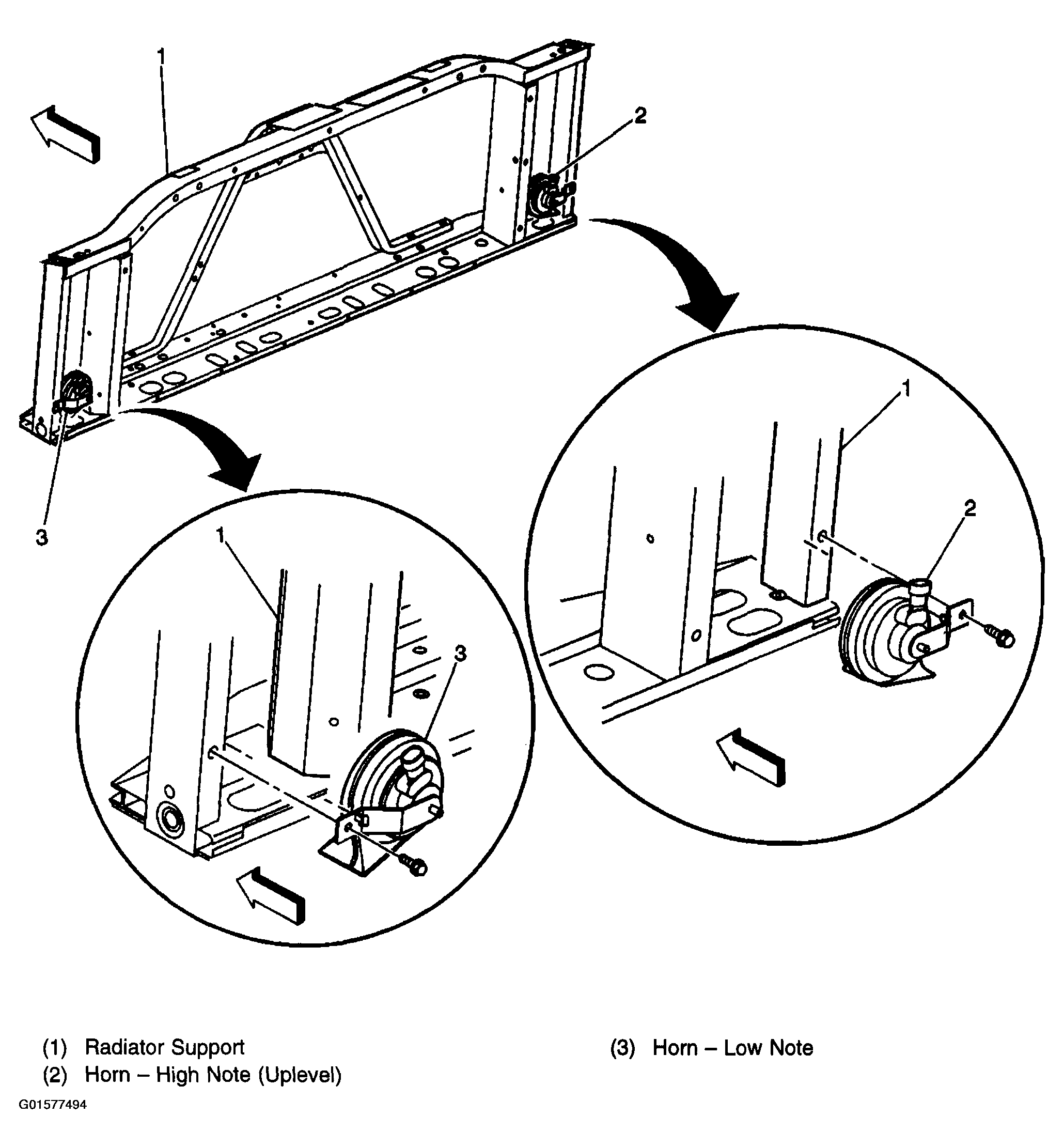

Fig 1: Radiator Support-Horn Components

G01577494

Courtesy of GENERAL MOTORS CORP.
