Installation Procedure

  1. Install the battery tray.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the battery tray bolts to the battery tray support.

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

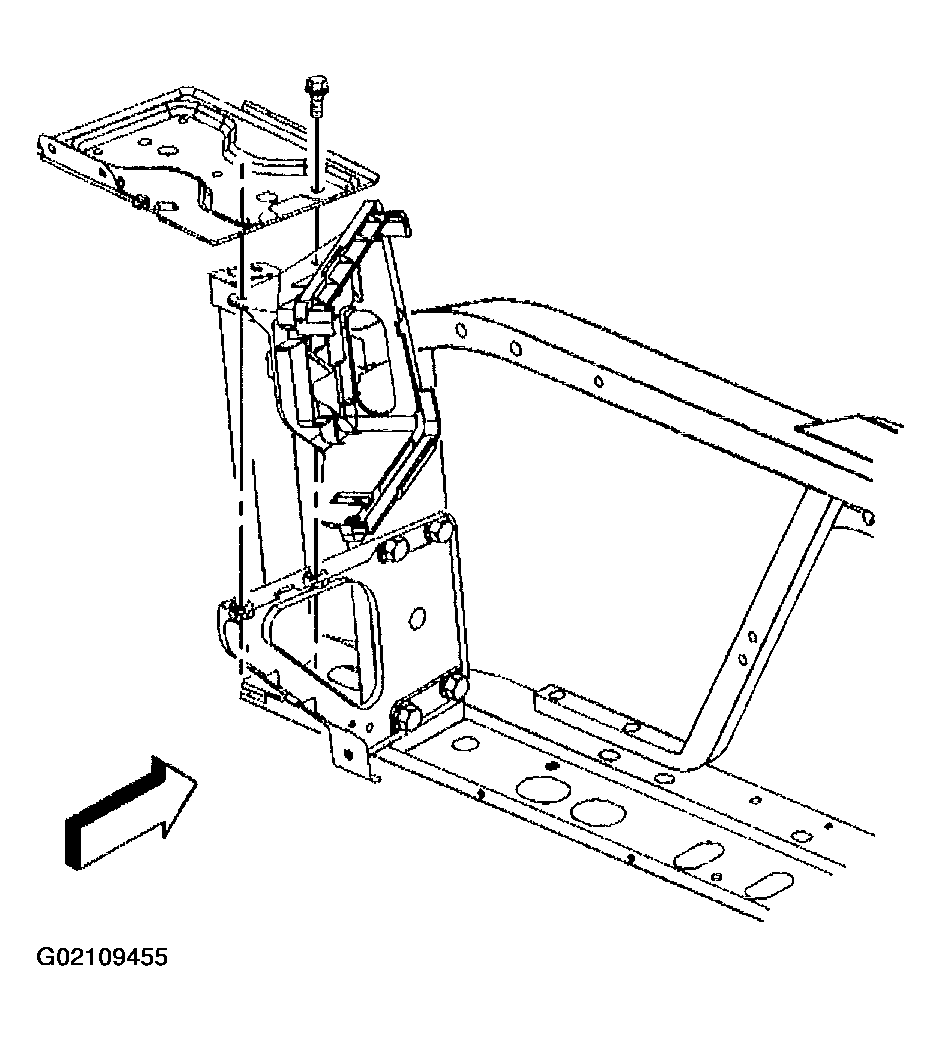

    Fig 1: Install Battery Tray & Bolts
    G02109455Courtesy of GENERAL MOTORS CORP.
  3. Install the battery tray bolts to the fender inner panel.

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

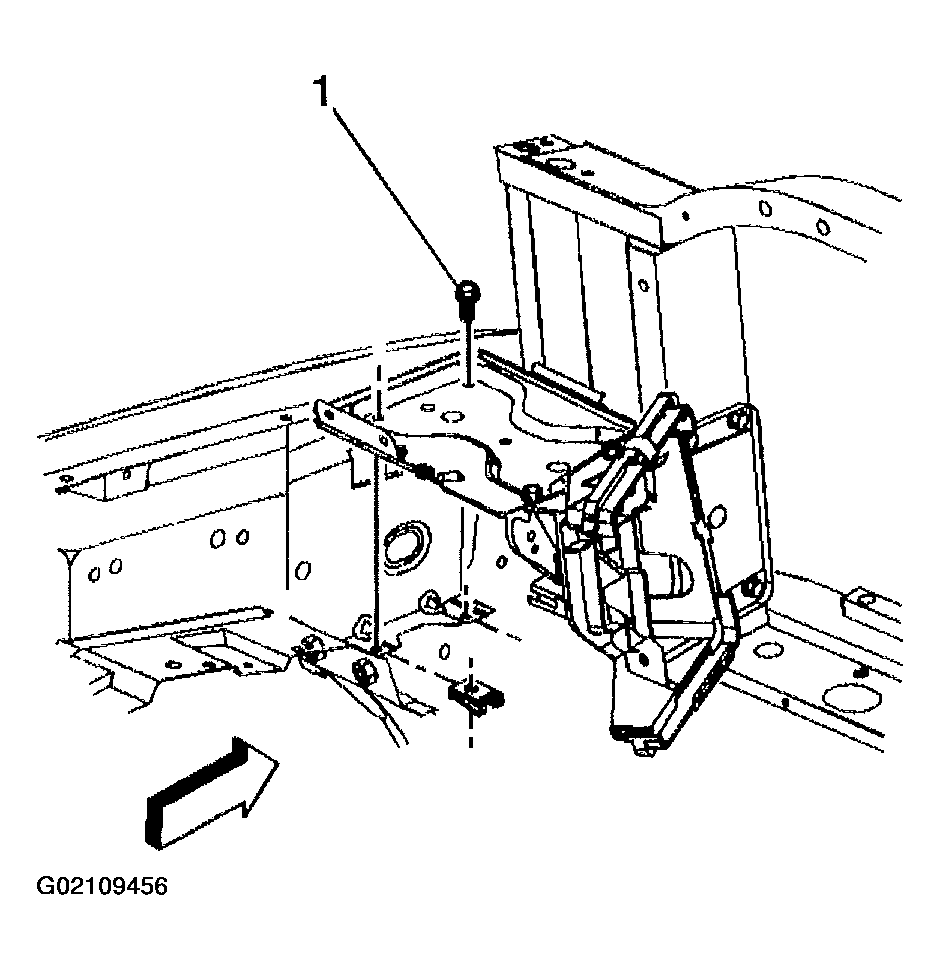

    Fig 2: Install Battery Tray Bolts
    G02109456Courtesy of GENERAL MOTORS CORP.
  4. Install the battery tray bolts to the battery tray reinforcement.

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

  5. Install the battery. Refer to Battery Replacement .

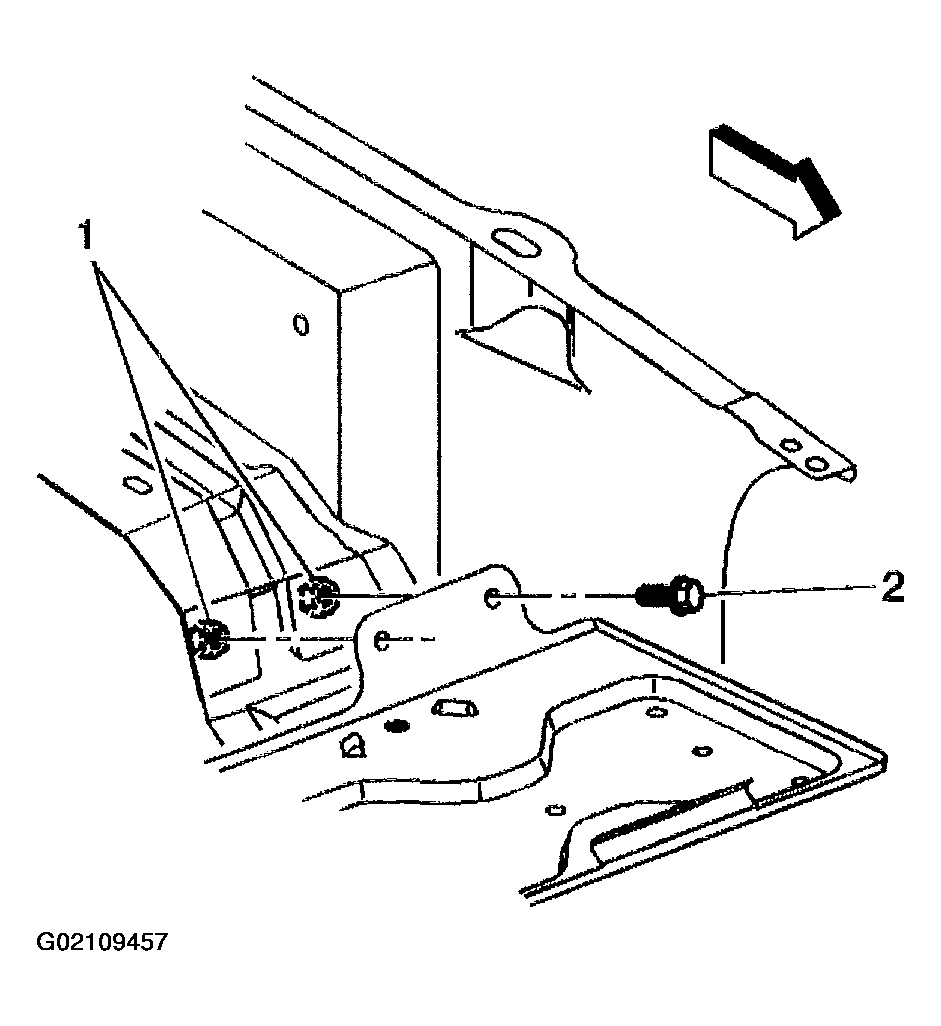

    Fig 3: Install Battery Tray Bolts
    G02109457Courtesy of GENERAL MOTORS CORP.
