Windshield Wiper Motor Module Connector End View

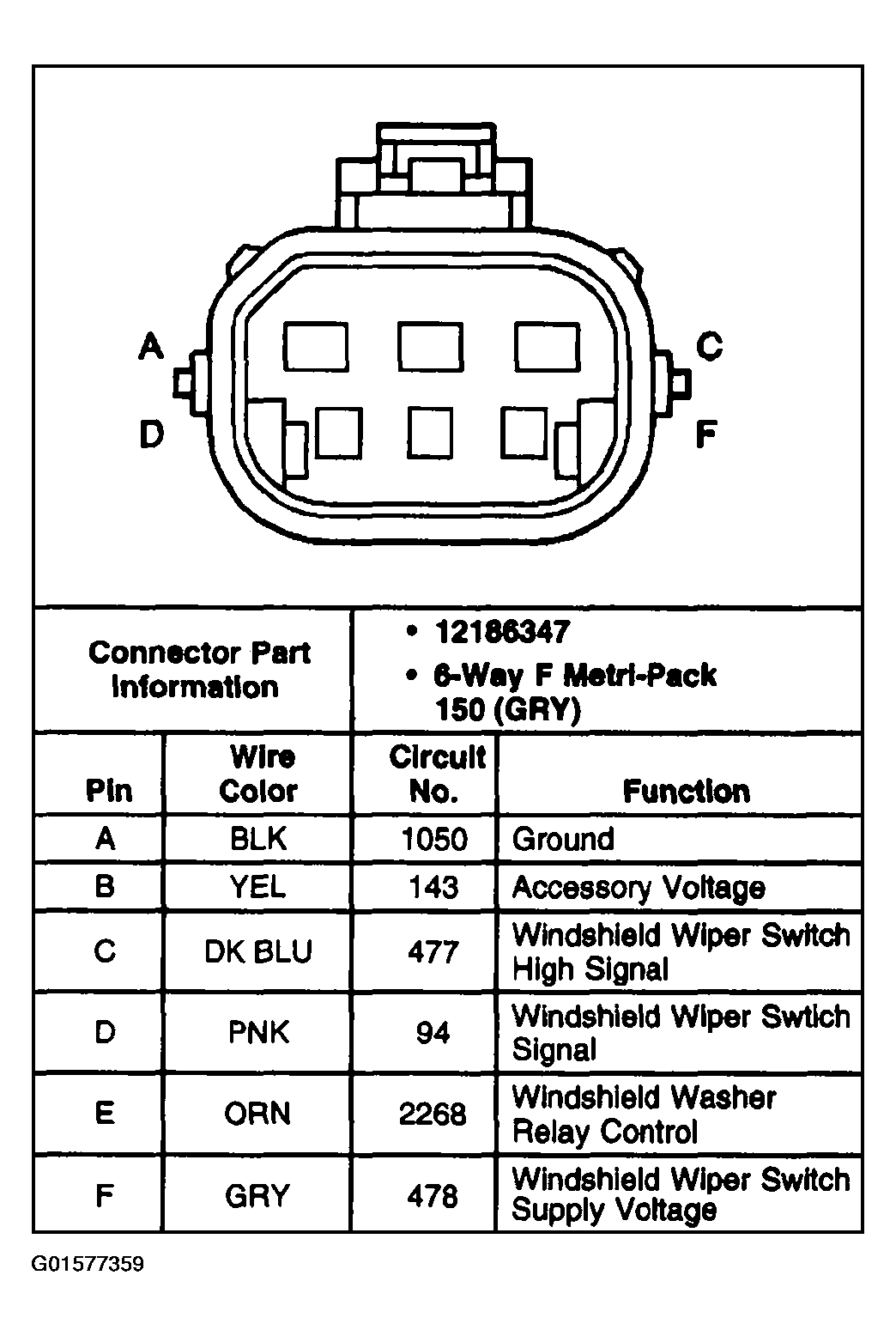

Fig 1: Windshield Wiper Motor Module Connector End View

G01577359

Courtesy of GENERAL MOTORS CORP.
