Transmission Control Module Harness Connector End View C2

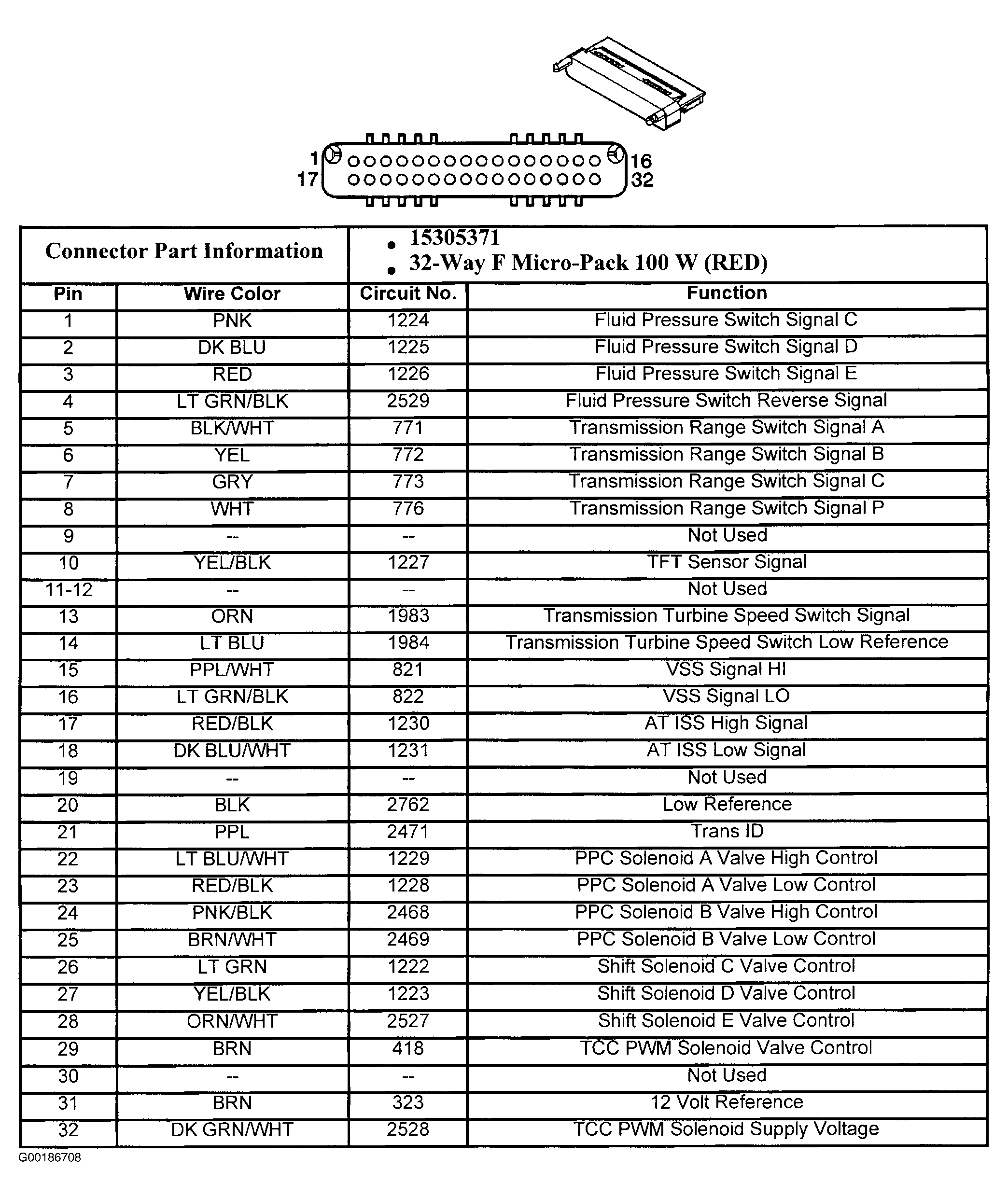

Fig 1: Transmission Control Module Harness Connector End View C2

G00186708

Courtesy of GENERAL MOTORS CORP.
