Transfer Case Shift Control Module - C3 Connector End View

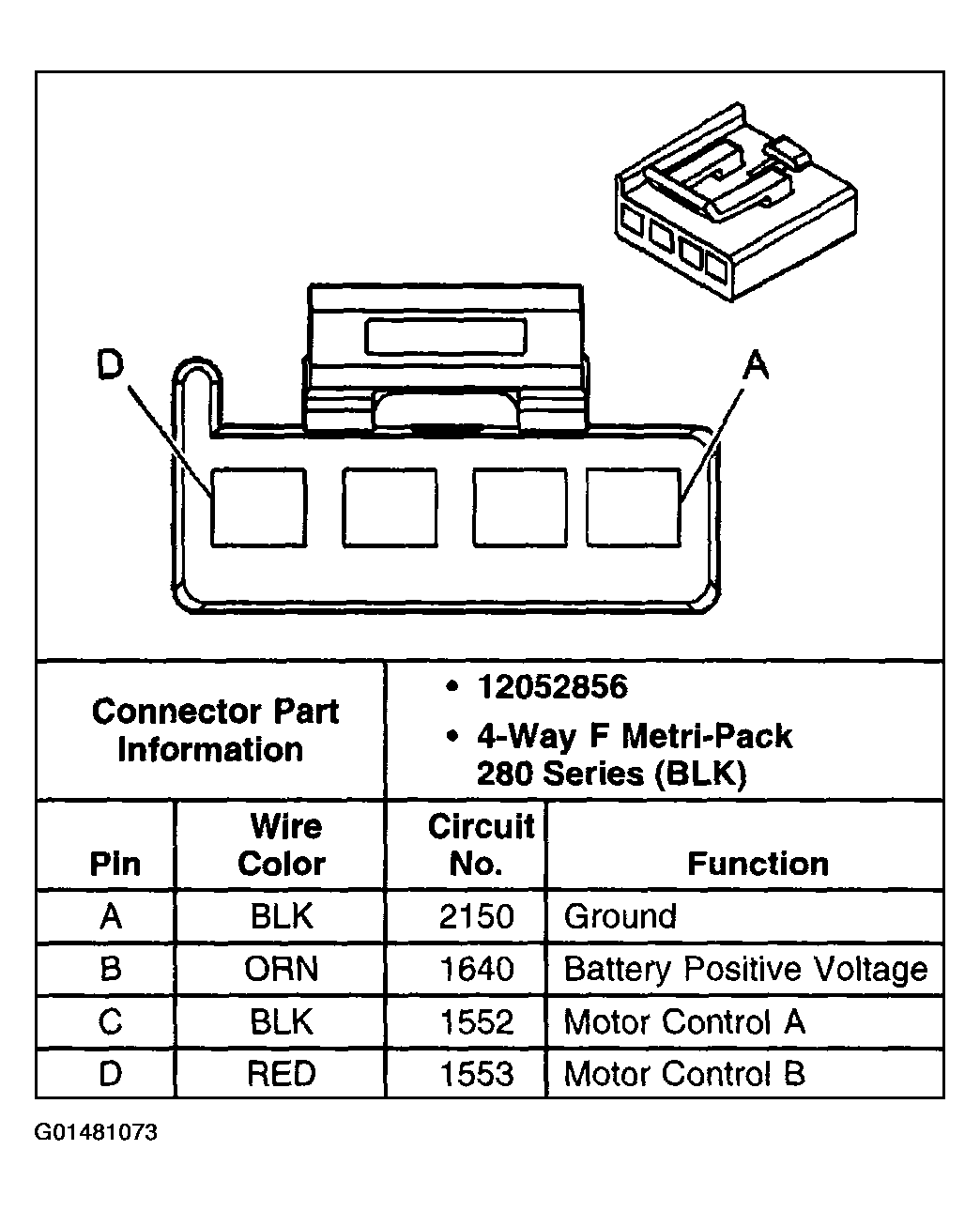

Fig 1: Transfer Case Shift Control Module - C3 Connector End View
G01481073Courtesy of GENERAL MOTORS CORP.

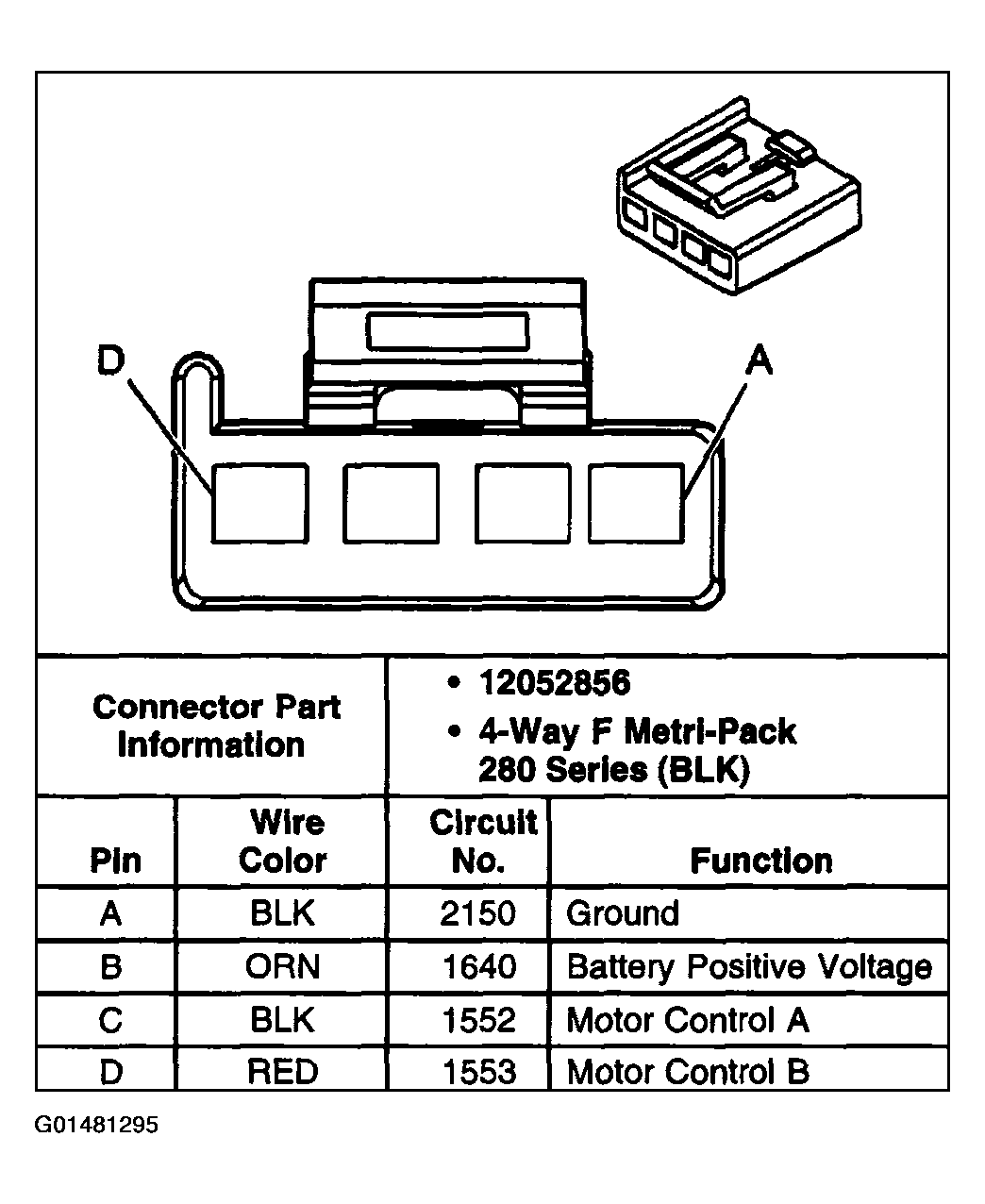

Fig 1: Transfer Case Shift Control Module - C3 Connector End View
G01481295Courtesy of GENERAL MOTORS CORP.
