Transfer Case Encoder Motor Connector End View

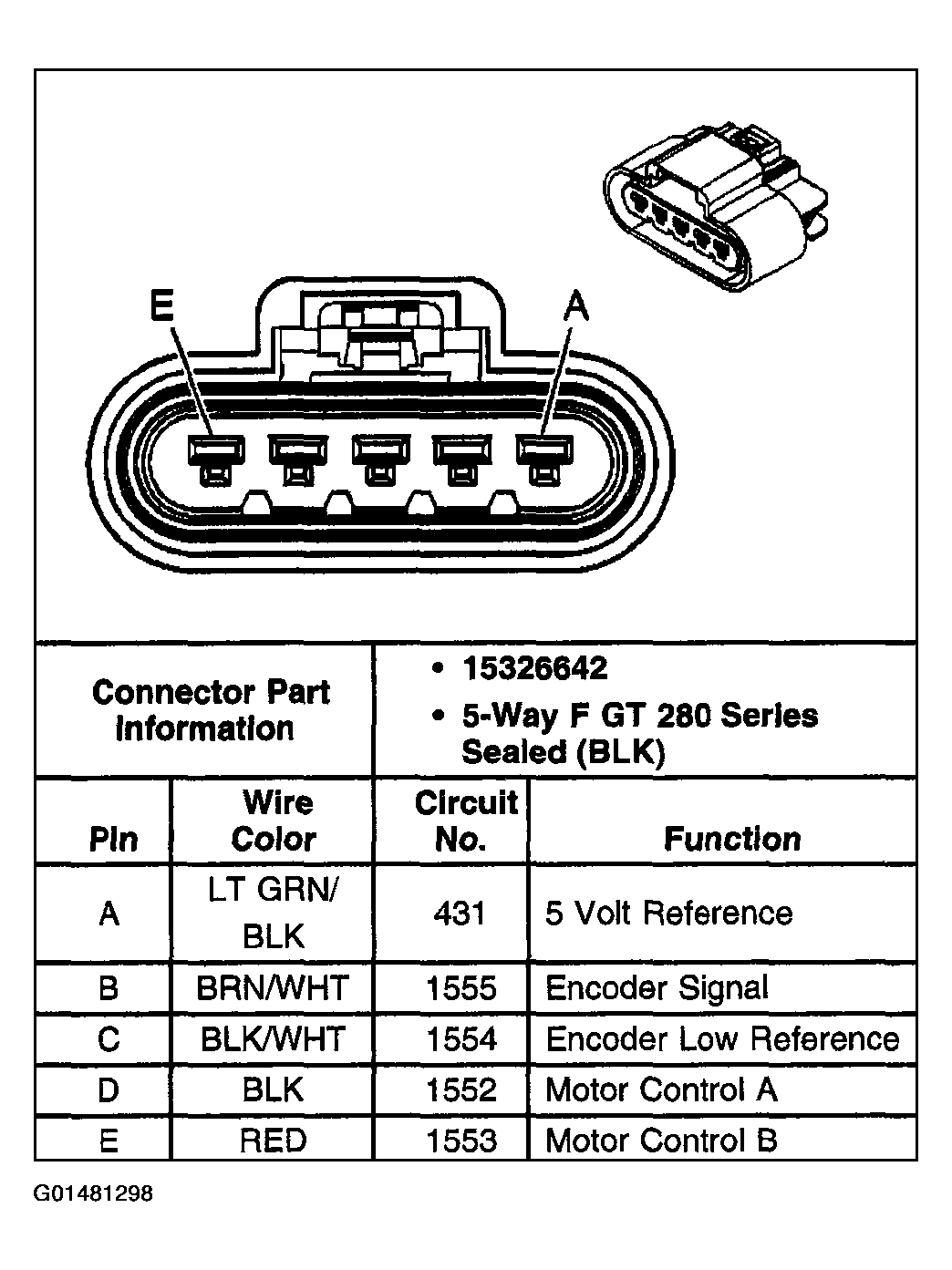

Fig 1: Transfer Case Encoder Motor Connector End View

G01481298

Courtesy of GENERAL MOTORS CORP.
