Home >> GMC >> 2003 >> Sierra 1500 HD, 4WD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Selectable Ride Switch Connector End View

Selectable Ride Switch Connector End View

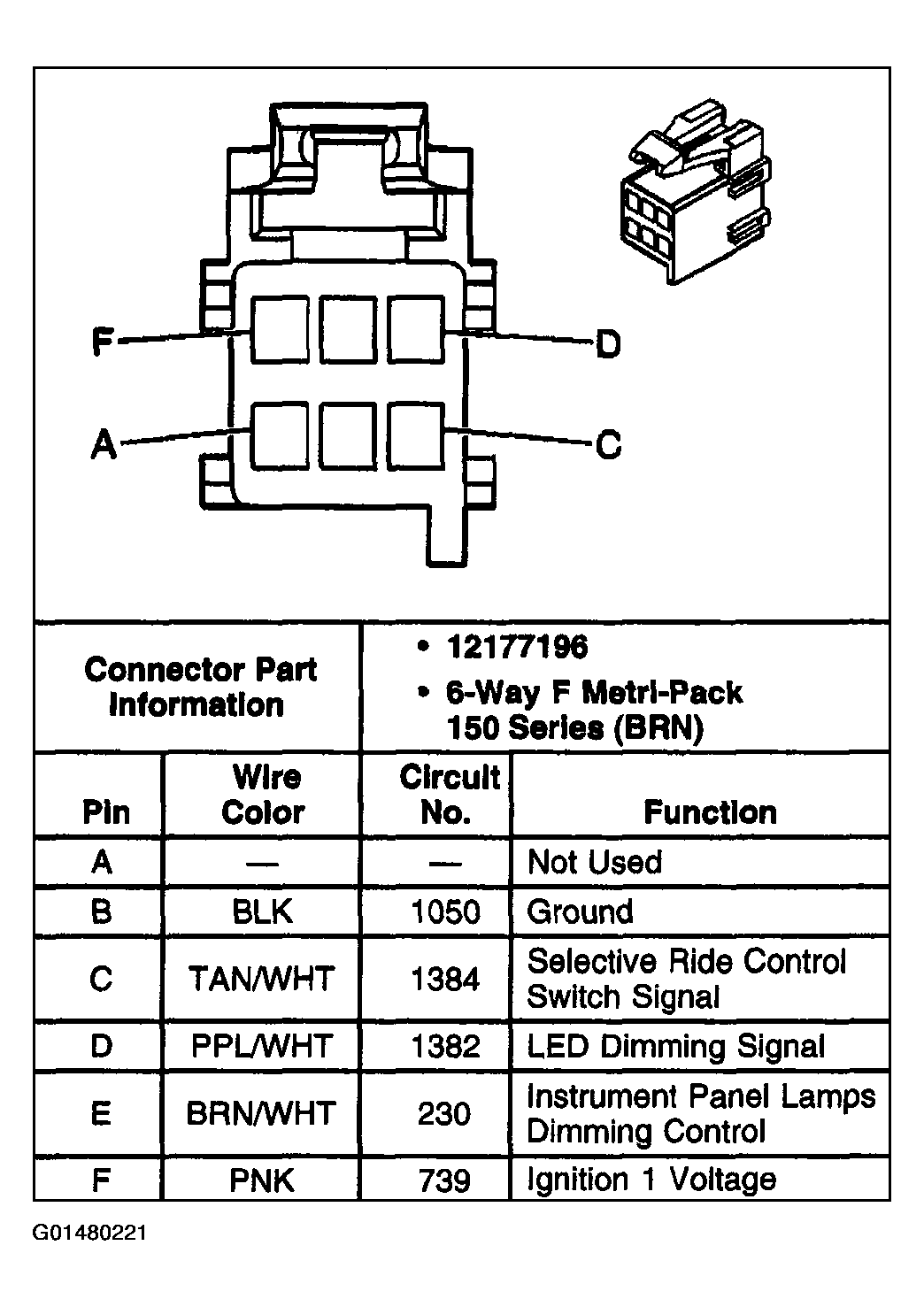

Fig 1: Selectable Ride Switch Connector End View

G01480221

Courtesy of GENERAL MOTORS CORP.
