Memory Seat Module-C1 Connector End View

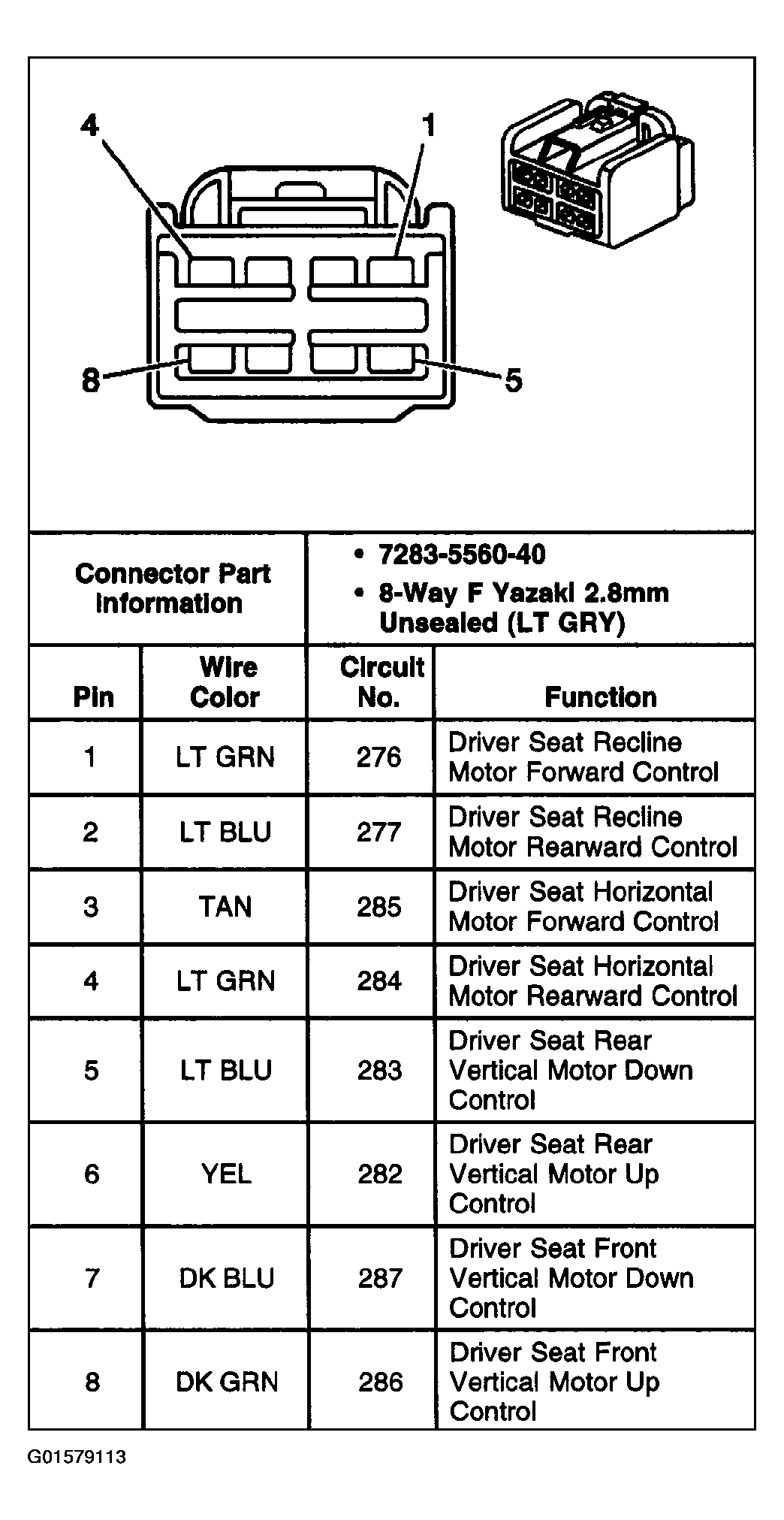

Fig 1: Memory Seat Module-C1 Connector End View
G01579113Courtesy of GENERAL MOTORS CORP.
