Installation Procedure

  1. Install a stationary window into the opening. Refer to Urethane Adhesive Installation Of Stationary Windows   .
  2. Install the window side reveal moldings to the vehicle.

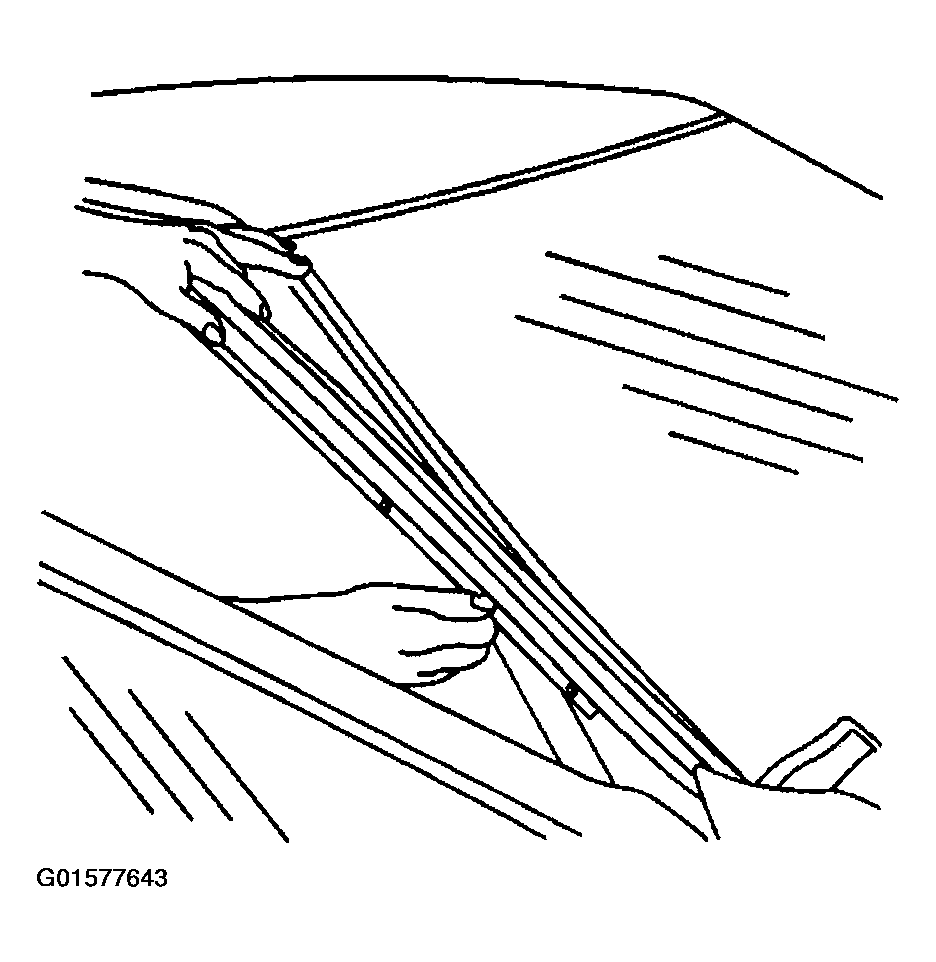

    Fig 1: Installing Window Side Reveal Moldings
    G01577643Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screws to the left and the right sides of the window side reveal moldings.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

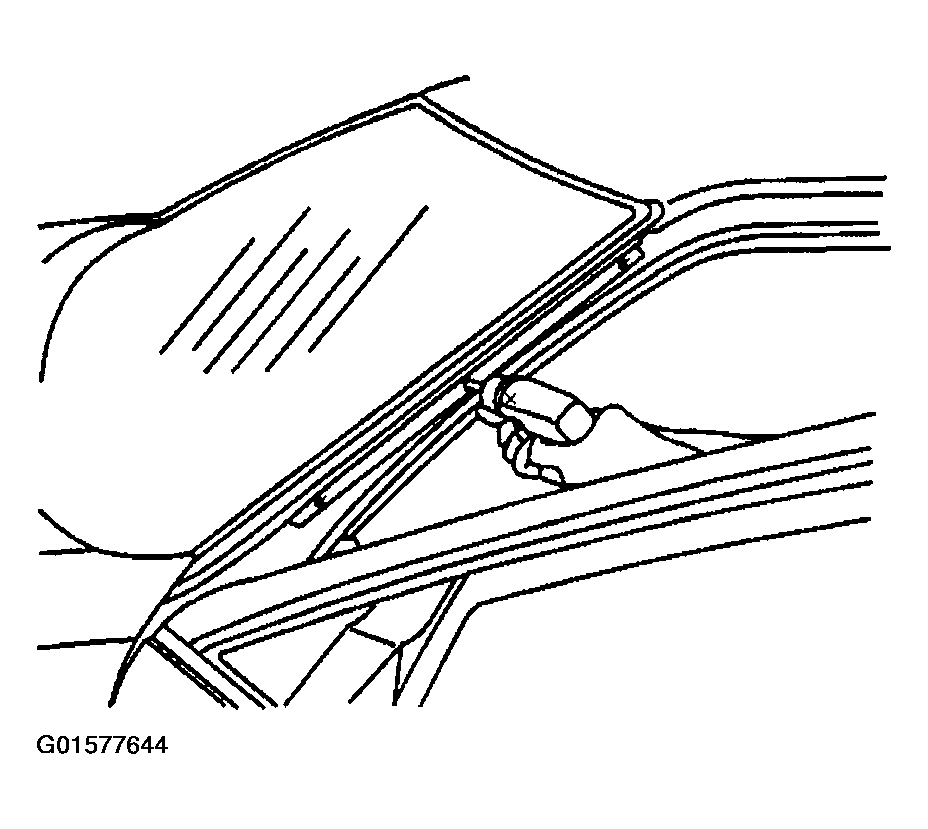

    Fig 2: Installing Screws To Window Side Reveal Moldings
    G01577644Courtesy of GENERAL MOTORS CORP.
  4. Install the front door sealing weatherstrips (1) to the retainer (2).
  5. Install the cowl air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  6. Install the window wiper arms. Refer to WIPER ARM REPLACEMENT .
  7. Install the antenna mast, if equipped. Refer to FIXED ANTENNA REPLACEMENT .
  8. Install the rearview mirror. Refer to Rearview Mirror Replacement   .
  9. Close the hood.
  10. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

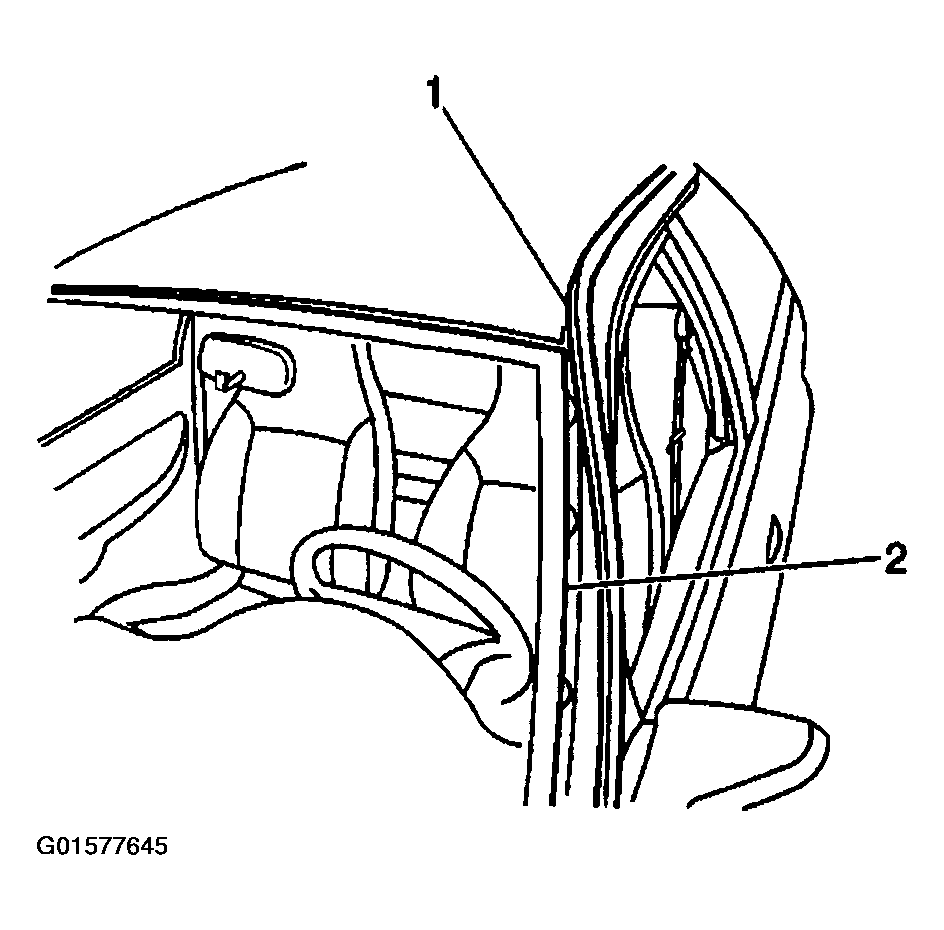

    Fig 3: Installing Front Door Sealing Weatherstrips To Retainer
    G01577645Courtesy of GENERAL MOTORS CORP.
